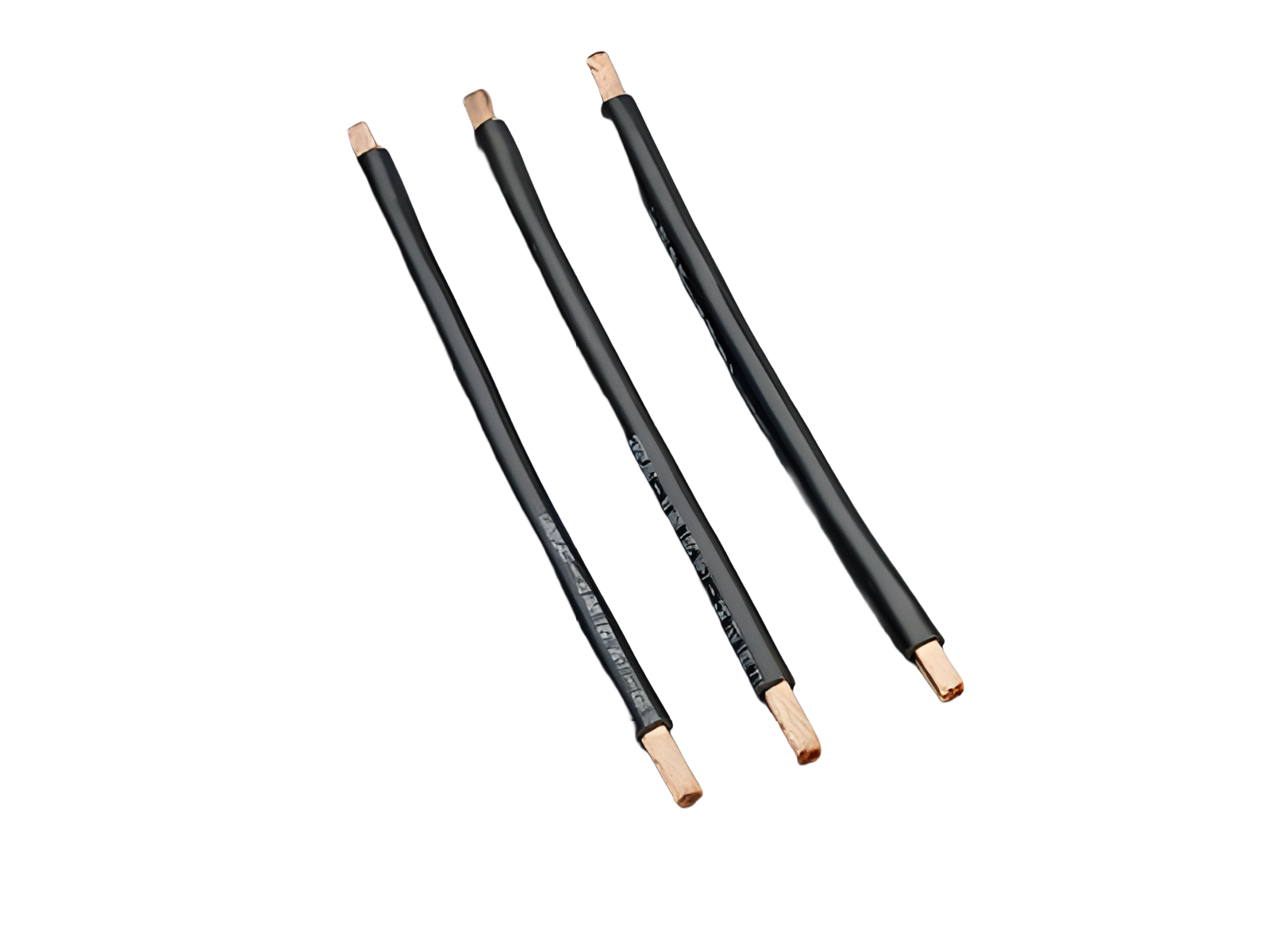

The picture may show a similar product.
Part No.: 32914000
lead AWG 4 (25 mm²), 210 mm long
System
60Classic
| Product group | 05 |
| Subgroup | 57 |
| pack size | 24 |
| EAN | 4021267329143 |
| Katalogseite US | US 2020 : 3.11 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2011
UL 758
Approvals
UL
for UL feeder circuits >250V
type number: style 1015
UL file: E140404, UL category (for USA): AVLV2 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2011 |
| Electrical data | |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1.1 W.
(The power dissipation at full load would be 1.7 W.)
| Details UL | |
| Standards | |
| UL 758 |
| for UL feeder circuits >250V |
| Mechanical data | |
| weight: | 5.1 kg/100 |
