Part No.: 37536 000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 50-300mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars 30, 40, 60, 80, 100, 120 x 10
coming soon
System
185Power
Advantages of the product
Self-closing inspection holes are available in the cover.
Cover can be locked when closed.
| Product group | 12 |
| Subgroup | 63 |
| pack size | 1 |
| EAN | 4021267375362 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
type number: QU185-1 Pre-Assembled
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 800 V |
| accuracy class (current): | 1 |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 12 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (800 V / 160 A) |
| Utilisation category DC (IEC 60947-3) : | DC-20B max. voltage between the fuses: 1000V visible information required: Do not switch under load. |
| cond. short-circuit current with fuses (AC): | 80 kA / 800 V (160 A) |
| 100 kA / 690 V (250 A) | |
| 120 kA / 500 V (250 A) | |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 15.4 W.
(The power dissipation at full load would be 24.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Besondere Betriebsbedingungen gemäß IEC / EN 61439-1 können zu Fehlauslösungen von Meldeschaltern oder Sicherungsüberwachungen führen. Die vorliegenden Betriebsbedingungen sind dementsprechend bei der Auswertung der Meldesignale zu berücksichtigen. | |
| Degree of protection IP20 at front, degree of protection near terminal depends on installation |
| Mechanical data | |
| W x H x D: | 100 x 687 x 189 |
| weight: | 543.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| front degree of protection: | IP20 |
| degree of protection when open: | IP10 |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled mounting with terminal clamp
| Terminal points | |
| v-clamp | |
| min. cross-section: | 50 mm² |
| max. cross-section: | 300 mm² |
| re: | 70 - 150 mm² |
| rm: | 50 - 120 mm² |
| se: | 35 - 240 mm² |
| sm: | 35 - 185 mm² |
|
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
| Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
|
The terminal compartment cover 33733 is always needed for the connection at top and when using cable lugs. |
|
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33740
000A
terminal clamp
for busbar systems without protection modules
size 1 - 3
More
33738
000A
CrossLink® terminal clamp
for busbar systems with CrossLink® touch-safe protection
size 1 - 3
More
33559
000B
V-clamp
with cover cap
terminal body alu, pressure piece brass
size 1-3
for Cu / Al 50 - 300 mm²
NEW
More
33733
000A

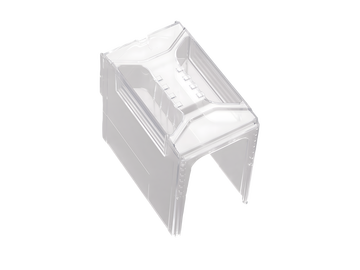

terminal compartment cover
universal for NH-rails size 1 - 3 and connection rail 800 A
size 1- 3
More
33758
000A
lateral bearing strip
for front covers
size 00 - 3
More
37902
000A

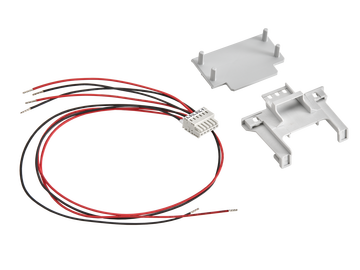

Connection kit LTL NH1-3 for RJ12 cable
spring strip with 6 x 0.5 mm² cables
for internal wiring of the transformers and connection of the RJ12 cable
NEW
More
37903
000A
Wago connector components
for independent assembly of RJ12 cables
NEW
More
37904
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 3.00 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More
37905
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 1.5 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More
37906
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 0.6 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More
37907
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 0.3 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More
33156
000
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
More
