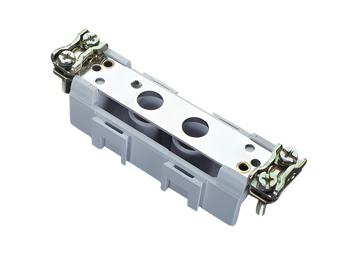

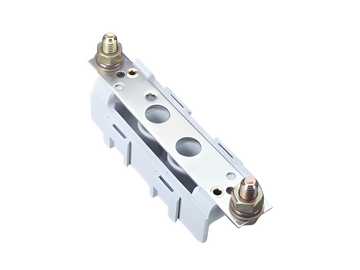

The picture may show a similar product.
Part No.: 03212000
QUADRON®Panel
NH fuse-base 160 A
both sides screw M8

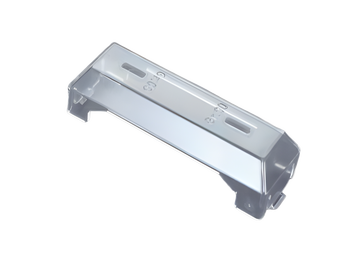

size 00 / 3P, with long touch protection cover
for mounting plate
System
Panel
Product group | 10 |
Subgroup | 15 |
pack size | 5 |
EAN | 4021267032128 |
ECLASS 6.1 | 27142106 |
ECLASS 7.1 | 27142106 |
ETIM 4.0 | EC000067 |
ETIM 5.0 | EC000067 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Approvals
DNV GL
type number: NH-00
for fuse links size: | NH 000, NH 00 |
fuse links acc. to standard: | IEC / HD 60269-2 |
permitted power dissipation of the fuse-link: | 12 W |
Details IEC | |
Standards | |
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
Electrical data IEC | |
Rated current (IEC): | 160 A |
rated voltage (IEC) AC: | 690 V |
rated voltage (IEC) DC: | 440 V |
rated surge voltage Uimp : | 6 kV |
short-circuit strength when protected by fuses: | 50 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8.0 W.
(The power dissipation at full load would be 12.5 W.)
Supplementary data IEC | |
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
max. permitted voltage (IEC) AC: | 800 V |
max. permitted voltage (IEC) DC: | 800 V |
for fuse links IEC 60269-2 / DIN VDE 0636-201 size 00 up to 12W power dissipation |
Mechanical data | |
W x H x D: | 99 x 200 x 88 |
weight: | 48.4 kg/100 |
poles: | 3-pole |
Mounting: | for mounting plate |
screw connection M8, 12 - 14Nm torque
Terminal points | |
screw connection | |
M8 | |
screw drive: | SW13 |
Not suitable for aluminium cables ! |
Not suitable for aluminium cables ! | |
permitted power dissipation of the fuse-link: | 12 W |
