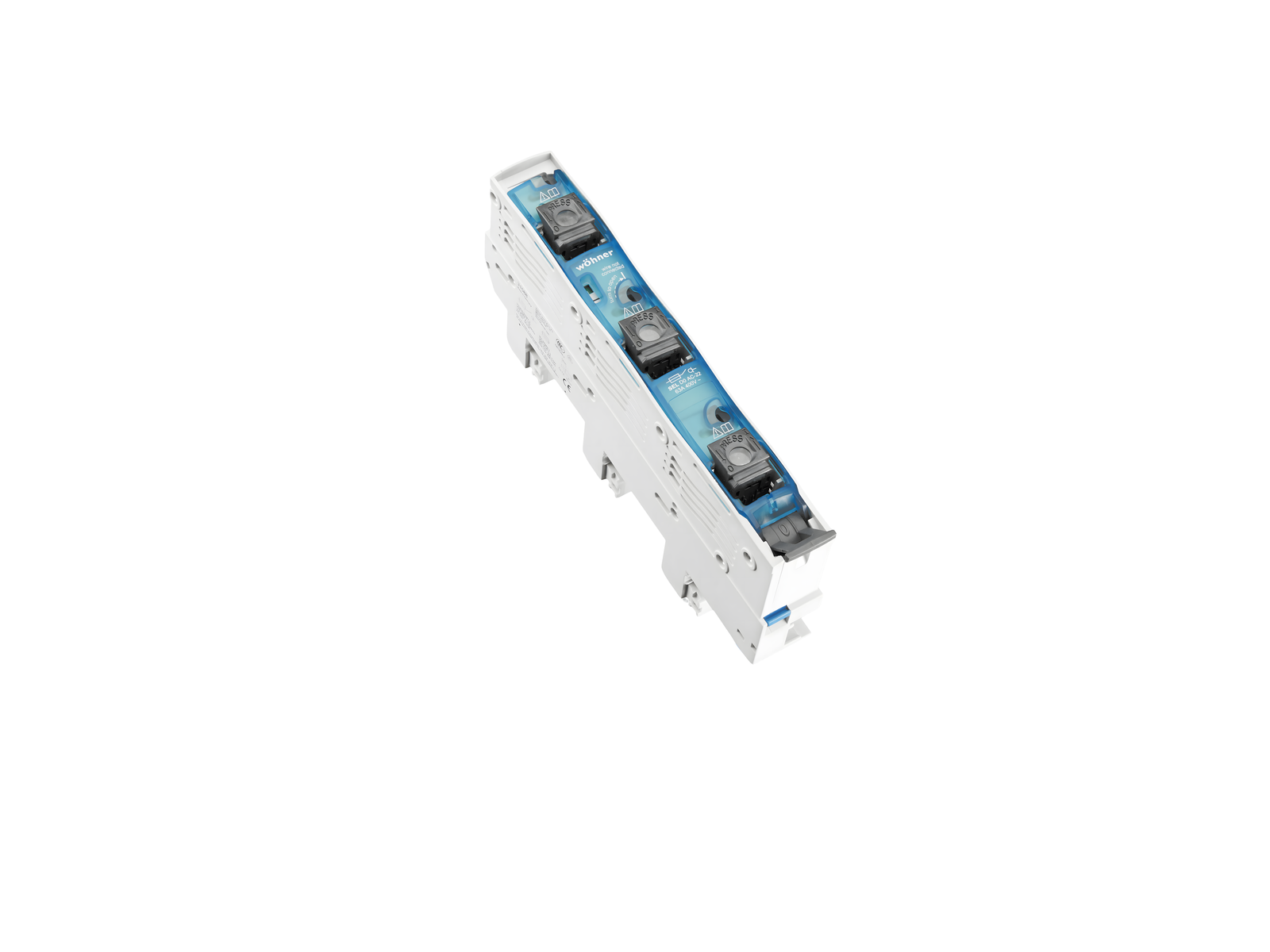

The picture may show a similar product.
Part No.: 31588000A
SECUR®60Classic EasyLiner
D0 switch-disconnector-fuse, for 5-pole busbar system
for D01 and D02 fuses, for busbar systems 250 A, 400 A and 630 A of company Hensel
E18 / 63 A / 3P
operator independent switching (snap-action mechanism)
connection bottom
for busbars 12, 20, 30 x 5, 10
System
60Classic
Advantages of the product
spring terminal enables connection without tools (at first installation)
Product group | 01 |
Subgroup | 42 |
pack size | 1 |
EAN | 4021267315887 |
catalog page | 2020 : 3.19 |
ECLASS 6.1 | 27142110 |
ECLASS 7.1 | 27142110 |
ETIM 4.0 | EC000277 |
ETIM 5.0 | EC000277 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , VDE , CCC
type number: SEL
CCC certificate: 2014010302710123
for fuse links size: | D0 |
fuse links acc. to standard: | IEC / HD 60269-3 |
permitted power dissipation of the fuse-link: | 5.5 W |
requirements for contact parts: | use fuse links with silver-plated contacts |
Details IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data IEC | |
Rated current (IEC): | 63 A |
rated voltage (IEC) AC: | 400 V |
rated frequency (IEC): | 50 / 60 Hz |
rated isolation voltage Ui AC: | 500 V |
rated surge voltage Uimp : | 6 kV |
Utilisation category AC (IEC 60947-3) : | AC-22B (400 V) |
cond. short-circuit current with fuses (AC): | 50 kA / 400 V |
approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 4.5 W.
(The power dissipation at full load would be 7.0 W.)
Supplementary data IEC | |
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
reduction factor at ambient temperature: 35°C 1,0 45°C 0,9 55°C 0,8 |
|
for fuse links and gauge elements acc. to IEC / HD 60269-3 use of D02 fuse links with silver plated caps is recommended |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
Mechanical data | |
W x H x D: | 27 x 200 x 80 |
weight: | 33.0 kg/100 |
poles: | 3-pole |
for busbars: | 12, 20, 30 x 5, 10 |
front degree of protection: | IP20 |
Terminal points | |
spring pulley connection | |
screw drive: | PZ2 |
wire stripping: | 12 mm |
min. cross-section: | 1.5 mm² |
max. cross-section: | 16 mm² |
Md min.: | 2.5 Nm |
Md max.: | 3.0 Nm |
Not suitable for aluminium cables ! | |
1,5 - 16 mm² round stranded and flexible without wire-end ferrule |
Reference
The devices have to be equipped with D0 gauge rings. Together with reducer part no. 31902 also suitable for fuse links D01.
The use of the side module part no. 31914 is recommended for continuous loads of 35 A or greater..
use of D02 fuse links with silver plated caps is required
can be locked (padlock) in OFF position (O) and sealed in ON position (1)
can be used in 5-pole busbar systems 250 A, 400 A and 630 A of company Hensel.
