holder for cylindrical fuses (31295)

The picture may show a similar product.

Description

Part No.: 31295 000

AMBUS®Panel

holder for cylindrical fuses

Size Class CC

Class CC / 1P

30 A / 600 V

for mounting rail

System

Panel

Advantages of the product

large clamping range, also for two identical conductors (adjacent)
holder for label

Product group 17
Subgroup 07
pack size 12
EAN 4021267312954
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J

UL 4248-1

UL 4248-4

Approvals

CSA , UL , CCC

for UL feeder circuits >250V

type number: AESCC

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

CCC certificate: 21107299296

Technical data

for fuse links size: Class CC
fuse links acc. to standard: UL 248-4
permitted power dissipation of the fuse-link: 4 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.2 W.

(The power dissipation at full load would be 0.3 W.)

Details UL
Standards
UL 4248-1
UL 4248-4
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 30 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
SCCR: 200 kA
Mechanical data

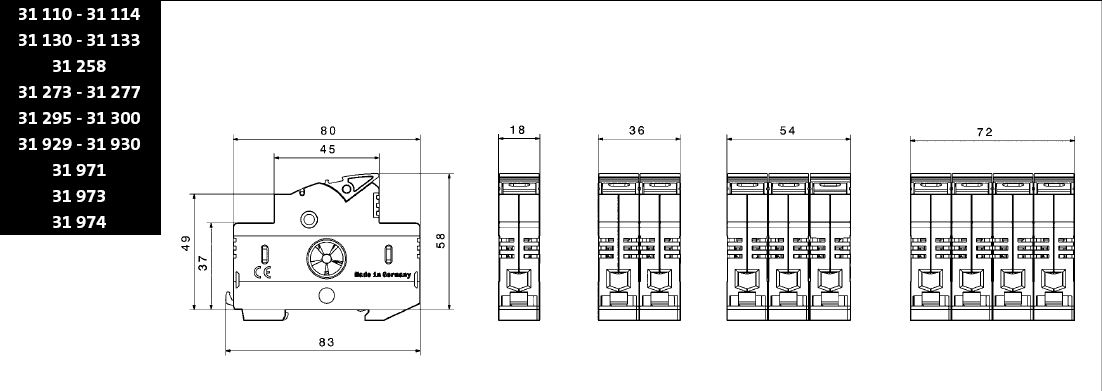

W x H x D: 18 x 81 x 58
weight: 5.5 kg/100
poles: 1-pole
Mounting: for mounting rail
degree of protection: IP20
front degree of protection: IP20
Terminal points
cage clamp connection
screw drive: PZ2
wire stripping: 11 mm
min. cross-section: 0.75 mm²
max. cross-section: 25 mm²
Md min.: 2.0 Nm
Md max.: 2.5 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 18
max. cross-section UL: AWG 4


for applications acc. to IEC / EN :
1 wire :
Cu 0,75 - 25 mm²
2 wires (of same cross-section) :
Cu 0,75 - 10 mm²
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)
Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E 60°C/75°C
1 wire :
AWG 18 - AWG 8, Class B, Md 2,0 -2,5 Nm / 18 - 22 lb.in.
AWG 6 - AWG 4, Class C, Md 2,5 - 3,0 Nm / 22 - 26 lb.in.
2 wires (of identical cross-section) :
AWG 18 - AWG 8, Class B, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.
AWG 6, Class C, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

Application notes

Not suitable for aluminium cables !
permitted power dissipation of the fuse-link: 4 W
for UL feeder circuits >250V
