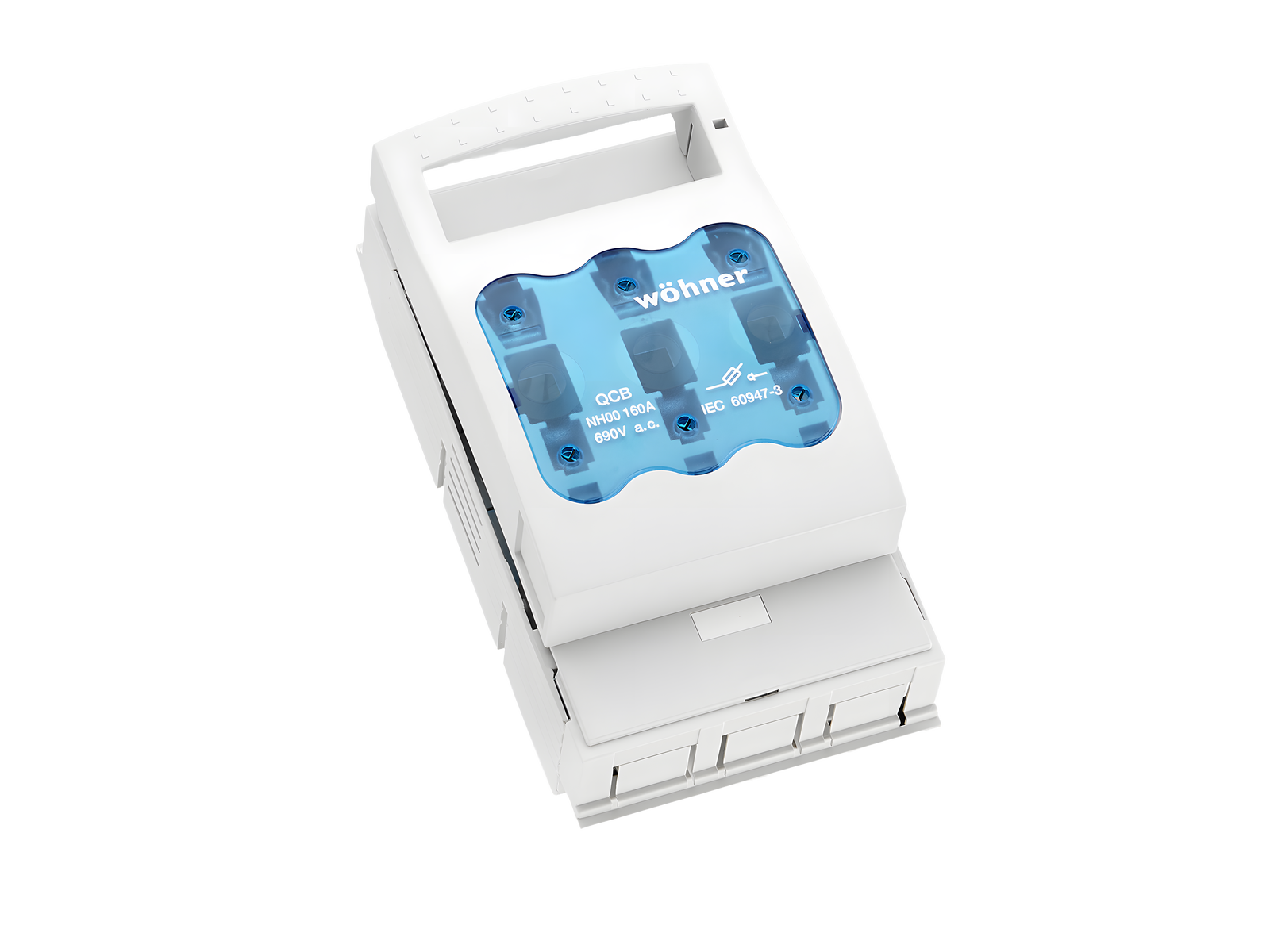

NH fuse-switch-disconnector size 00, 160 A (33079)

The picture may show a similar product.

Description

Part No.: 33079 000

QUADRON®60Classic

NH fuse-switch-disconnector size 00, 160 A

screw M8

suitable for 5-pole system

connection top or bottom

for busbars 12, 15, 20, 25, 30 x 5, 10

System

60Classic

Product group 09
Subgroup 24
pack size 1
EAN 4021267330798
ECLASS 6.1 27142108
ECLASS 7.1 27142108
ETIM 4.0 EC001040
ETIM 5.0 EC001040

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , UL , VDE , CCC

for UL feeder circuits >250V

type number: QCB-NH00

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

CCC certificate: 2010010302403934

Technical data

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 160 A
rated voltage (IEC) AC: 690 V
rated voltage (IEC) DC: 440 V
rated isolation voltage Ui AC: 800 V
rated isolation voltage Ui DC: 500 V
rated surge voltage Uimp : 6 kV
cond. short-circuit current with fuses (AC): 50 kA / 690 V
80 kA / 500 V (160 A)
approved wth fuse links of operation class: gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 11.3 W.

(The power dissipation at full load would be 17.7 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) DC: 800 V
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage.

Bei Dauerbetrieb von mehreren Geräten nebeneinander ist der Bemessungsbelastungsfaktor nach VDE 0660 Teil 500 / EN60439-1, Tabelle 1 zu beachten.
System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation
adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe)
Details UL
Standards
UL 4248-1
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 160 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR: 100 kA
Mechanical data
W x H x D: 106 x 200 x 97
weight: 100.0 kg/100
poles: 3-pole
for busbars: 12, 15, 20, 25, 30 x 5, 10
front degree of protection: IP30

Busbar connection:
externally tensioned contacting,
convenient click mechanism,
simple conversion of the combination bases from 5 to 10mm-thick busbars

Terminal points
screw connection
M8
Md min.: 12.0 Nm
Md max.: 14.0 Nm

Application notes

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
for UL feeder circuits >250V

Links

Downloads

Accessories

connection accessories

01182 000
tunnel terminal for screw connection M8
1x 2.5 - 16 mm² + 2x 2.5 - 25 mm²
NH 00
More

33224 000
prism terminal, single, for Cu cables
16 - 70 mm²
NH 00
More

79811 000
cover for cable lugs, top / bottom attachable
NH 00
for: 33200, 33208, 33329, 33394, 33398, 33420
More

covers

33315 000
trim cover, 2 parts
for NH-LTS size 00
size 00
More

33317 000
trim strip, attachable at side
for NH-LTS size 00
size 00
More

78105 000
trim frame, double
232 x 210, not for 33221, 33222
size 00
More

78893 000
trim frame, single
130 x 210, not for 33221, 33222
size 00
More

further accessories

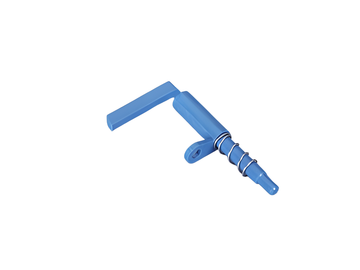

03849 000
lid interlock
for sealing wire
Size 00
More

33156 000
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
More
