The picture may show a similar product.
Part No.: 01376000

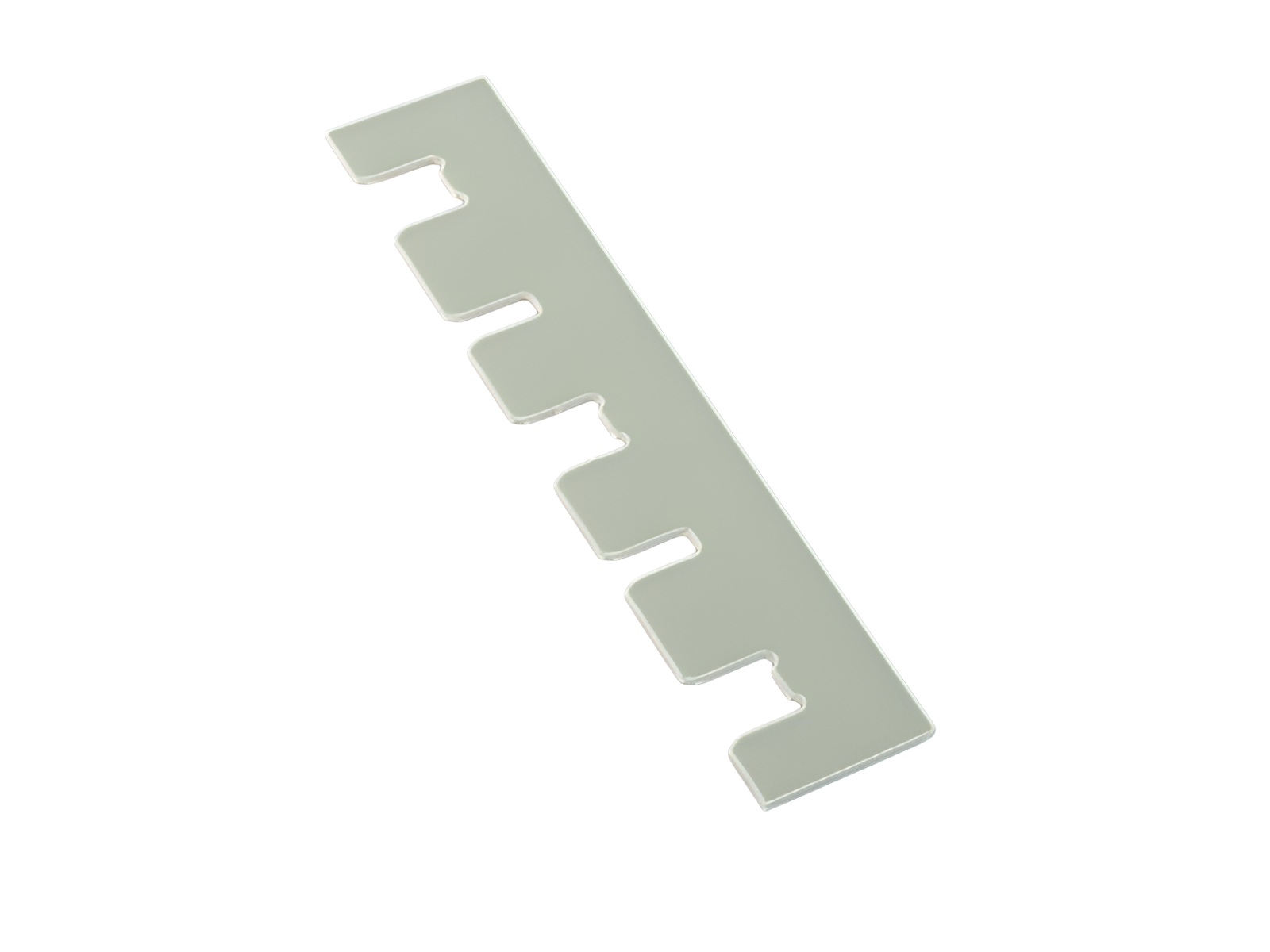

intermediate busbar brace
to increase the mechanical strength
2 mm
for busbars 12 x 5
System
30Compact 3P, 30Compact 5P
Advantages of the product
high mechanical strength with greatly reduced space requirement compared to busbar support 01 272
Product group | 06 |
Subgroup | 30 |
pack size | 10 |
EAN | 4021267013769 |
ECLASS 6.1 | 27370390 |
ECLASS 7.1 | 27370390 |
ETIM 4.0 | EC002498 |
ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
Details IEC | |
Standards | |
IEC 61439-1:2020 |
Mechanical data | |
W x H x D: | 2 x 160 x 47 |
weight: | 1.5 kg/100 |
for busbars: | 12 x 5 |
Reference |
necessary in the 4 and 5-pole 60mm-System compact to prevent the N and PE busbars from bending |
