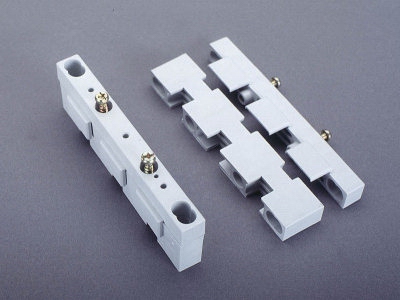

The picture may show a similar product.
Part No.: 01774 000
busbar support
3-pole, with internal screw holes
for busbars 12 x 5, 10
no longer available
Advantages of the product
With internal screw holes
can also be used as centre support.
| Product group | 06 |
| Subgroup | 15 |
| pack size | 10 |
| EAN | 4021267017743 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL
type number: 497
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 690 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Short-circuit withstand rating: surge current strength > 34kA at busbar support separation of 400mm surge current strength > 45kA at busbar support separation of 200mm further values in the short-circuit withstand rating diagram |
| Details UL | |
| Standards | |
| UL 508 |
| Electrical data UL | |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 15 x 140 x 41 |
| weight: | 9.3 kg/100 |
| poles: | 3-pole |
| for busbars: | 12 x 5, 10 |
Tightening torque of the screws: 4 Nm
