for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 01069 000

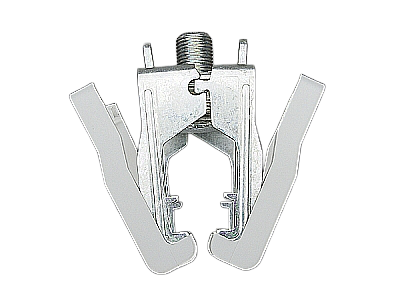

CRITO®
brace terminal
160 - 1000 mm²
terminal space 55 x 28
for busbars 30 x 10 and section busbars
System
60Classic, centre feed unit, 100Energy
Advantages of the product
also rigid copper busbars can be connected if they are installed without mechnical tension
| Product group | 07 |
| Subgroup | 30 |
| pack size | 3 |
| EAN | 4021267010690 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: CPC50-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 1600 A |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 72.7 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 26.1 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current carrying capacity for centre feed: | 2,000 A |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 1200 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 30 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 200 kA |
| SCCR: |
65 kA with any DIVQ/7 circuit breaker 1600 A / 480 V AC/DC
200 kA with fuse Class L 1600 A |
| Mechanical data | |
| W x H x D: | 72 x 52 x 87 |
| weight: | 50.0 kg/100 |
| for busbars: | 30 x 10 and section busbars |
| Terminal points | |
| screw clamp connection | |
| screw drive: | S8 |
| min. cross-section: | 160 mm² |
| max. cross-section: | 1,000 mm² |
| Md min.: | 12.0 Nm |
| Md max.: | 18.0 Nm |
| Not suitable for aluminium cables ! | |
| Terminal space: | 55 x 10 - 28 |
| lam. Cu width: | 32 - 50 mm |
| lam. Cu thickness: | 5 - 10 mm |
| number of lam. Cu: | |
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
|
the terminal is able to connect flexible copper 32 x 10 in longitudinal direction |
|
| for UL feeder circuits >250V |
01136
000
set of holders for cover sections
for 3-pole busbar systems
set consisting of left and right holder, for covers 01554, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
01137
000
set of holders for cover sections
for 4-pole busbar systems
set consisting of left and right holder, for covers 01599, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
01539
000
cover cap, 3-pole
180 mm wide
180 x 200 x 90
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
01554
000
compartment section, for 3-pole systems
front mounted, 1.10 m long, for holder 01136
3 x 190 x 1100
More
01555
000
cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
More
01596
000
cover cap, 3-pole
228 mm wide
228 x 200 x 90
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
01597
000

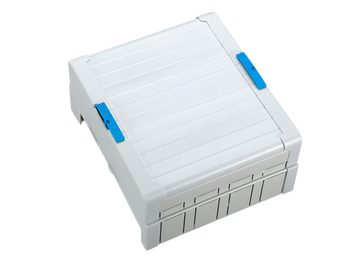

cover cap, 4-pole
