for UL feeder circuits >250V

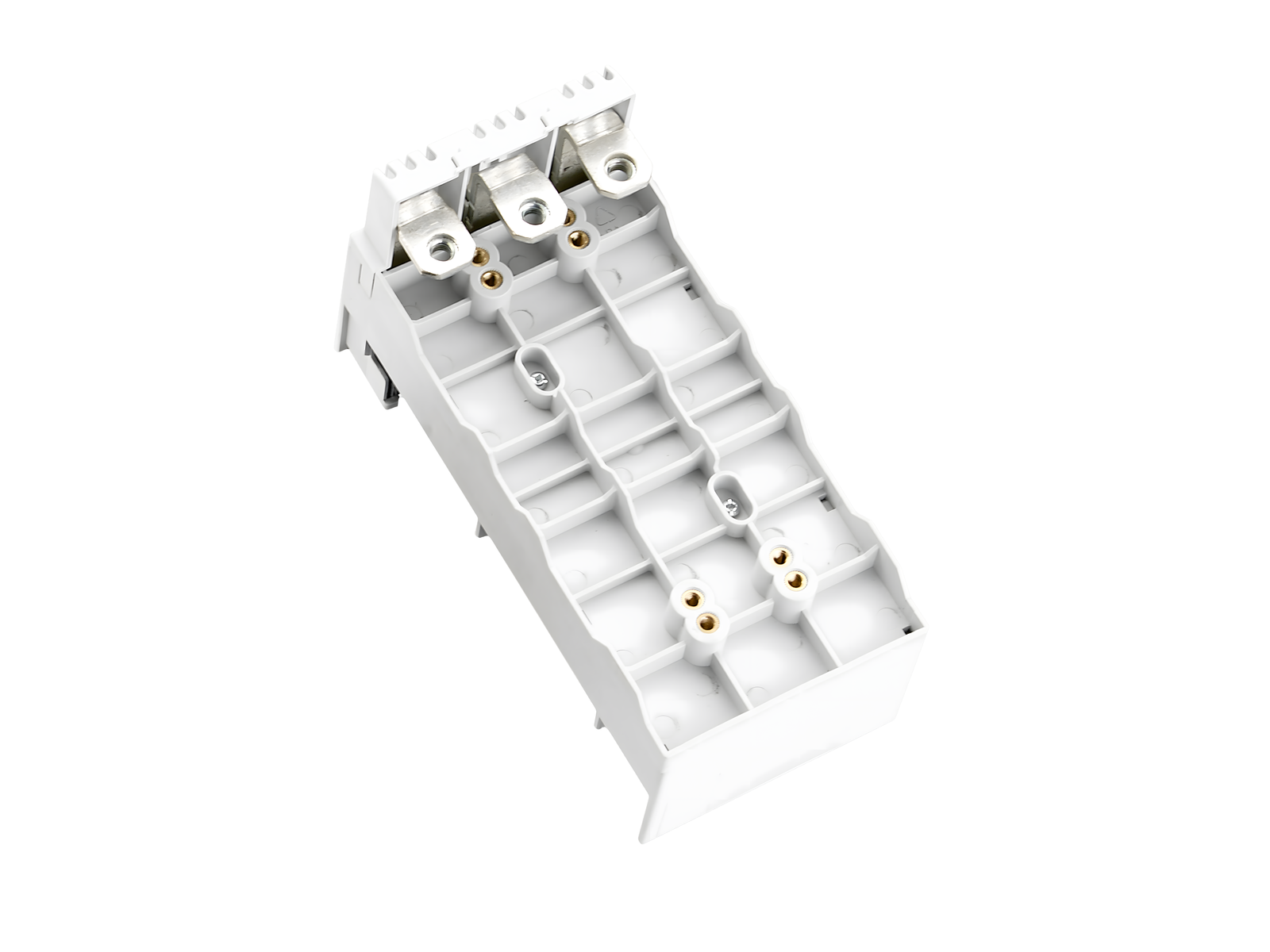

The picture may show a similar product.
Part No.: 32661000A
EQUES®30Compact
busbar adapter 144 A, 3-pole
76 x 160
for Siemens 3VA10, 3VA11
for busbars 12 x 5, 10
System
30Compact 3P
| Product group | 05 |
| Subgroup | 30 |
| pack size | 1 |
| EAN | 4021267326616 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Rated current (IEC): | 144 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7.7 W.
(The power dissipation at full load would be 12.0 W.)
| Mechanical data | |
| W x H x D: | 76 x 160 x 98 |
| weight: | 78.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12 x 5, 10 |
| short-circuit withstandability: | the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
