for UL feeder circuits >250V

insulator (05779)

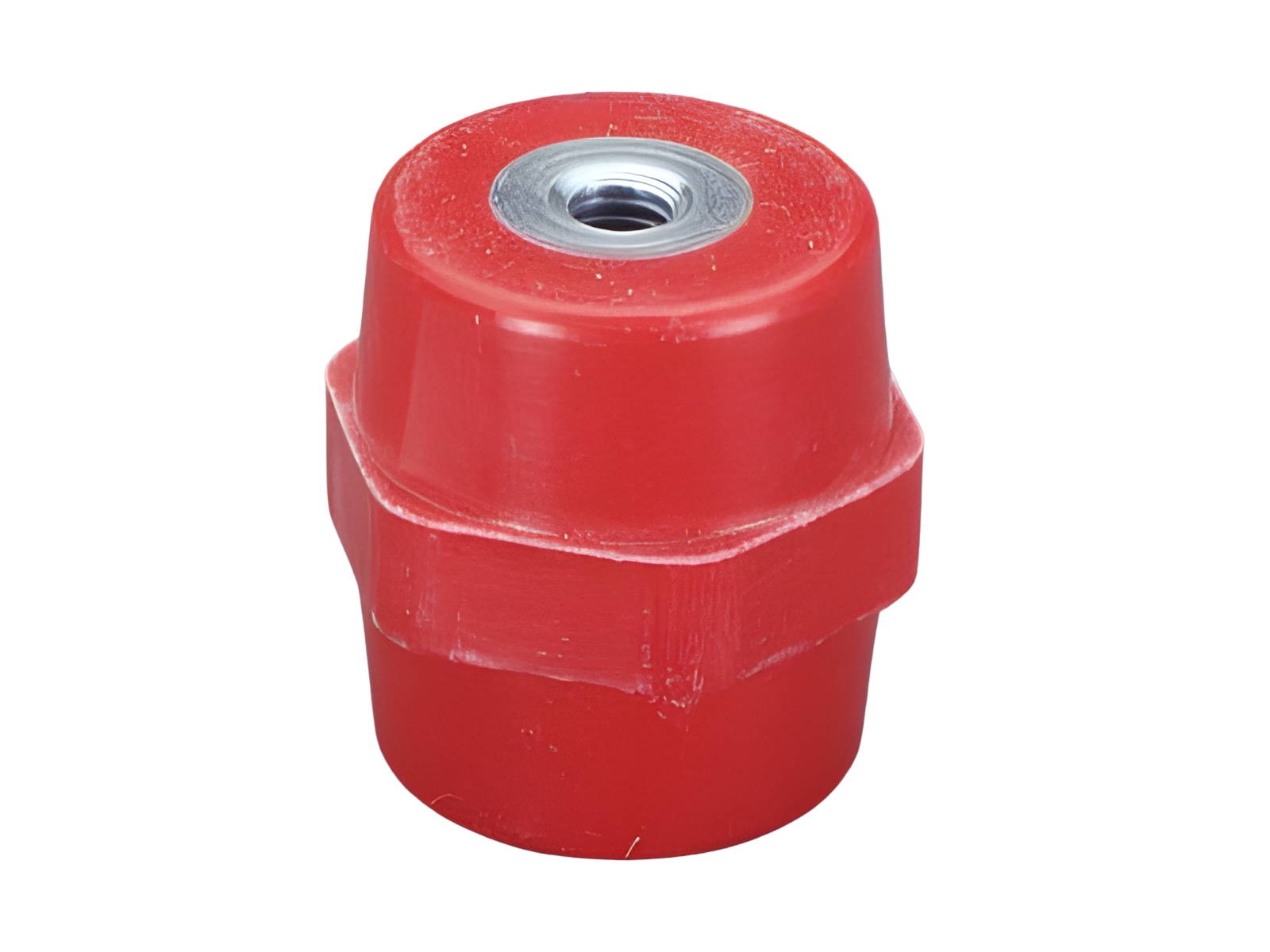

The picture may show a similar product.

Description

Part No.: 05779000A

insulator

with female thread at both sides, length across flats 20

M6 x 20

NEW

Product group 06
Subgroup 89
pack size 100
EAN 4021267057794
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 600 V
rated voltage (IEC) DC: 600 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D: 20 x 20 x 20
weight: 1.2 kg/100
Terminal points
female thread
M6

Application notes

Reference

The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.
short-circuit withstandability: no data
