for UL feeder circuits >250V

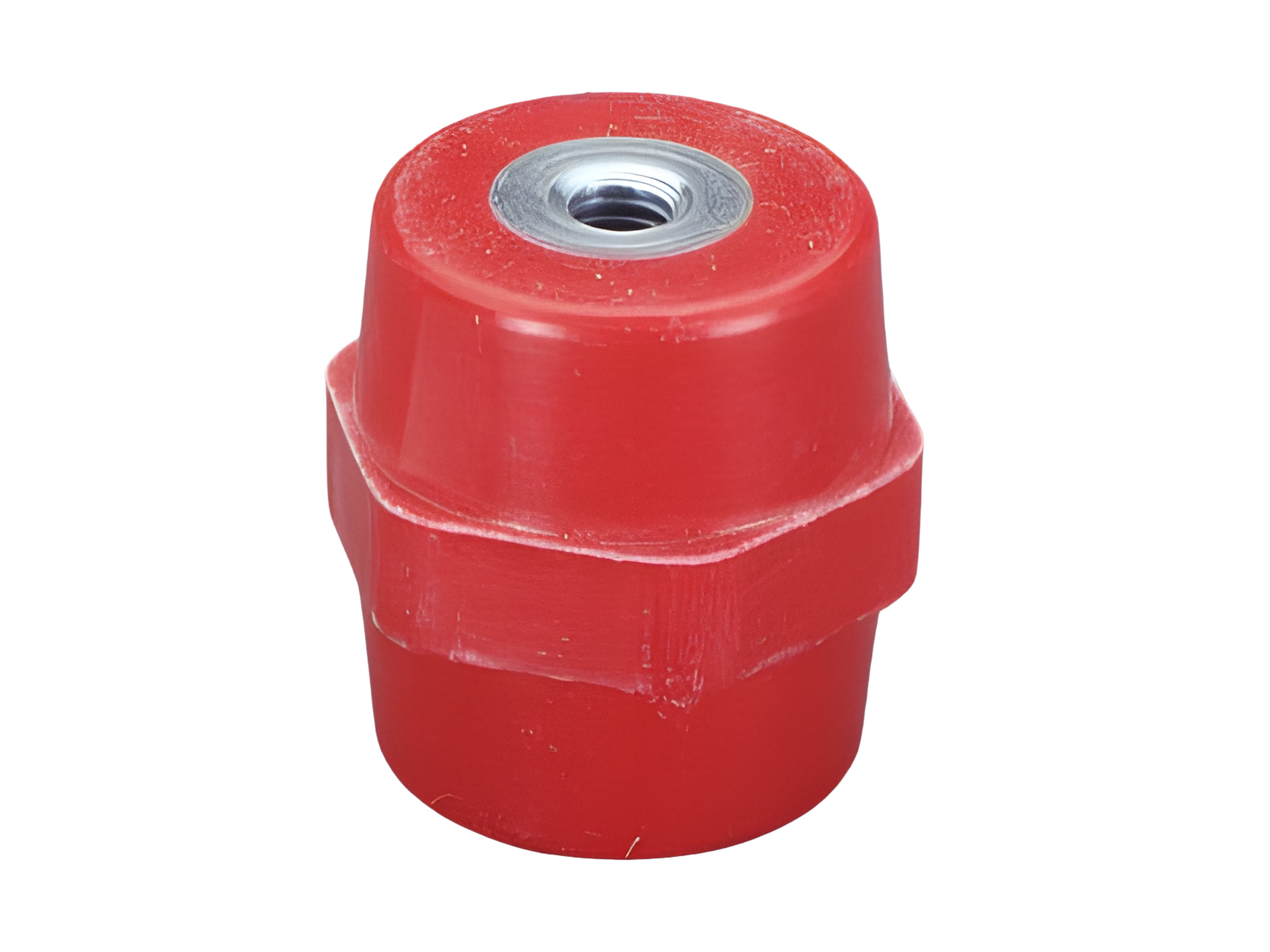

insulator (05789)

The picture may show a similar product.

Description

Part No.: 05789000

insulator

with female thread at both sides, length across flats 40

M10 x 60

Product group 06
Subgroup 89
pack size 20
EAN 4021267057893
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 3000 V
rated voltage (IEC) DC: 3000 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D: 40 x 40 x 60
weight: 16.2 kg/100
Terminal points
female thread
M10

Application notes

Reference

The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.
short-circuit withstandability: no data
