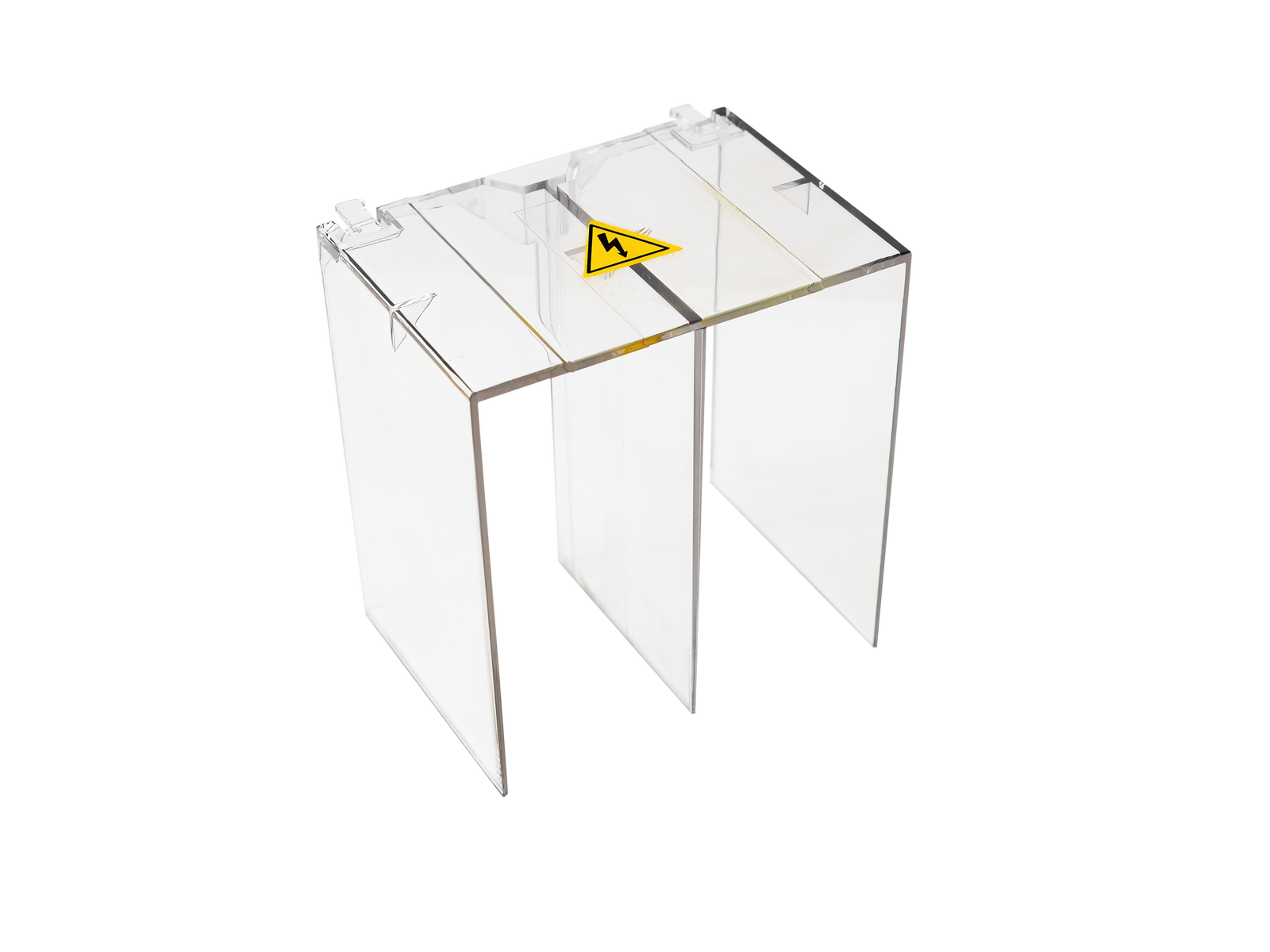

connection space cover, top / bottom attachable

The picture may show a similar product.

Description

Part No.: 23961 000AD

connection space cover, top / bottom attachable

for covering all terminals at one side of the switch, transparent

for 2P

for Capus DC Switch

coming soon

Product group 14
Subgroup 51
pack size 4
EAN 4021267239619
ECLASS 14.0 27371492
ETIM 5.0 EC002498
ETIM 8.0 EC002498
ETIM 10.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020

EAC Type: AC-A

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020
Mechanical data
weight: 88,0 kg/100
Material properties
halogen-free: Yes

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF) - draft

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf) - draft

| Text for specification - standard version (*.rtf) - draft

Usage

23050 000AD
CAPUS Panel
switch-disconnector 2-pole
screw M12
500 A
UL version
for mounting plate
coming soon
More

23051 000AD
CAPUS Panel
switch-disconnector 2-pole
screw M10
400 A
UL version
for mounting plate
coming soon
More

23052 000AD
CAPUS Panel
switch-disconnector 2-pole
screw M12
500 A
IEC version
for mounting plate
NEW
More

23053 000AD
CAPUS Panel
switch-disconnector 2-pole
screw M10
400 A
IEC version
for mounting plate
NEW
More
