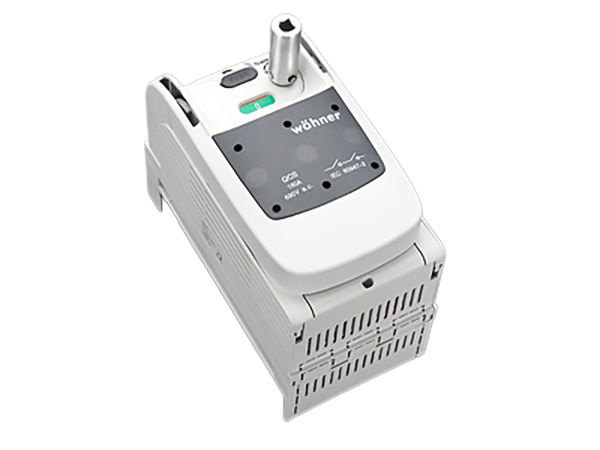

The picture may show a similar product.
Part No.: 33544000
QUADRON®60Classic Speed
switch-disconnector 3-pole
box terminal, connection top, for door coupling rotary handle
160 A
double-breaking
operator independent switching (snap-action mechanism)
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the door coupling twist handle
Main switch and Emergency Off switch only in combination with AC-23A/B
AC-23B (690V/125A), AC-23A (500V/125A)
CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars
Switches can be installed 90° left/right horizontal, always with the same switch handle position
Compact dimensions (106mm wide)
Product group | 14 |
Subgroup | 20 |
pack size | 1 |
EAN | 4021267335441 |
catalog page | 2020 : 3.27 |
ECLASS 6.1 | 27371403 |
ECLASS 7.1 | 27371403 |
ETIM 4.0 | EC000216 |
ETIM 5.0 | EC000216 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
type number: QCS-160
Details IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data IEC | |
Rated current (IEC): | 160 A |
rated voltage (IEC) AC: | 690 V |
rated isolation voltage Ui AC: | 800 V |
rated surge voltage Uimp : | 8 kV |
Utilisation category AC (IEC 60947-3) : | AC-23B (690V/125A) AC-23A (500V/125A) AC-22A (690V/160A) |
Utilisation category DC (IEC 60947-3) : | 2 current paths (L1,L3) in series DC-22B (220V/125A) |
rated short-time withstand current Icw (1.0 s) max.: | 4.5 kA |
rated short-circuit making capacity 7kA (690V AC) cond. rated short-circuit current 50kA (fuses gL/gG size 00 125A-690V AC) utilisation categories AC-23B (690V/125A), AC-23A (500V/125A), AC-22A (690V/160A) DC-22B (220V/125A), 2 current paths (L1,L3) in series; | |
Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed. | |
System component: degree of protection IP20 at front as per DIN EN 60529, degree of protection near terminal depends on installation; shock protection as per DIN EN 50274 adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
Mechanical data | |
W x H x D: | 106 x 200 x 155 |
weight: | 208.0 kg/100 |
poles: | 3-pole |
for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
Terminal points | |
Not suitable for aluminium cables ! | |
Box terminal: |
