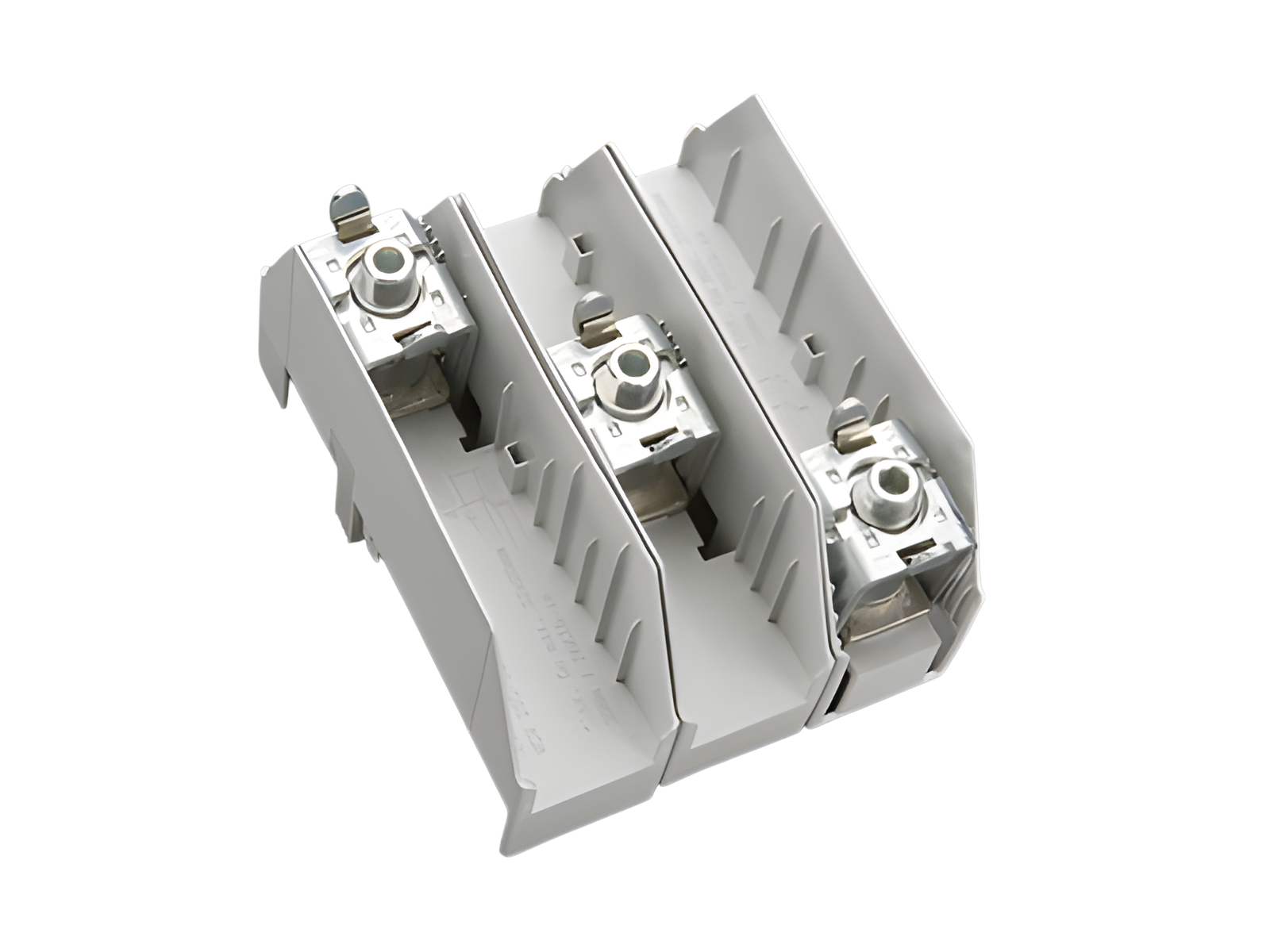

The picture may show a similar product.
Part No.: 01538 000
CRITO®60Classic
connection set, 3-pole, without cover
for busbars 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 07 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267015381 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
CSA , UL
for UL feeder circuits >250V
type number: M3210-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| rated current (IEC): | 550 A |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 67.4 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 800 A |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 640 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 25 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 200 kA |
| SCCR: |
65 kA with any DIVQ/7 circuit breaker 800 A / 480 V AC
200 kA with fuse JDDZ Class J 600 A / 600 V AC 200 kA with JDDZ fuse Class L 800 A / 600 V AC |
| Mechanical data | |
| W x H x D: | 153 x 184 x 115 |
| weight: | 132.5 kg/100 |
| poles: | 3-pole |
| for busbars: | 20, 25, 30 x 5, 10 and section busbars |
| Terminal points | |
| Md min.: | 24.0 Nm |
| Md max.: | 36.0 Nm |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 20 - 32 mm |
| lam. Cu thickness: | 3 - 15 mm |
| number of lam. Cu: | 1 |
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
| for UL feeder circuits >250V |
01539
000
cover cap, 3-pole
180 mm wide
180 x 200 x 90
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
01540
000
cover cap, 3-pole
250 mm wide
250 x 200 x 90
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
01554
000
compartment section, for 3-pole systems
front mounted, 1.10 m long, for holder 01136
3 x 190 x 1100
More
01555
000
cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
More
01417
000
cover section
top / bottom, slotted, 1.10 m long, for holders 01136 or 01137
3 x 118 x 1100
More
01136
000
set of holders for cover sections
for 3-pole busbar systems
set consisting of left and right holder, for covers 01554, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
