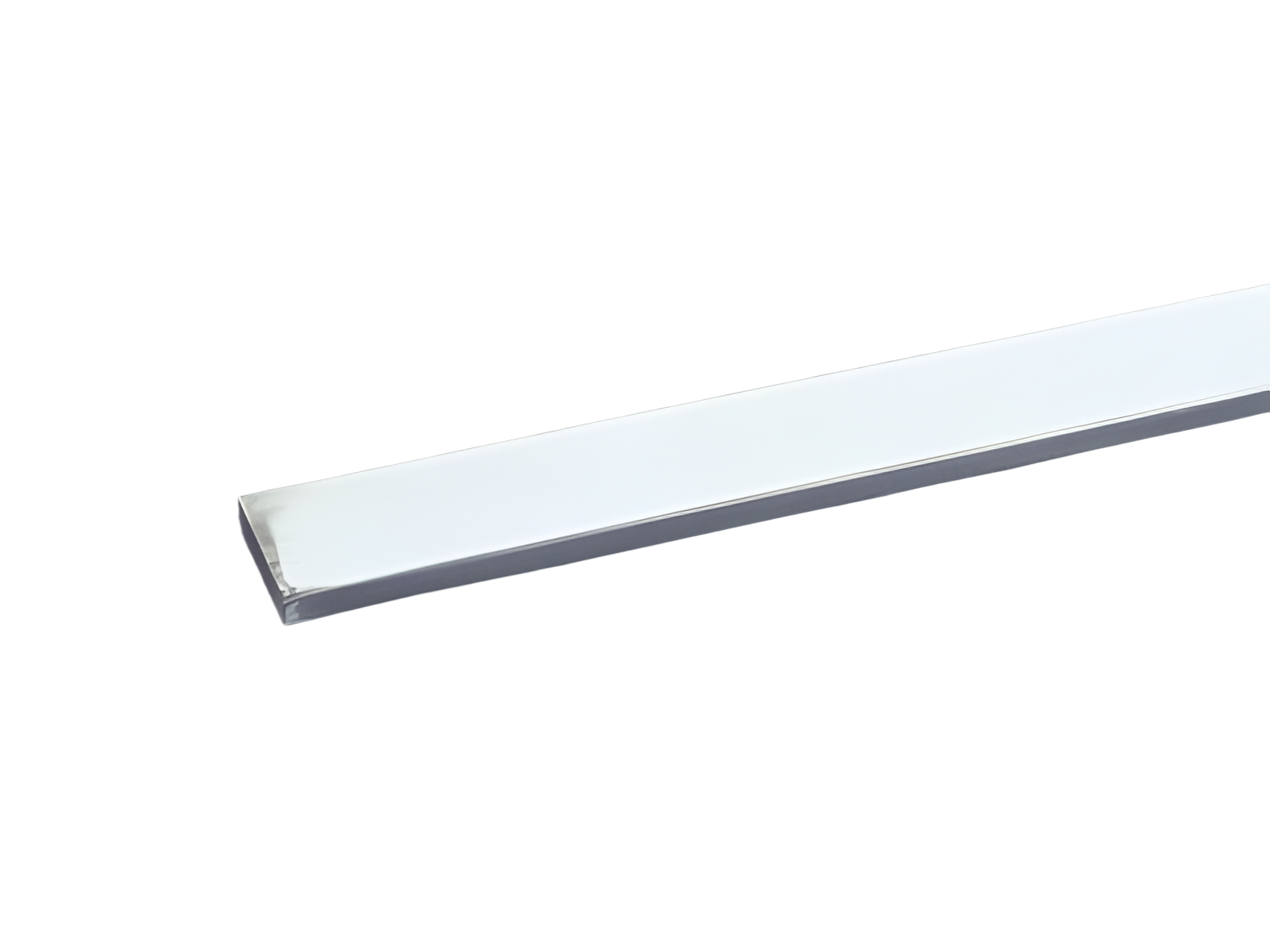

The picture may show a similar product.
Part No.: 01627 000
busbar 50 x 10
material: copper Cu-ETP (No. CW004A) acc. to EN 13601 (99.9% copper), strength class R300 (300 N/mm²)
length 2.40 m, tinned
System
100Energy
Advantages of the product
Tin-plated Cu busbars considerably reduce the effort of preparing the contact points.
The Cu busbars are effective protected against aggressive media.
| Product group | 06 |
| Subgroup | 84 |
| pack size | 1 |
| EAN | 4021267016272 |
| ECLASS 6.1 | 27370303 |
| ECLASS 7.1 | 27370303 |
| ETIM 4.0 | EC001522 |
| ETIM 5.0 | EC001522 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 55.0 W.
(The power dissipation at full load would be 86.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
current at 30 K : |
1000 A |
| Mechanical data | |
| W x H x D: | 2400 x 50 x 10 |
| weight: | 1072.8 kg/100 |
| cross-section: | 500 mm² |
Edge radius 0.5
| Please respect the insulation characteristics of the busbar support for your application. | |
|
see product description of the used busbar support |
|
01251
000

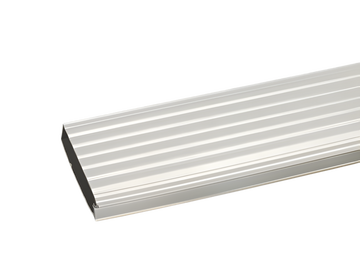

busbar cover
for 40 - 60 x 10 busbars, 1m long
touch protection cover
