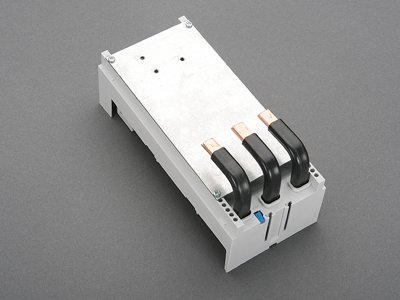

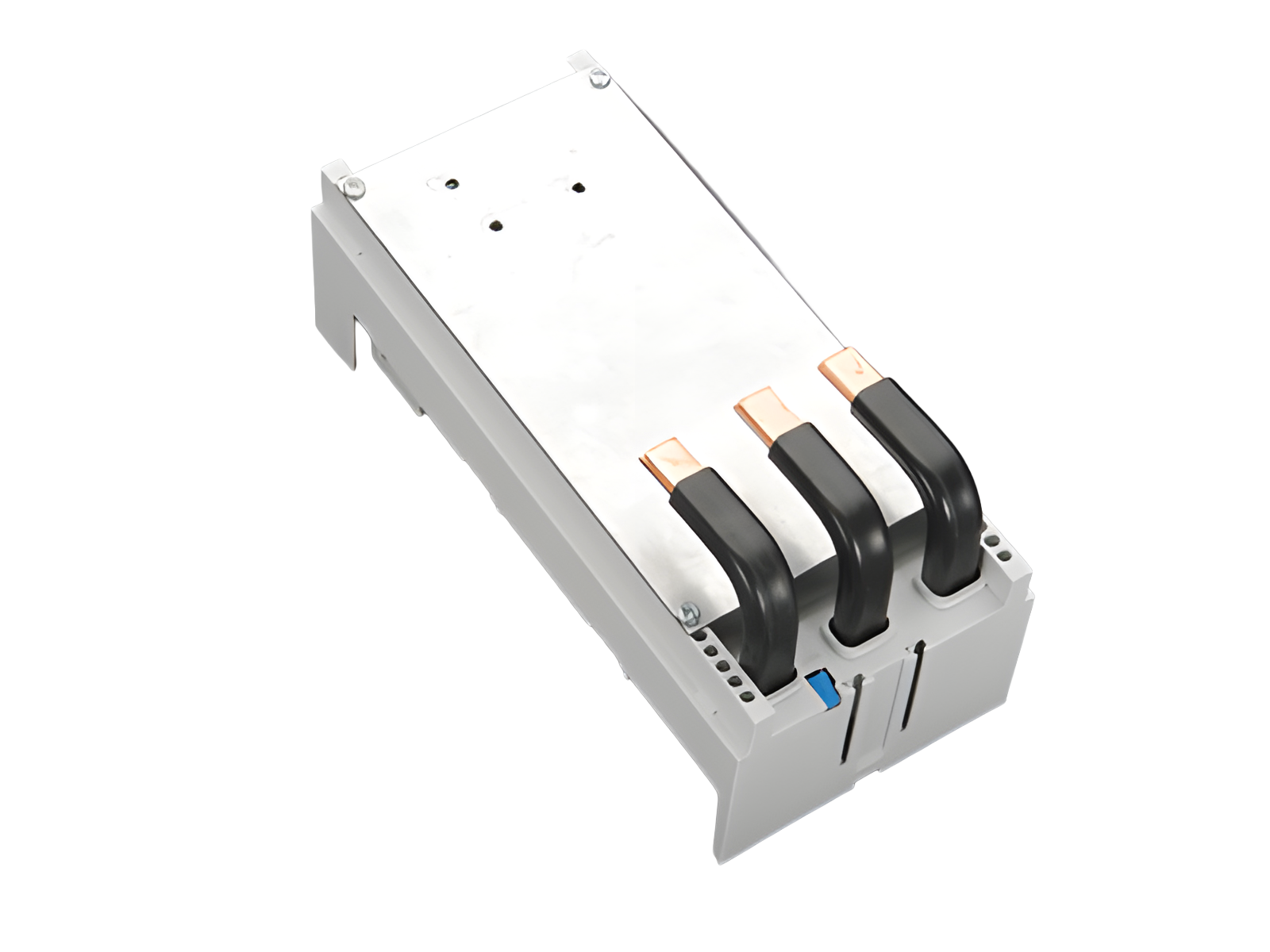

The picture may show a similar product.
Part No.: 32571 000
EQUES®60Classic
busbar adapter 160 A, 3-pole
90 x 200
connection to the system bottom
for Allen-Bradley 140U-H, Eaton NZM1
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 05 |
| Subgroup | 30 |
| pack size | 1 |
| EAN | 4021267325718 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
| ETIM 8.0 | EC001531 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL
for UL feeder circuits >250V
type number: EPC60160
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7.7 W.
(The power dissipation at full load would be 12.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -40 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR protected max.: | 35 kA |
| SCCR: |
35 kA with NZM1 125 A / 480 V AC
35 kA with 140U-H 125 A / 480 V AC |
| Mechanical data | |
| W x H x D: | 90 x 200 x 50 |
| weight: | 81.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| Material properties | |
| halogen-free: | No |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
Special adapter for Eaton NZM1 and Allen-Bradley 140U-H |
|
| for UL feeder circuits >250V |
