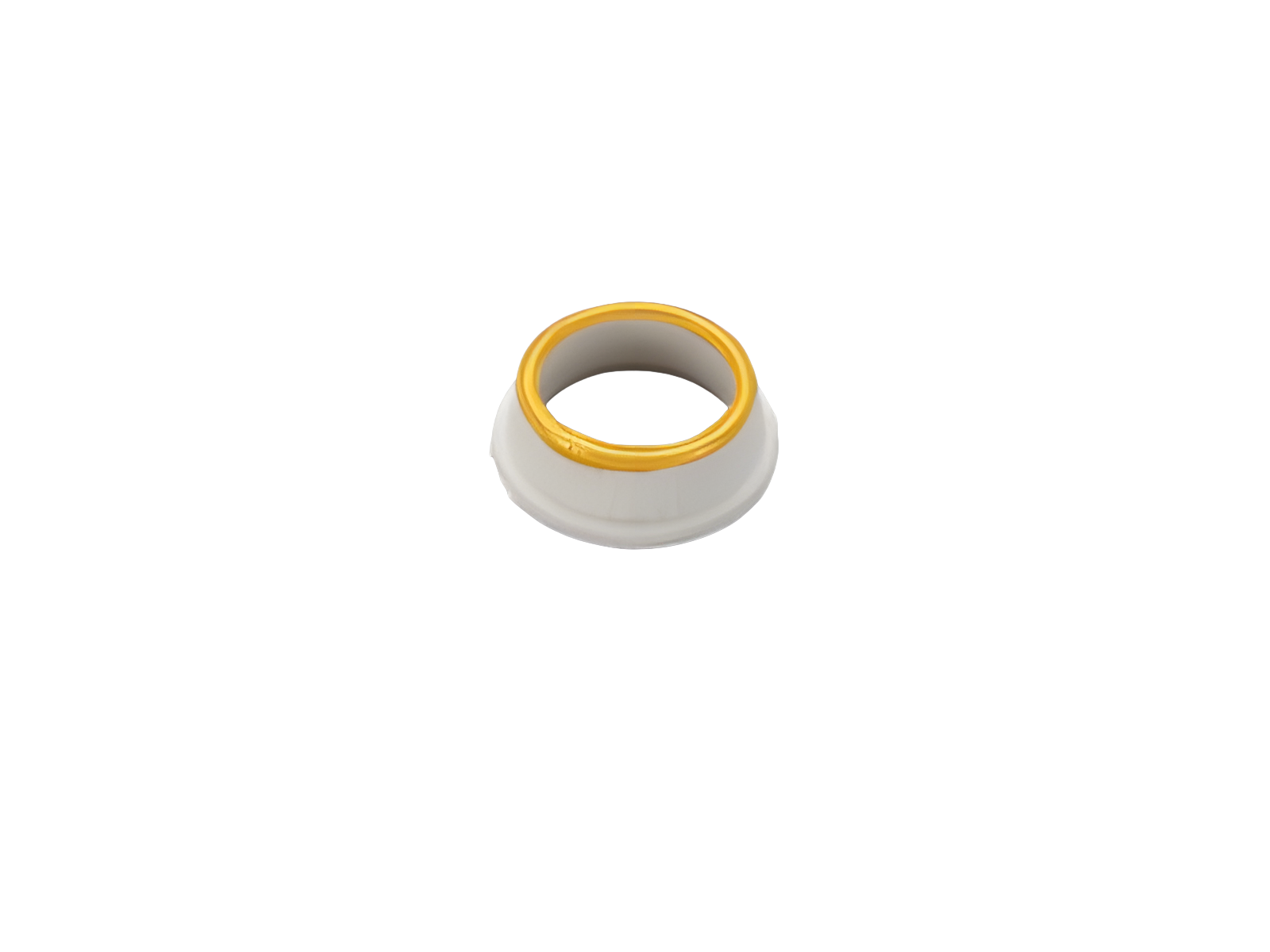

gauge ring 25 A (01547)

The picture may show a similar product.

Description

Part No.: 01547 000

gauge ring 25 A

Size DIII / E 33

yellow

E 27

Product group 22
Subgroup 04
pack size 50
EAN 4021267015473
ECLASS 6.1 27142112
ECLASS 7.1 27142112
ETIM 4.0 EC000279
ETIM 5.0 EC000279

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size: DIII / E 33
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated current (IEC): 25 A

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 0.4 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

accessories for fuses

01059 000
ring gauge key
E 27 / E 33
