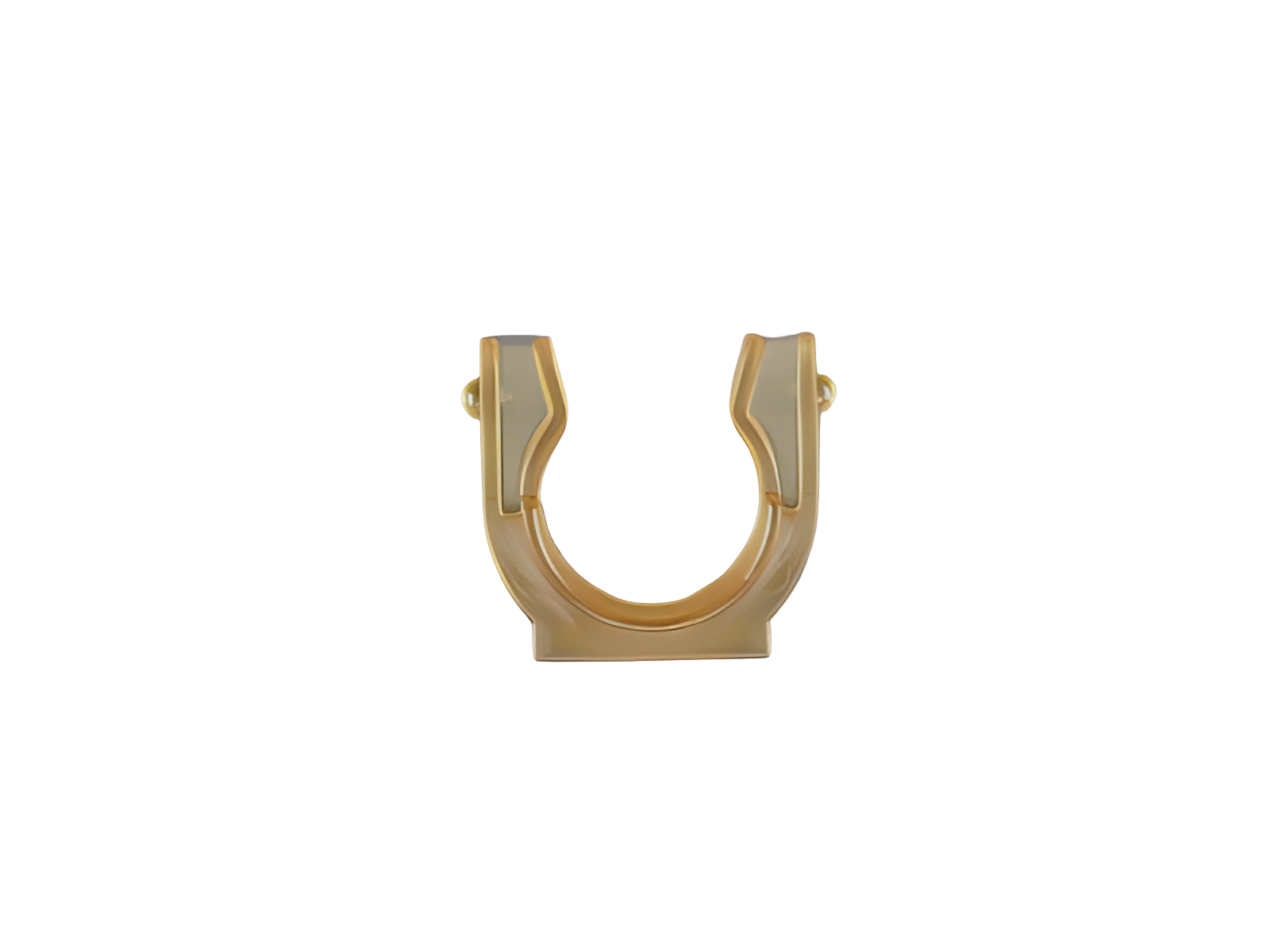

reducer D02 for D01 fuses 2 - 16 A (31902)

The picture may show a similar product.

Description

Part No.: 31902 000

reducer D02 for D01 fuses 2 - 16 A

for APS, SEL, SPL

System

60Classic

Product group 01
Subgroup 36
pack size 20
EAN 4021267319021
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002936
ETIM 5.0 EC002936

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 0.1 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

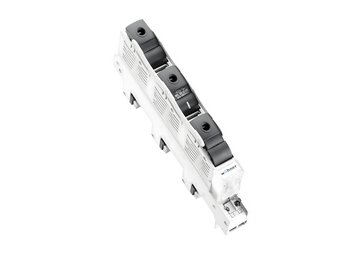

31525 000
SECUR®60Classic PowerLiner
D0 busbar mounted switch-disconnector-fuse
Size D02 / E 18
for D01 and D02 fuses, with LED
63 A / 3P
indication (LED) of a tripped fuse link
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
3-pole / 1-pole switching
More

31557 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
with LED
3P
for mounting rail
More

31313 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
2P
operator independent switching (snap-action mechanism)
N on right side
for mounting rail
More

31556 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
with LED
1P
operator independent switching (snap-action mechanism)
for mounting rail
More

31315 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
3P + N
operator independent switching (snap-action mechanism)
N on right side
for mounting rail
More

31308 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
1P + N
operator independent switching (snap-action mechanism)
N on right side
for mounting rail
More

31232 000
SECUR®60Classic PowerLiner
busbar mounted switch-disconnector-fuse
Size 10x38
for fuses 10x38 IEC 60269-2
63 A / 3P
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
3-pole / 1-pole switching
More

31314 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
3P
operator independent switching (snap-action mechanism)
for mounting rail
More

31307 000A
SECUR®Panel
switch-disconnector for D0 fuses up to 63 A
Size D02 / E 18
1P
operator independent switching (snap-action mechanism)
for mounting rail
More

31579 000B
SECUR®60Classic EasyLiner
D0 busbar mounted switch-disconnector-fuse, for 5-pole busbar system
Size D02 / E 18
for D01 and D02 fuses, with LED
63 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31575 000B
SECUR®60Classic EasyLiner
D0 switch-disconnector-fuse, for 3-pole busbar system
Size D02 / E 18
for D01 and D02 fuses, with LED
63 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31578 000B
SECUR®60Classic EasyLiner
D0 switch-disconnector-fuse, for 5-pole busbar system
Size D02 / E 18
for D01 and D02 fuses
63 A / 3P
operator independent switching (snap-action mechanism)
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

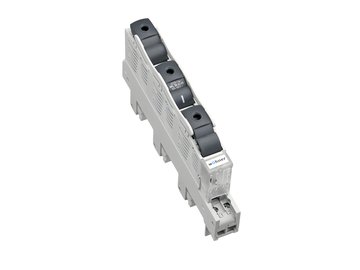

31158 000
