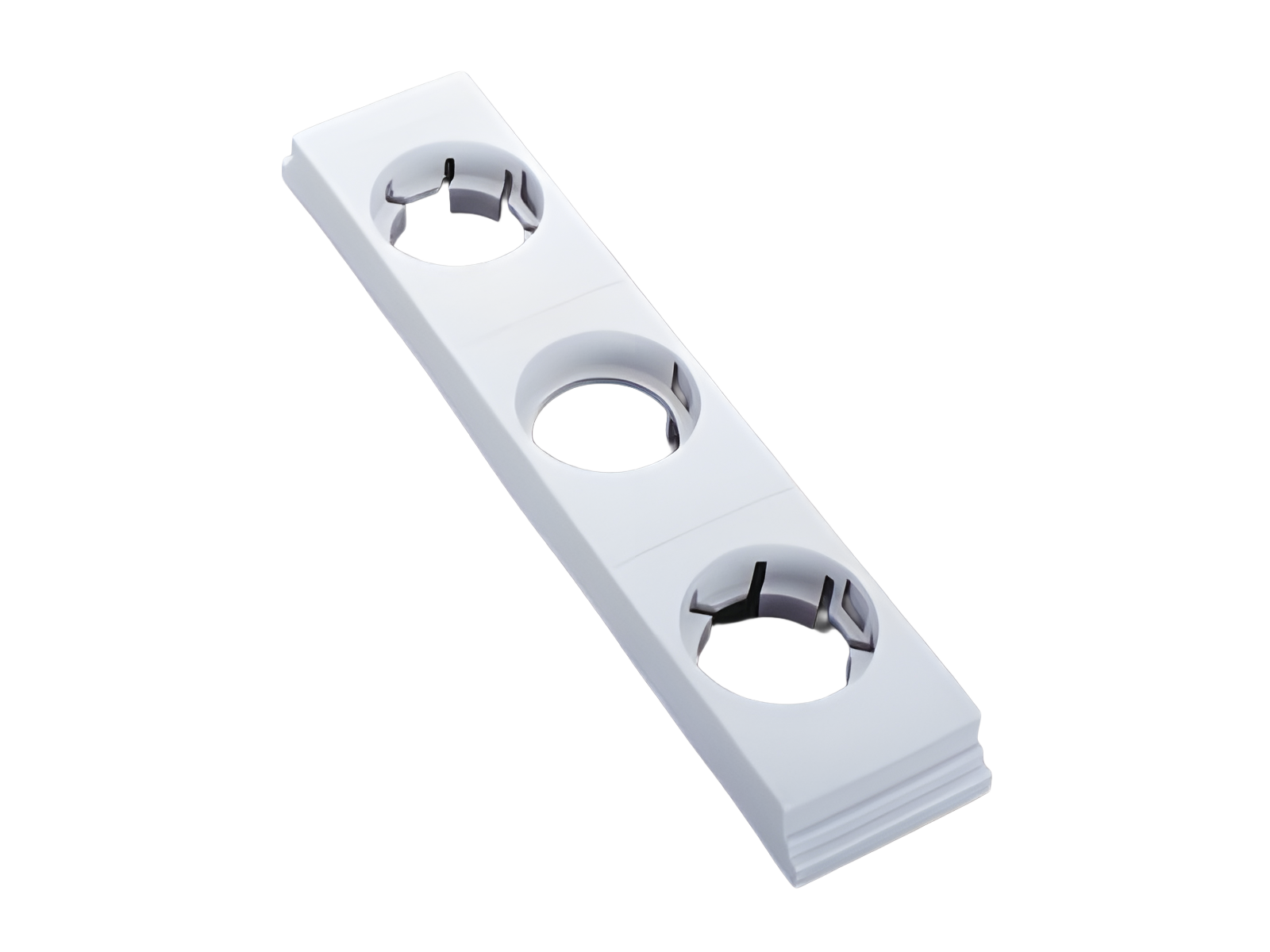

The picture may show a similar product.
Part No.: 31070 000
D strip cover
Size DII / E 27
E 27
1-fold, elevated, 42 mm wide
System
60Classic
| Product group | 01 |
| Subgroup | 33 |
| pack size | 10 |
| EAN | 4021267310707 |
| ECLASS 6.1 | 27142104 |
| ECLASS 7.1 | 27142104 |
| ETIM 4.0 | EC000241 |
| ETIM 5.0 | EC000241 |
| ETIM 8.0 | EC000241 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Approvals
DNV GL
| size: | DII / E 27 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted operation temperature | 55 |
| Mechanical data | |
| W x H x D: | 42 x 200 x 17 |
| weight: | 4.9 kg/100 |
| poles: | 3-pole |
| Terminal points | |
| Not suitable for aluminium cables ! |
| Material properties | |
| halogen-free: | No |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
| Not suitable for aluminium cables ! | |
|
Labelling fields above and below the fuse. |
|
|
not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
|
79663
000
shock protection cover
attachable on either side
for strip covers
