for UL feeder circuits >250V

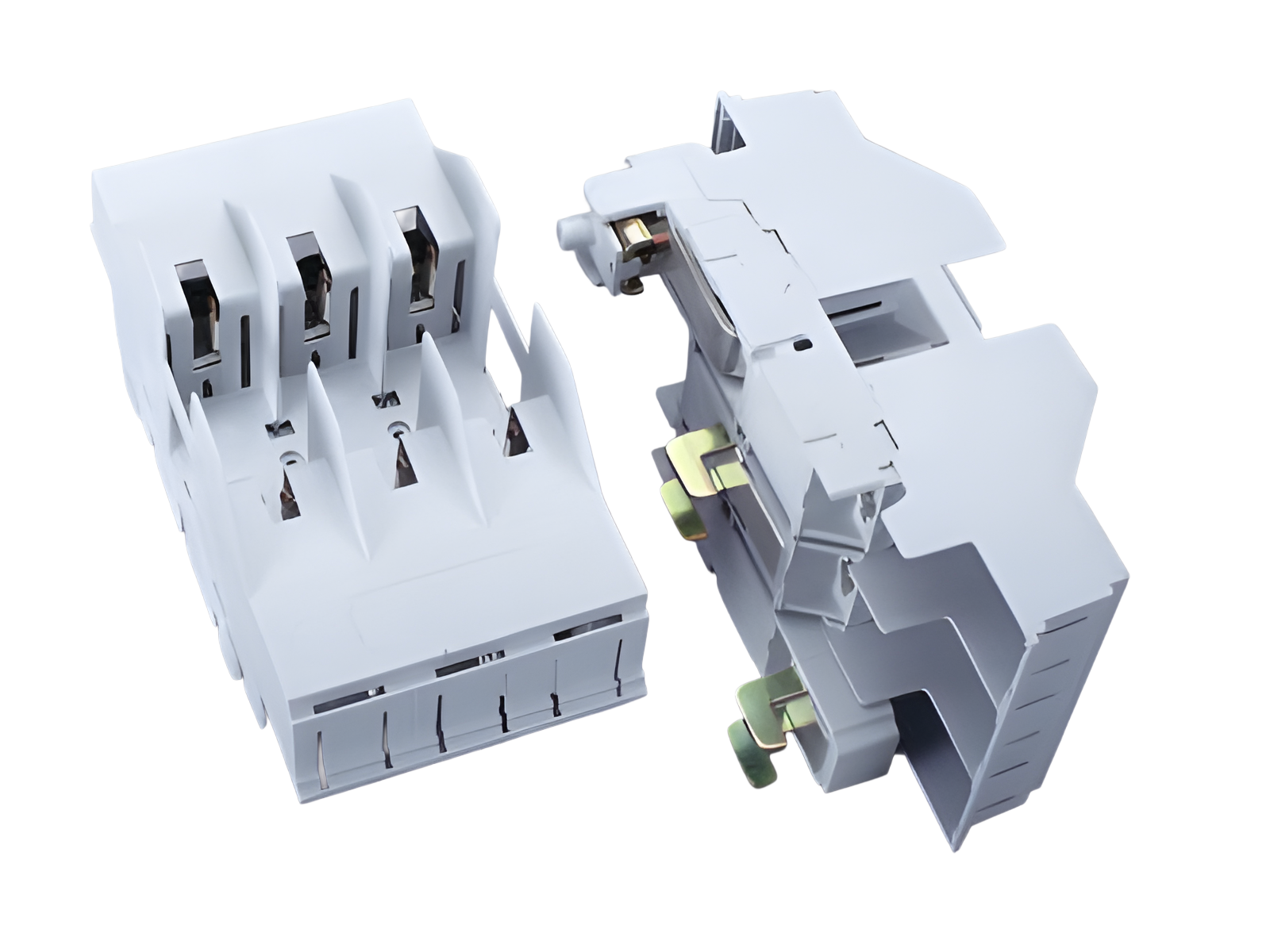

The picture may show a similar product.
Part No.: 03654 000
QUADRON®60Classic
NH fuse base 160 A
terminal 70 mm²
size 00 / 3P
connection top
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 10 |
| Subgroup | 51 |
| pack size | 4 |
| EAN | 4021267036546 |
| ECLASS 6.1 | 27142106 |
| ECLASS 7.1 | 27142106 |
| ETIM 4.0 | EC000067 |
| ETIM 5.0 | EC000067 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated surge voltage Uimp : | 6 kV |
| short-circuit strength when protected by fuses: | 50 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 9.0 W.
(The power dissipation at full load would be 14.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 800 V |
| max. permitted voltage (IEC) DC: | 800 V |
| Mechanical data | |
| W x H x D: | 99 x 200 x 89 |
| weight: | 66.5 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Type of fastening: hook clips
| Terminal points | |
| terminal | |
| min. cross-section: | 1.5 mm² |
| max. cross-section: | 70 mm² |
| Md min.: | 2.4 Nm |
| Md max.: | 3.6 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 12 W |
