for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 32175 000AC
EQUES®60Classic

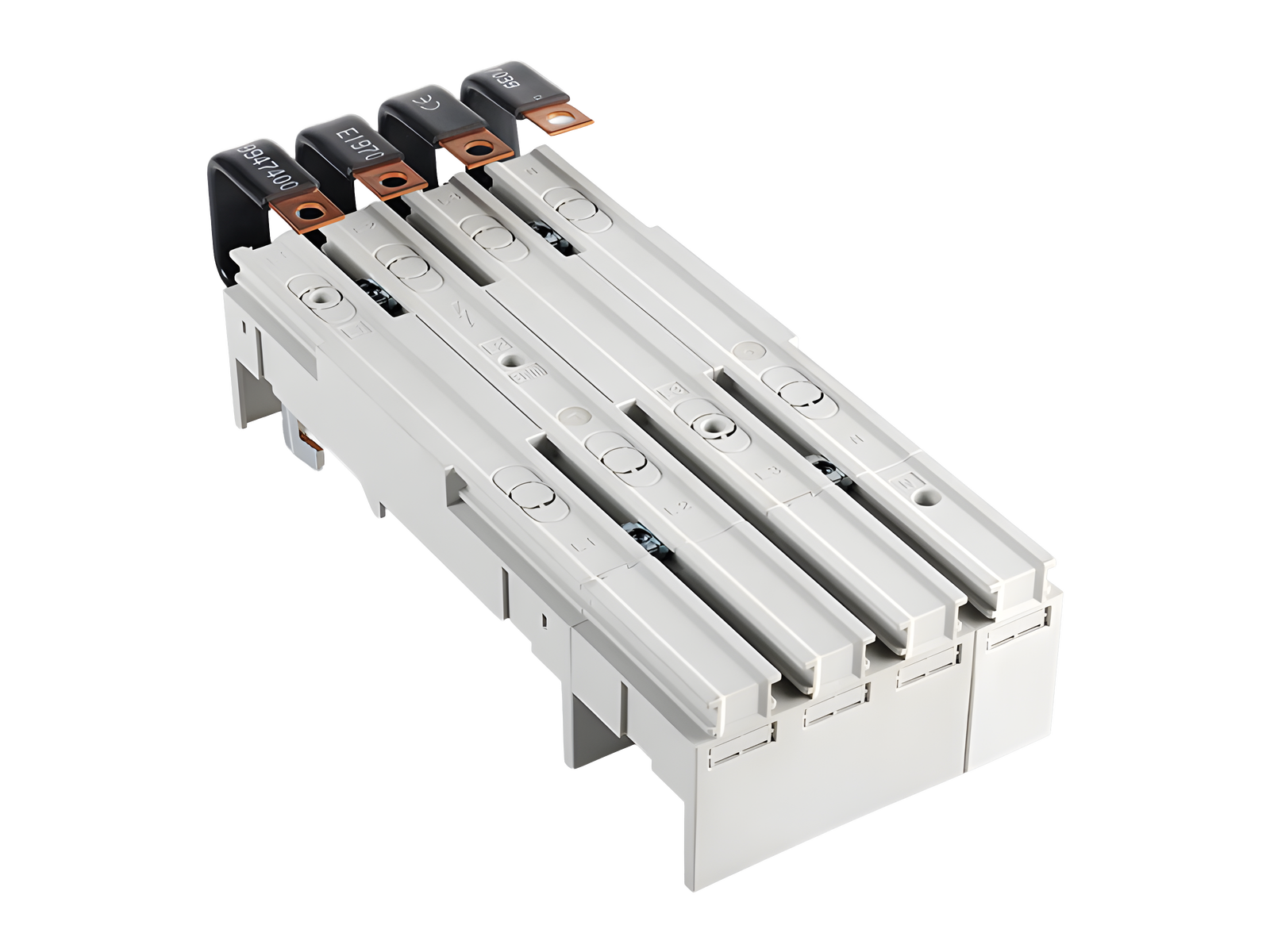

busbar adapter 160 A, 4-pole
with laminated copper (bottom), with UL approval
100 x 260
phase distance 25 mm
N on left side
connection to the system bottom
for ABB T1, XT1 / Schneider Electric NSXm160 / Siemens 3VA10, 3VA11
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 05 |
| Subgroup | 30 |
| pack size | 1 |
| EAN | 4021267321758 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
Approvals
for UL feeder circuits >250V
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11.7 W.
(The power dissipation at full load would be 18.3 W.)
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 100 x 260 x 35 |
| weight: | 100.8 kg/100 |
| poles: | 3-pole+N |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
|
| for UL feeder circuits >250V |
