for UL feeder circuits >250V

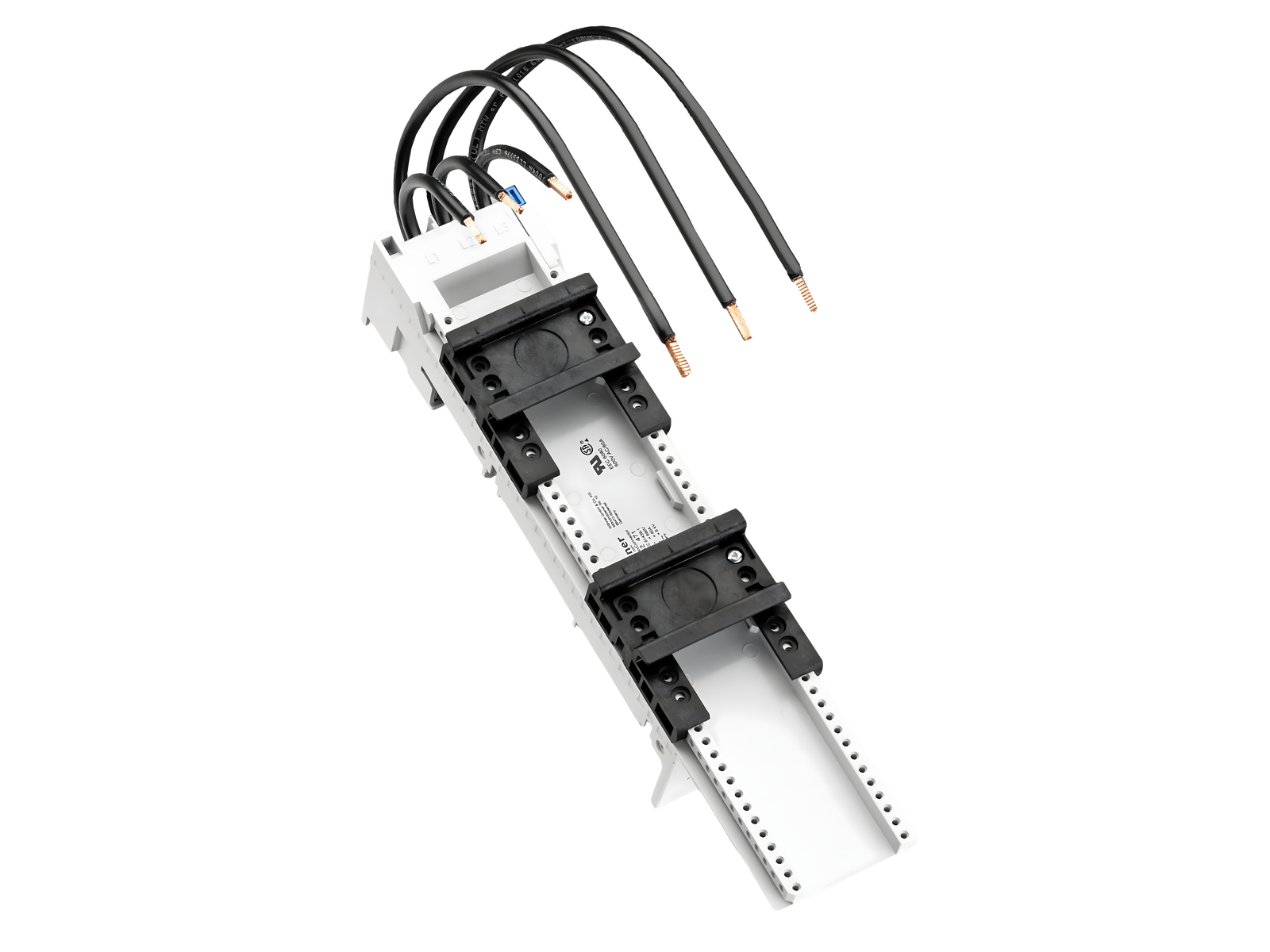

The picture may show a similar product.
Part No.: 32471 000
EQUES®60Classic
busbar adapter 80 A
3-pole
2 adjustable mounting rails
54 x 260, with twin cables AWG10 (6 mm²)
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 05 |
| Subgroup | 27 |
| pack size | 4 |
| EAN | 4021267324711 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL
type number: EEC6080
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 80 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6.0 W.
(The power dissipation at full load would be 9.3 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 800 V |
| Details UL | |
| Standards | |
| UL 508 |
| Electrical data UL | |
| rated current (UL): | 80 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 54 x 260 x 63 |
| weight: | 49.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 11 mm |
| min. cross-section: | 1.5 mm² |
| max. cross-section: | 1.6 mm² |
| Md min.: | 3.2 Nm |
| Md max.: | 4.8 Nm |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
for feeder circuits as per UL508a, accessory 32974 is already mounted |
|
|
the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter |
|
32963
000
side-mounted module for busbar adapters
attachable to both sides
9 x 200
for: EEC60..
