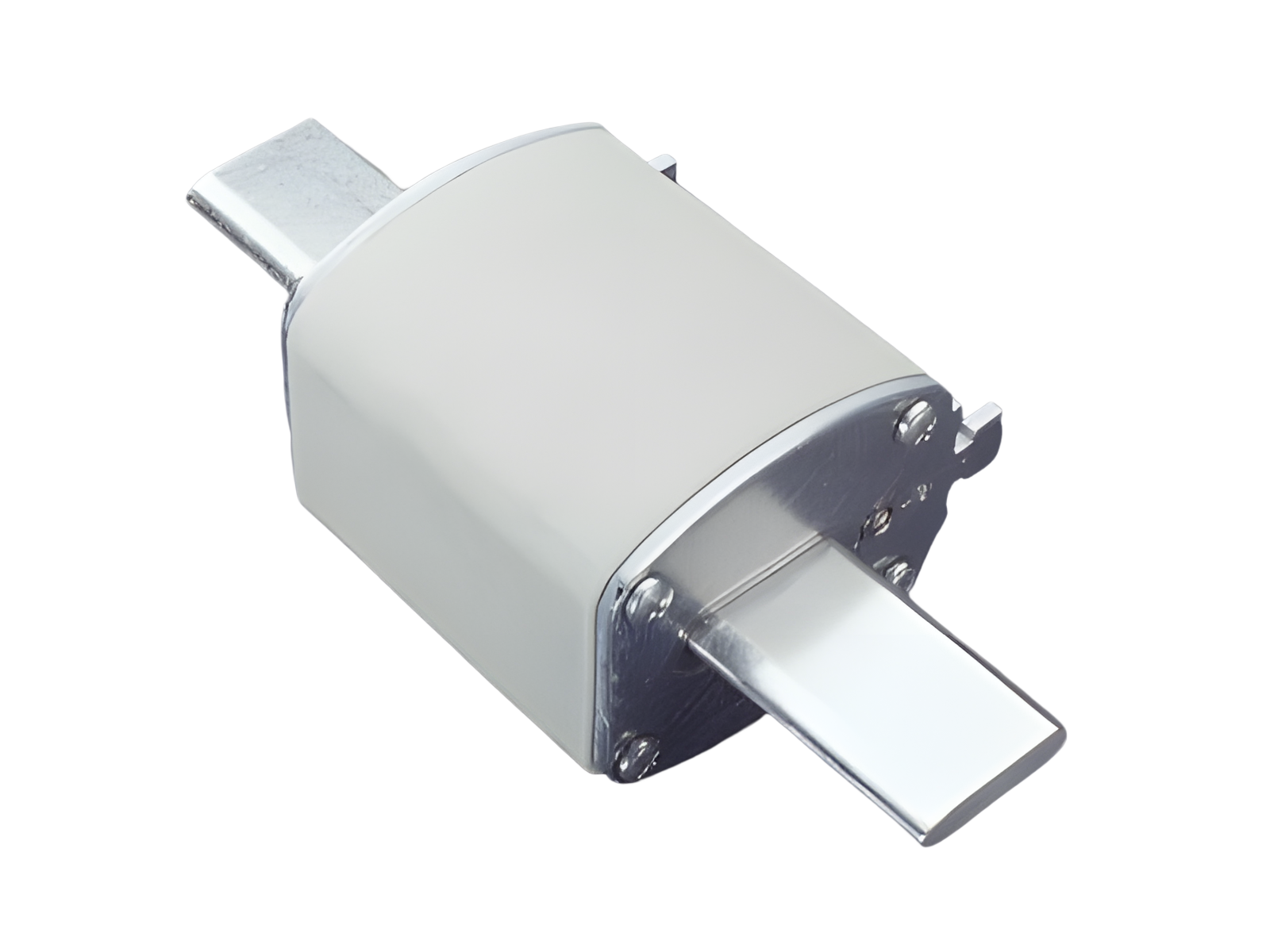

The picture may show a similar product.
Part No.: 03943000A
NH fuse 315 A
690 V, gG
size 2
| Product group | 22 |
| Subgroup | 12 |
| pack size | 3 |
| EAN | 4021267039431 |
| ECLASS 6.1 | 27142005 |
| ECLASS 7.1 | 27142005 |
| ETIM 4.0 | EC000055 |
| ETIM 5.0 | EC000055 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
| size: | NH 2 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| rated current (IEC): | 315 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 250 V |
| operation class | gG |
| Indicator version | double indicator |
| rated short-circuit breaking capacity AC | 80 kA |
| rated short-circuit breaking capacity DC | 80 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 16,0 W.
(The power dissipation at full load would be 25,0 W.)
| Mechanical data | |
| weight: | 64,0 kg/100 |
| vertical installation position: | Yes |
| horizontal installation position: | Yes |
