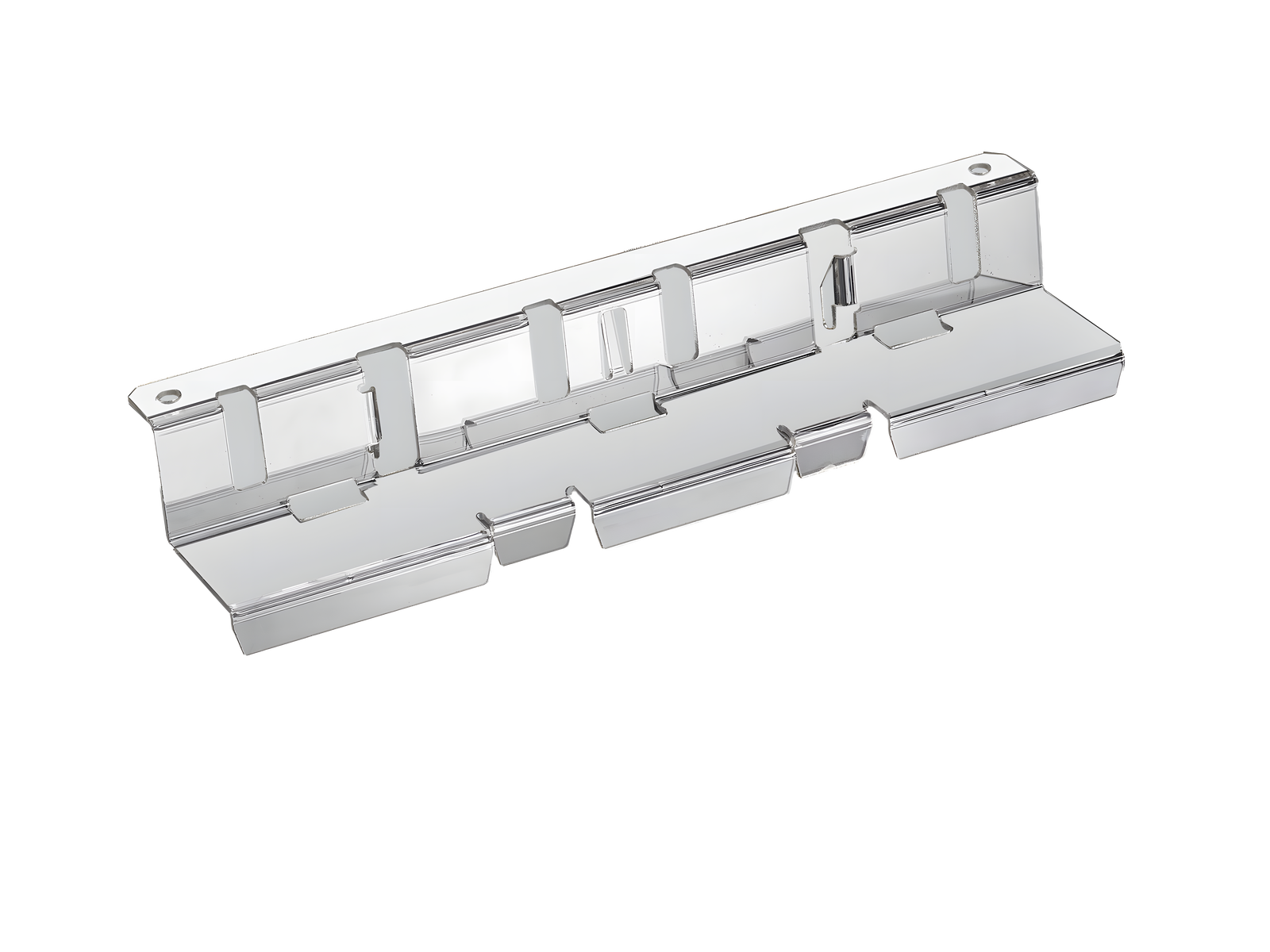

touch-safe protection shroud IP20 (rear installation) (32704)

The picture may show a similar product.

Description

Part No.: 32704000A

touch-safe protection shroud IP20 (rear installation)

for all adapters

System

185Power

Product group 05
Subgroup 57
pack size 1
EAN 4021267327040
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

type number: C185-E

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
5% derating for the electrical data of the circuit breaker
Mechanical data
W x H x D: 300 x 55 x 67
weight: 9,0 kg/100
poles: 3-pole

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

32809000A
EQUES®185Power
busbar adapter 1440 A
300 x 652, connection top, screw connection
for: GE FK1600, Legrand DPX³ 1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32753000A
EQUES®185Power
busbar adapter 1150 A
300 x 675, connection top, clamp connection
for: Siemens 3VL7 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32757000A
EQUES®185Power
busbar adapter 1250 A
300 x 652, connection top, clamp connection
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32749000A
EQUES®185Power
busbar adapter 1150 A
300 x 652, changed phase
connection to the system bottom
for: Siemens 3VL7 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
phase-out product
More

32766000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top, clamp connection
for: ABB Tmax T6, XT6 (1000 A), T7, XT7 (1000 A), Emax E1.2 (1000 A), Siemens 3VA27 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32756000A
EQUES®185Power
busbar adapter 1450 A
300 x 652, connection top, clamp connection
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32769000A
EQUES®185Power
busbar adapter 630 A
300 x 675, connection top, clamp connection
for: Siemens 3VL5 (630 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32719000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection, changed phase
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32765000A
EQUES®185Power
busbar adapter 1250 A
300 x 652, connection top, clamp connection
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32776000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection top / bottom, screw connection
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32758000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top, clamp connection
for: Schneider Electric NS630B, NS800, NS1000
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32754000A
EQUES®185Power
busbar adapter 720 A
300 x 675, connection top, clamp connection
for: Siemens 3VL6 (630 A, 800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32772000A
EQUES®185Power
busbar adapter 1150 A
300 x 675, connection top / bottom, screw connection
for: Siemens 3VL7 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
phase-out product
More

32785000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T6, XT6 (1000 A), T7, XT7 (1000 A), Emax E1.2 (1000 A), Siemens 3VA27 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32721000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, screw connection, changed phase
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32737000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32775000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection top / bottom, screw connection
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32761000A
EQUES®185Power
busbar adapter 1440 A
300 x 652, connection top, clamp connection
for: Eaton NZM4 (1600 A), Siemens 3VL8 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32807000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection top, clamp connection
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32718000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection, changed phase
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32784000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32734000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32777000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection top / bottom, screw connection
for: Schneider Electric NS630B, NS800, NS1000
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

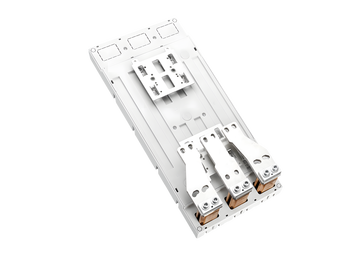

32720000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, Verbindung unten, Schraubkontaktierung, Phasendrehung
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32731000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection
for: Eaton NZM4 (1600 A), Siemens 3VL8 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32808000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32722000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection bottom, clamp connection, changed phase
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

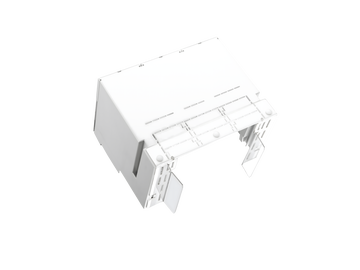

32703000A
IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for: Siemens 3VL7 (1000 A, 1250 A), 3VL8 (1600 A)
phase-out product
More

32787000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection, changed phase
for: Eaton NZM4 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32726000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32702000A
IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for: Schneider Electric NS630B, NS800, NS1000, NS1250, NS1600
More

32755000A
EQUES®185Power
busbar adapter 1000 A
300 x 675, connection top, clamp connection
for: Siemens 3VL7 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32709000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection top / bottom, screw connection
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32701000A
IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for: Eaton NZM4, GE FK1600, Legrand DPX³ 1600
More

32770000A
EQUES®185Power
busbar adapter 630 A
300 x 652, connection top / bottom, screw connection
for: Siemens 3VL5 (630 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
phase-out product
More

32729000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T6, XT6 (1000 A), T7, XT7 (1000 A), Emax E1.2 (1000 A), Siemens 3VA27 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32797000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32708000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection bottom, clamp connection
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32747000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection bottom, clamp connection
for: Schneider Electric NS630B, NS800, NS1000
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32796000A
EQUES®185Power
busbar adapter 630 A
300 x 675, connection bottom, clamp connection
for: Siemens 3VL5 (630 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32774000A
EQUES®185Power
busbar adapter 650A
300 x 675, connection top / bottom, screw connection
for: Siemens 3VL6 (630 A, 800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
phase-out product
More

32763000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top, clamp connection
for: Eaton NZM4 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32780000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection top / bottom, screw connection
for: Eaton NZM4 (1600 A), Siemens 3VL8 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32781000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection top / bottom, screw connection
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

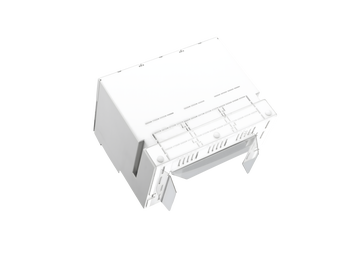

32700000A
IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for: ABB Tmax T6, T7, Emax E2, Siemens 3VA27
More

32724000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection bottom, screw connection, changed phase
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32723000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection bottom, clamp connection, changed phase
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32752000A
EQUES®185Power
busbar adapter 1550 A
300 x 675, connection top, clamp connection
for: Socomec Sirco 1250 A (Socomec-Nr. 26003U21), Sirco 1600 A (Socomec-Nr. 26003U61)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32764000A
EQUES®185Power
busbar adapter 1500A
300 x 652, connection bottom, clamp connection
for: Socomec Sirco 1250 A (Socomec-Nr. 26003U21), Sirco 1600 A (Socomec-Nr. 26003U61)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32762000A
EQUES®185Power
busbar adapter 1250 A
300 x 652, connection top, clamp connection
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32773000A
EQUES®185Power
busbar adapter 1000 A
300 x 675, connection top / bottom, screw connection
for: Siemens 3VL7 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
phase-out product
More

32707000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection top, clamp connection
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32779000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top / bottom, screw connection
for: Eaton NZM4 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32789000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, screw connection, changed phase
for: Eaton NZM4 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32771000A
EQUES®185Power
busbar adapter 1150 A
300 x 652, connection bottom, clamp connection
for: Siemens 3VL7 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32783000A
EQUES®185Power
busbar adapter 1000 A
300 x 675, connection bottom, clamp connection
for: Siemens 3VL7 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32795000A
EQUES®185Power
busbar adapter 650 A
300 x 675, connection bottom, clamp connection
for: Siemens 3VL6 (630 A, 800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

32725000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection bottom, screw connection, changed phase
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32788000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection, changed phase
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32790000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, screw connection, changed phase
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32733000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection bottom, clamp connection
for: Eaton NZM4 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32732000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32786000A
EQUES®185Power
busbar adapter 800 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T6, XT6, T7, XT7 (800 A), Emax E1.2 (800 A), Siemens 3VA27 (800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32767000A
EQUES®185Power
busbar adapter 800 A
300 x 652, connection top, clamp connection
for: ABB Tmax T6, T7, XT6, XT7 (800 A), Emax E1.2 (800 A), Siemens 3VA27 (800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32730000A
EQUES®185Power
busbar adapter 800 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T6, XT6, T7, XT7 (800 A), Emax E1.2 (800 A), Siemens 3VA27 (800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32706000A
IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for: Siemens 3VL5 (630 A), 3VL6 (630 A, 800 A)
phase-out product
More

32705000A
IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
More

https://pim.woehner.de/EN/AT/1000181316

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
