Select product

for UL feeder circuits >250V

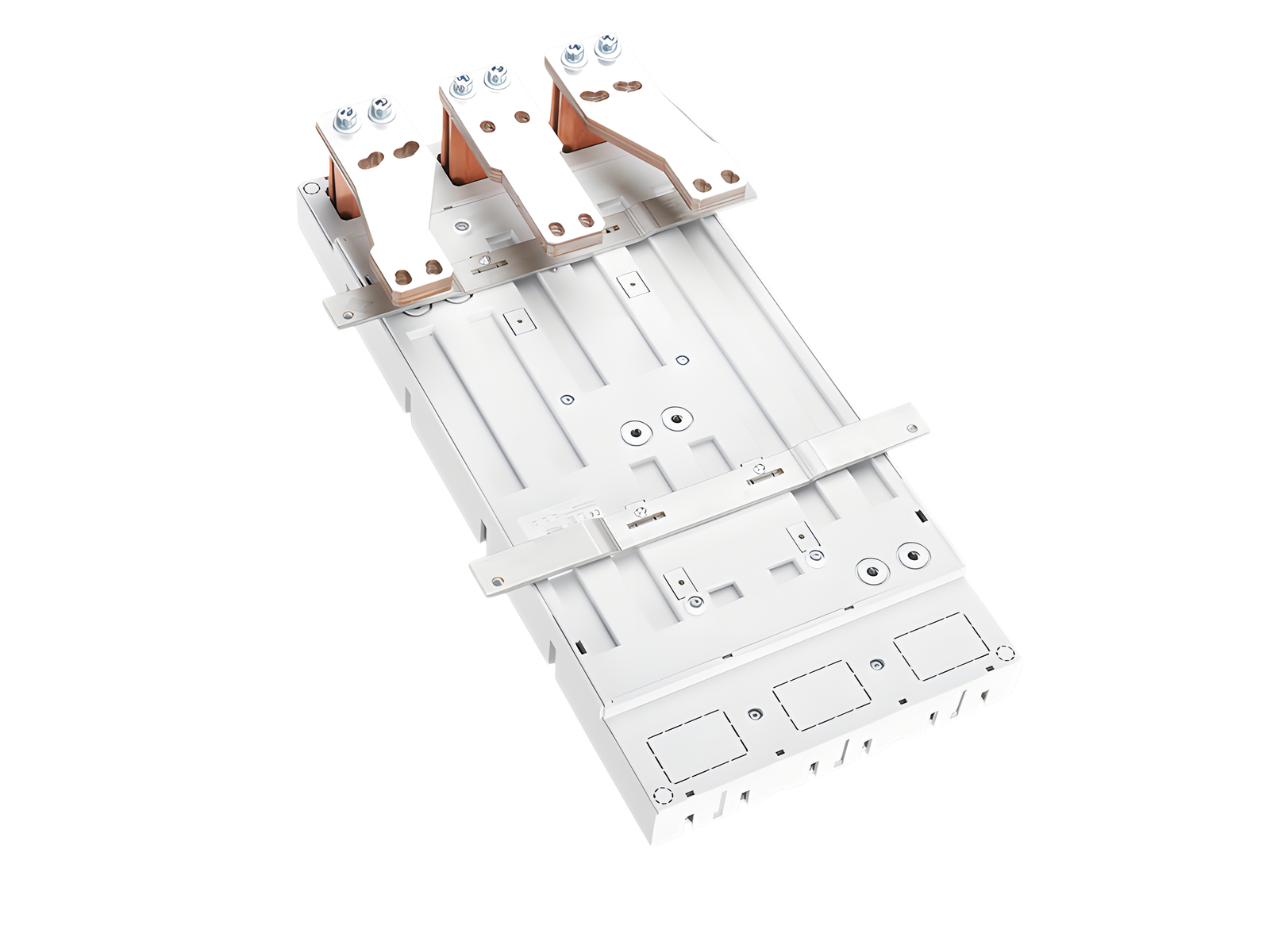

busbar adapter 1550 A (32752)

The picture may show a similar product.

Description

Part No.: 32752 000A

EQUES®185Power

busbar adapter 1550 A

300 x 675, connection top, clamp connection

for Socomec Sirco 1250 A (Socomec-Nr. 26003U21), Sirco 1600 A (Socomec-Nr. 26003U61)

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 05
Subgroup 48
pack size 1
EAN 4021267327521
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: EQ185-A1600-C

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 1550 A
rated voltage (IEC) AC: 800 V
rated voltage (IEC) DC: 800 V
rated isolation voltage Ui AC: 1000 V
rated isolation voltage Ui DC: 1000 V
rated surge voltage Uimp : 12 kV
rated peak withstand current  Ipk max.: 106 kA
rated short-time withstand current Icw (1.0 s) max.: 50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 406,4 W.

(The power dissipation at full load would be 635,0 W.)

with Socomec Sirco 1250 A (Socomec no.26003U21) and 1600 A (Socomec no.26003U61) usable up to 1550 A
maximum 300 switching cycles
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 1200 A
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
SCCR unprotected max.: 50 kA
3 cycles (without OPD) @ 1000 V AC
Mechanical data
W x H x D: 300 x 652 x 76
weight: 3350,0 kg/100
poles: 3-pole
for busbars: 30, 40, 60, 80, 100, 120 x 10
CT can be integrated in the device: ja

Application notes

Die Kurzschlusswerte der Kombination aus Sammelschienenadapter und Lasttrennschalter hängen von den zulässigen Einbaubedingungen des Schaltgerätes ab. Diese Werte sind bei Wöhner zu erfragen.

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

covers

32704 000A

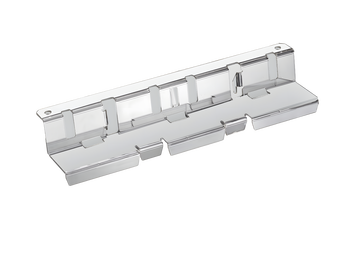

touch-safe protection shroud IP20 (rear installation)
for all adapters
More

current transformers class 1

32983 000
current transformer 630 A / 5 A
5 VA / class 1
More

32984 000
current transformer 800 A / 5 A
5 VA / class 1
More

32985 000
current transformer 1000 A / 5 A
5 VA / class 1
More

32986 000
current transformer 1250 A / 5 A
5 VA / class 1
More

32987 000
current transformer 1600 A / 5 A
5 VA / class 1
More
