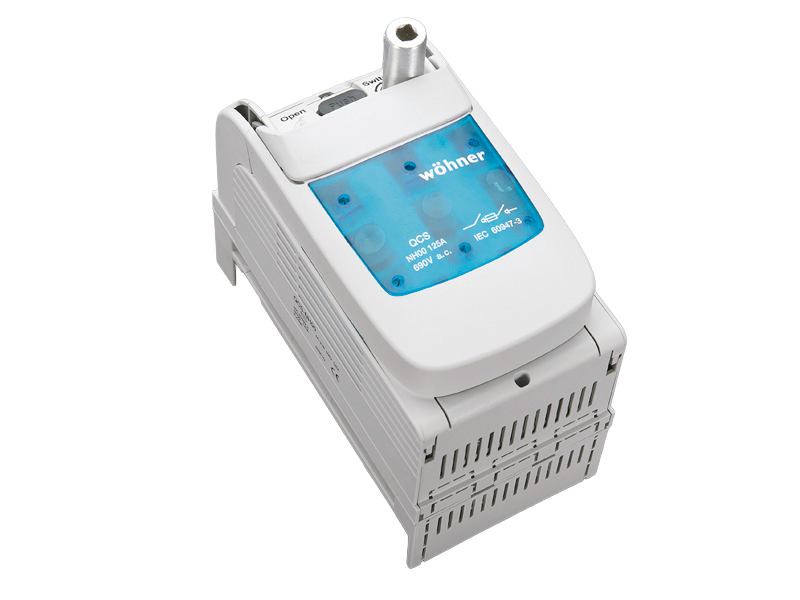

The picture may show a similar product.
Part No.: 33503000
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
box terminal, connection bottom, for door coupling rotary handle
size 00
double-breaking
operator independent switching (snap-action mechanism)
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch)
Also as an Emergency Off switch in combination with the red-yellow door coupling twist handle
Main switch and Emergency Off switch only in combination with AC-23A/B
CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars
Compact dimensions (106mm wide)
Switches can be installed 90° left/right horizontal, always with the same switch lug position
| Product group | 15 |
| Subgroup | 20 |
| pack size | 1 |
| EAN | 4021267335038 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
type number: QCS-NH00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 125 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (690V/125A) AC-23A (500V/125A) AC-22A (690V/125A) AC20B (800V) visible information required: do not switch under load |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-22B (220V/125A) DC-20B (800V) at pollution degree 3 visible information required: do not switch under load |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V (125A) |
| approved wth fuse links of operation class: | gG |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed. | |
| System component: degree of protection IP20 at front as per DIN EN 60529, degree of protection near terminal depends on installation; shock protection as per DIN EN 50274 adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Mechanical data | |
| W x H x D: | 106 x 200 x 155 |
| weight: | 208,0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| Terminal points | |
| Not suitable for aluminium cables ! | |
|
Box terminal: |
|
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
