busbar support, 4-pole, centre (35009)

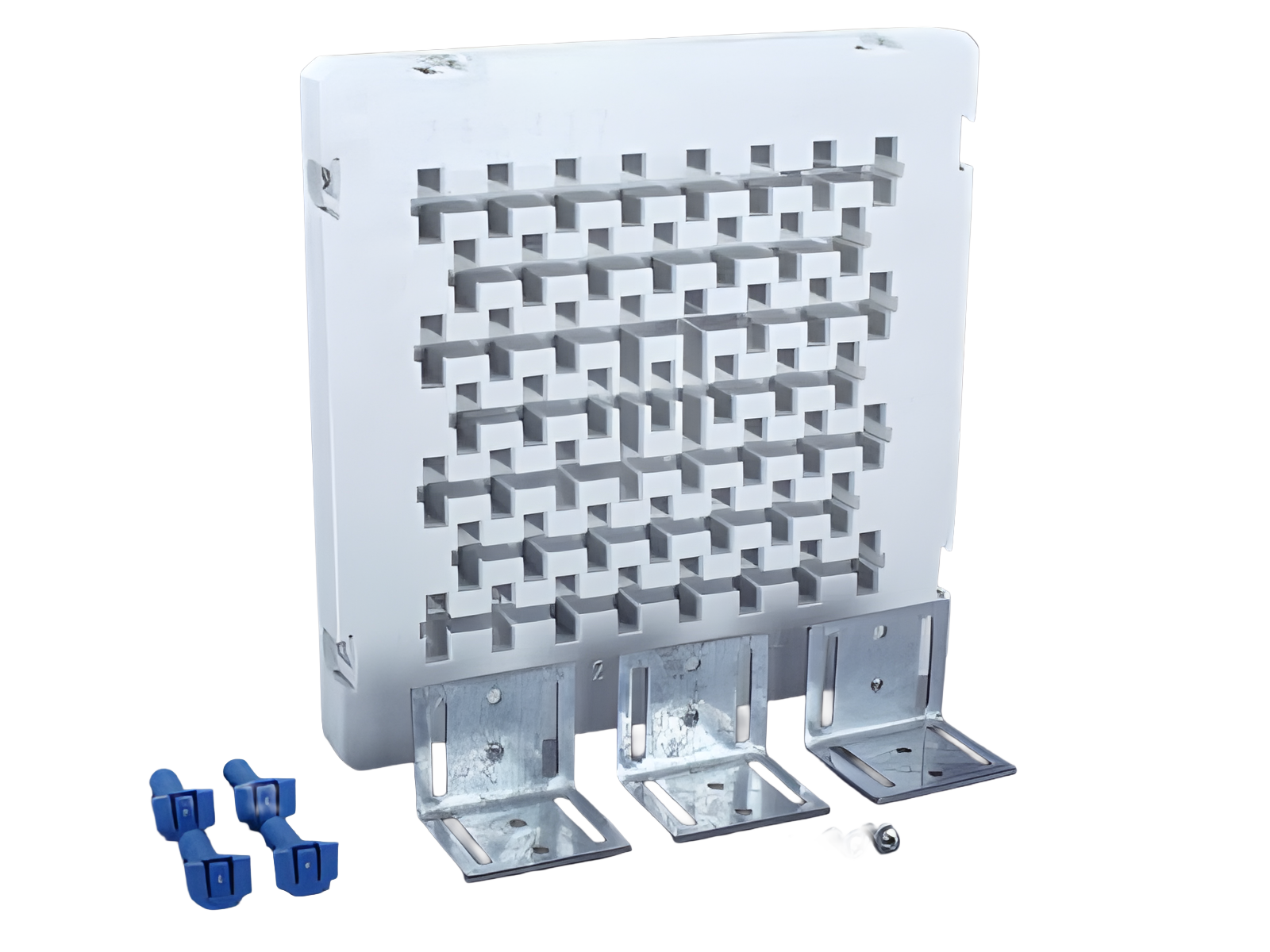

The picture may show a similar product.

Description

Part No.: 35009000

busbar support, 4-pole, centre

for busbars 30 x 10,  double-T section

System

centre feed unit

Product group 11
Subgroup 15
pack size 1
EAN 4021267350093
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: Z1140-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 690 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 8 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
Mechanical data
W x H x D: 30 x 300 x 300
weight: 458,0 kg/100
poles: 4-polig
for busbars: 30 x 10,  double-T section

Application notes

Reference

The scope of delivery includes fastening brackets, fastening screws and holders for covers.

for UL feeder circuits >250V

Links

Downloads

Accessories

35008000
busbar support, lateral
for busbars: 30 x 10,  double-T and triple-T section
More

35017000
additional cover holder
for centre feed unit
More

Usage

35008000
busbar support, lateral
for busbars: 30 x 10,  double-T and triple-T section
More
