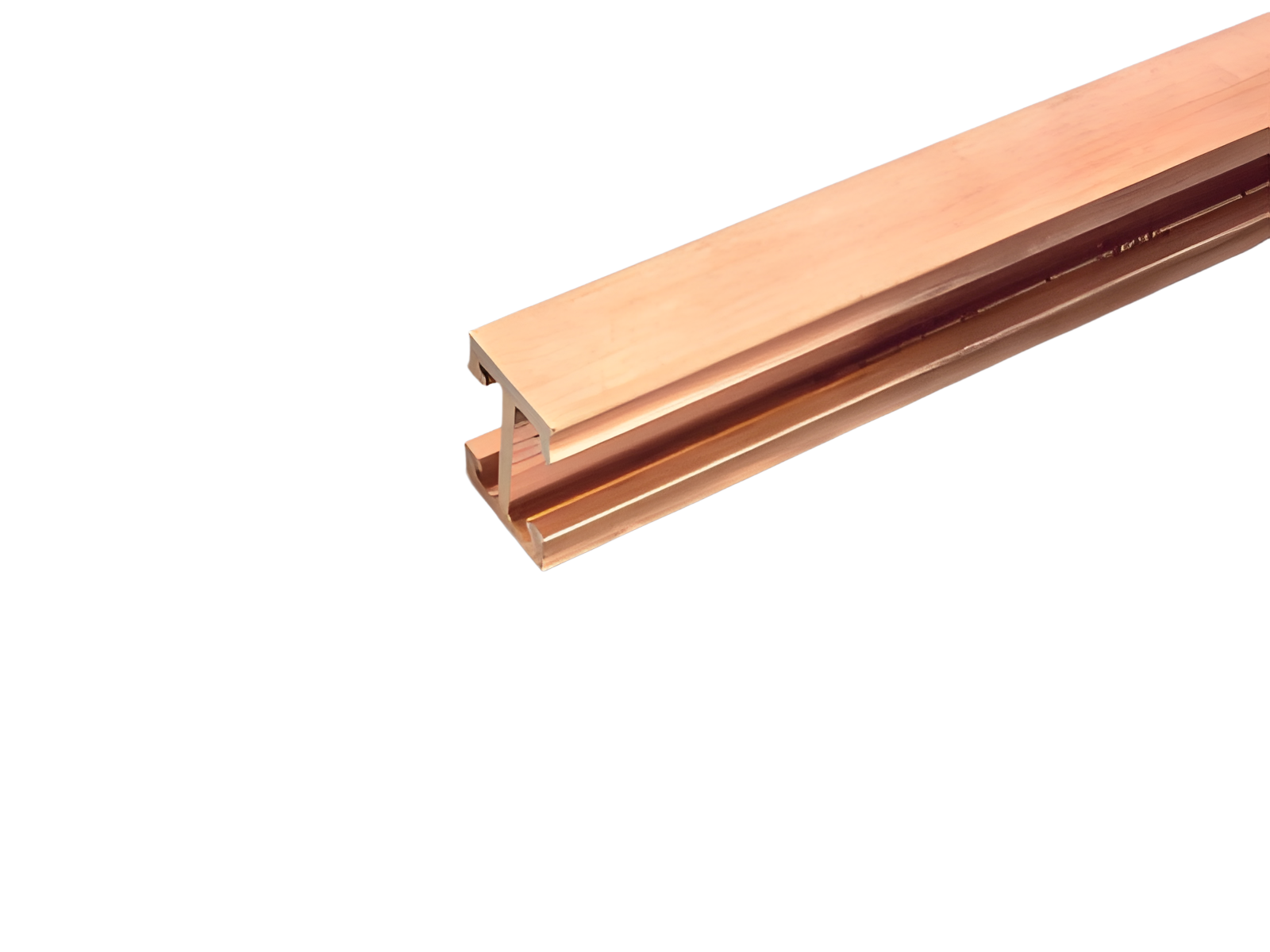

The picture may show a similar product.
Part No.: 01223000
double-T section busbar 500 mm²
length 3.60 m, plain
System
60Classic, centre feed unit
| Product group | 06 |
| Subgroup | 90 |
| pack size | 1 |
| EAN | 4021267012236 |
| ECLASS 6.1 | 27370303 |
| ECLASS 7.1 | 27370303 |
| ETIM 4.0 | EC001522 |
| ETIM 5.0 | EC001522 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL , DNV GL
for UL feeder circuits >250V
type number: H500-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 153,6 W.
(The power dissipation at full load would be 240,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| current at 55 K: | 1250 A |
| diagram current capacity (IEC) |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
considering the permitted temperature rise at the concrete installation conditions the following capacity could be accepted by UL (file E197039 |
|
| max. load acc. to UL 508: | 1200 A |
| Notice the rated voltage of the used busbar support in the application. | |
| Mechanical data | |
| W x H x D: | 3600 x 30 x 40 |
| weight: | 1596,0 kg/100 |
| cross-section: | 500 mm² |
Edge radius 0.5
| Please respect the insulation characteristics of the busbar support for your application. | |
| short-circuit withstandability: | see product description of the used busbar support |
| for UL feeder circuits >250V | |
