Part No.: 01004000

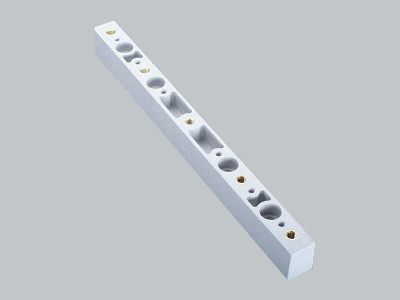

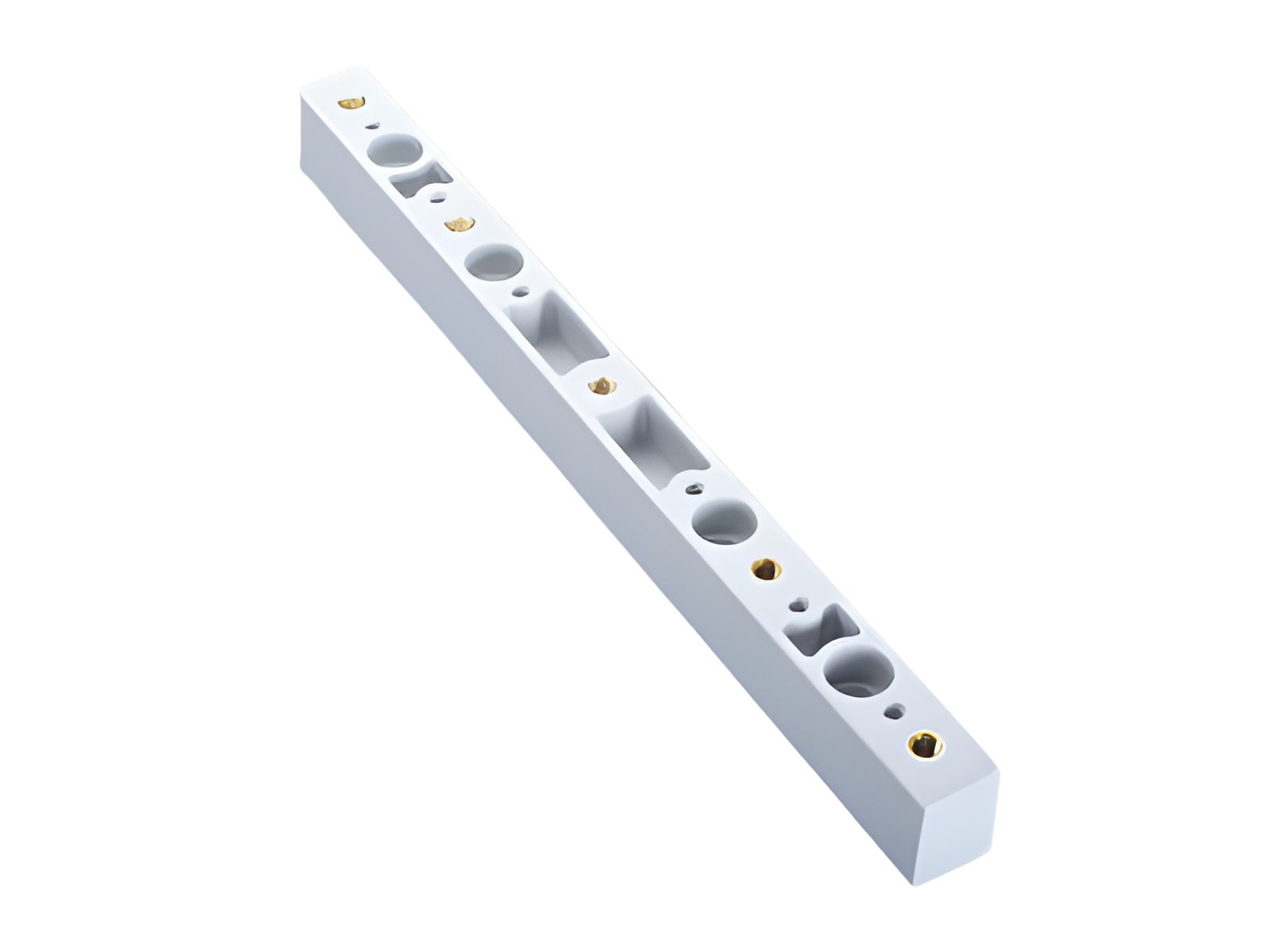

busbar support
3-pole
for busbars flat busbars
System
100Energy
| Product group | 06 |
| Subgroup | 21 |
| pack size | 6 |
| EAN | 4021267010041 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| Short-circuit withstand capacity: Surge current strength > 100kA at Busbar support separation 600mm (185mm-System) |
| Mechanical data | |
| W x H x D: | 32 x 412 x 40 |
| weight: | 72,7 kg/100 |
| poles: | 3-pole |
| for busbars: | flat busbars |
| The insulation performance of the article depends on the installation conditions. | |
|
Reference |
Torque for fastening the drilled busbars Md = 20Nm |
