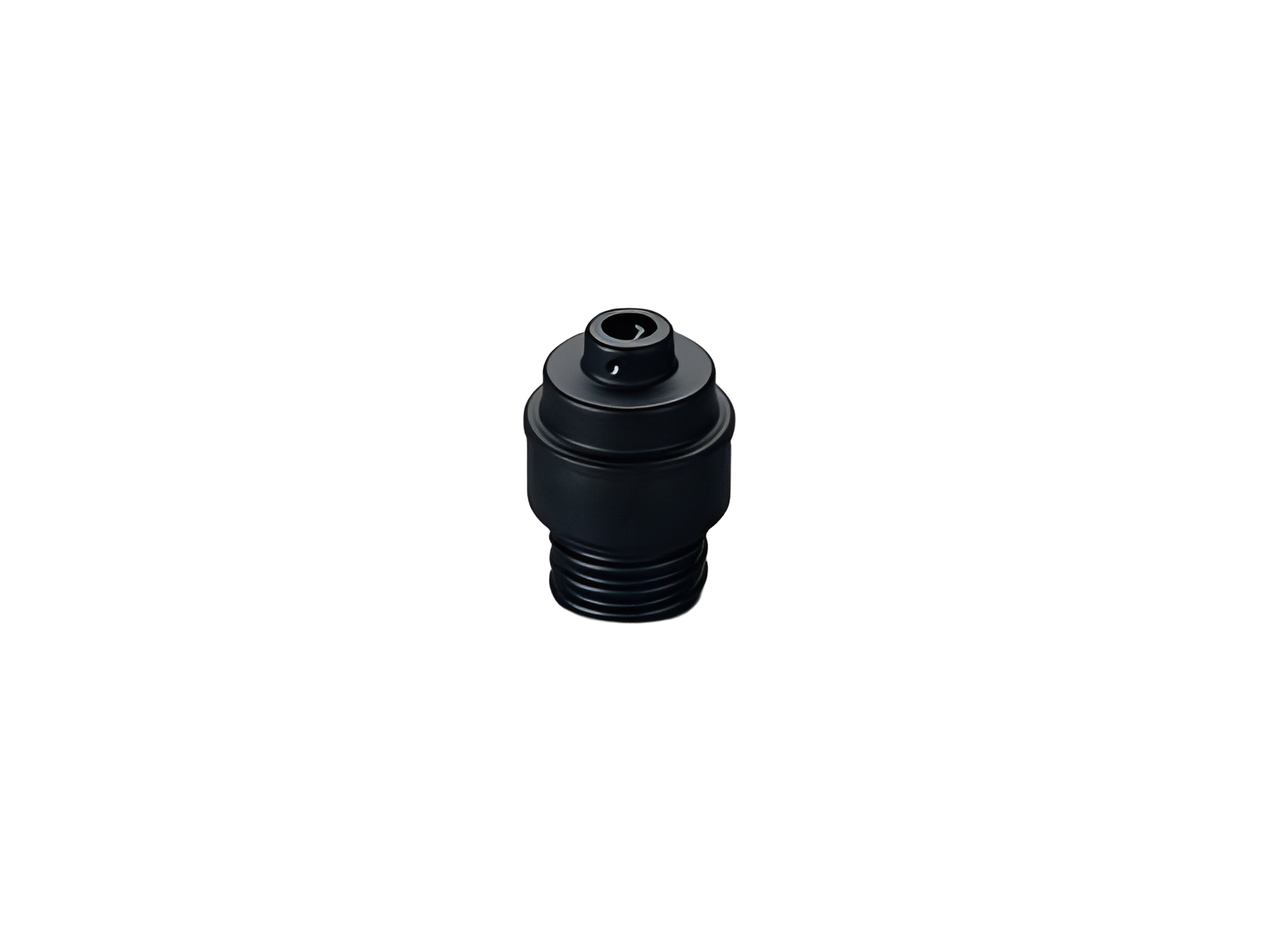

locking cap D02 version -utility- (31904)

The picture may show a similar product.

Description

Part No.: 31904000

locking cap D02 version -utility-

400 V

E 18

Product group 22
Subgroup 05
pack size 36
EAN 4021267319045
ECLASS 6.1 27142115
ECLASS 7.1 27142115
ETIM 4.0 EC001643
ETIM 5.0 EC001643

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size: D02 / E 18
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated voltage (IEC) AC: 400 V
rated voltage (IEC) DC: 250 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
weight: 1,1 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

31907000

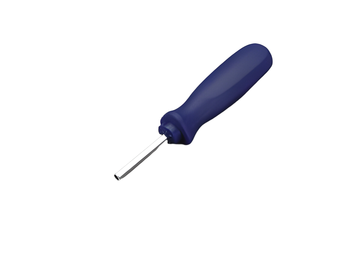

key for locking cap
utility version for D and D0
