for UL feeder circuits >250V

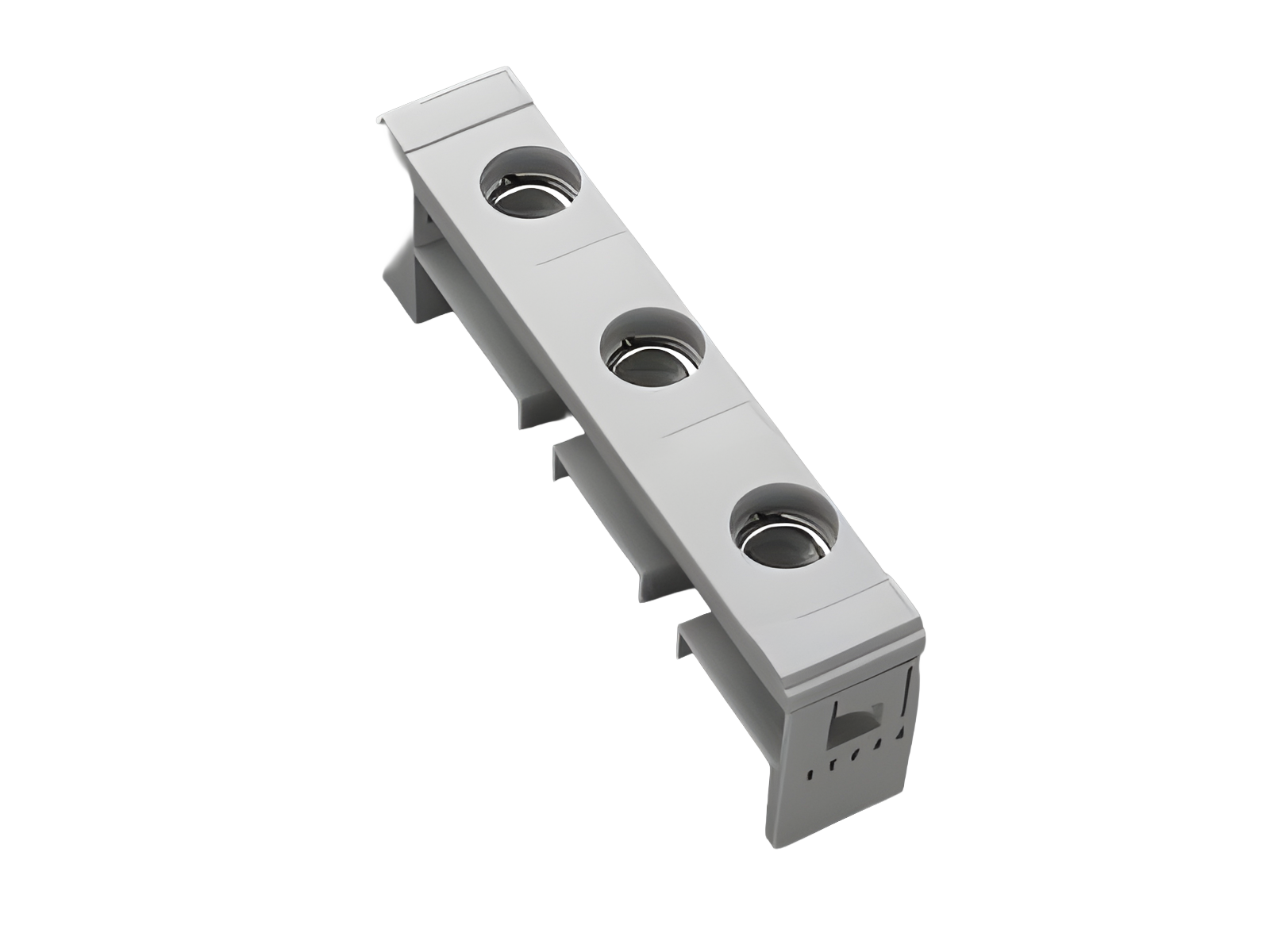

The picture may show a similar product.
Part No.: 31936000
CUSTO®60Classic
D0-fuse base, busbar mounted, 36mm
E 18 / 63 A
touch protected
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 01 |
| Subgroup | 03 |
| pack size | 6 |
| EAN | 4021267319366 |
| ECLASS 6.1 | 27142120 |
| ECLASS 7.1 | 27142120 |
| ETIM 4.0 | EC001644 |
| ETIM 5.0 | EC001644 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Approvals
VDE , DNV GL
type number: CEL18
| fuse links acc. to standard: | IEC / HD 60269-3 |
| permitted power dissipation of the fuse-link: | 5,5 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 250 V |
| rated surge voltage Uimp : | 6 kV |
| approved wth fuse links of operation class: | gG |
| short-circuit strength when protected by fuses: | 50 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3,8 W.
(The power dissipation at full load would be 5,9 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 440 V |
| max. permitted voltage (IEC) DC: | 262 V |
| Direct contact of the fuse links on the busbar | |
It can be used for branch circuits of the busbar system. The application as feeder of a busbars system is not accepted. |
| Mechanical data | |
| W x H x D: | 36 x 200 x 35 |
| weight: | 16,1 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Type of fastening: Click mechanism protects against movement Contact pressure provided by screw cap E18 Tightening torque of box terminals 4Nm
| Terminal points | |
| Not suitable for aluminium cables ! |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
| Not suitable for aluminium cables ! | |
|
Reference |
D02 busbar mounted fuse bases are also suitable for D01 busbar mounted fuse bases thanks to special holding springs and special ferrule gauge pieces. From a permanent load of 35A, the 36mm-wide version is recommended due to the heat produced. |
| permitted power dissipation of the fuse-link: | 5,5 W |
