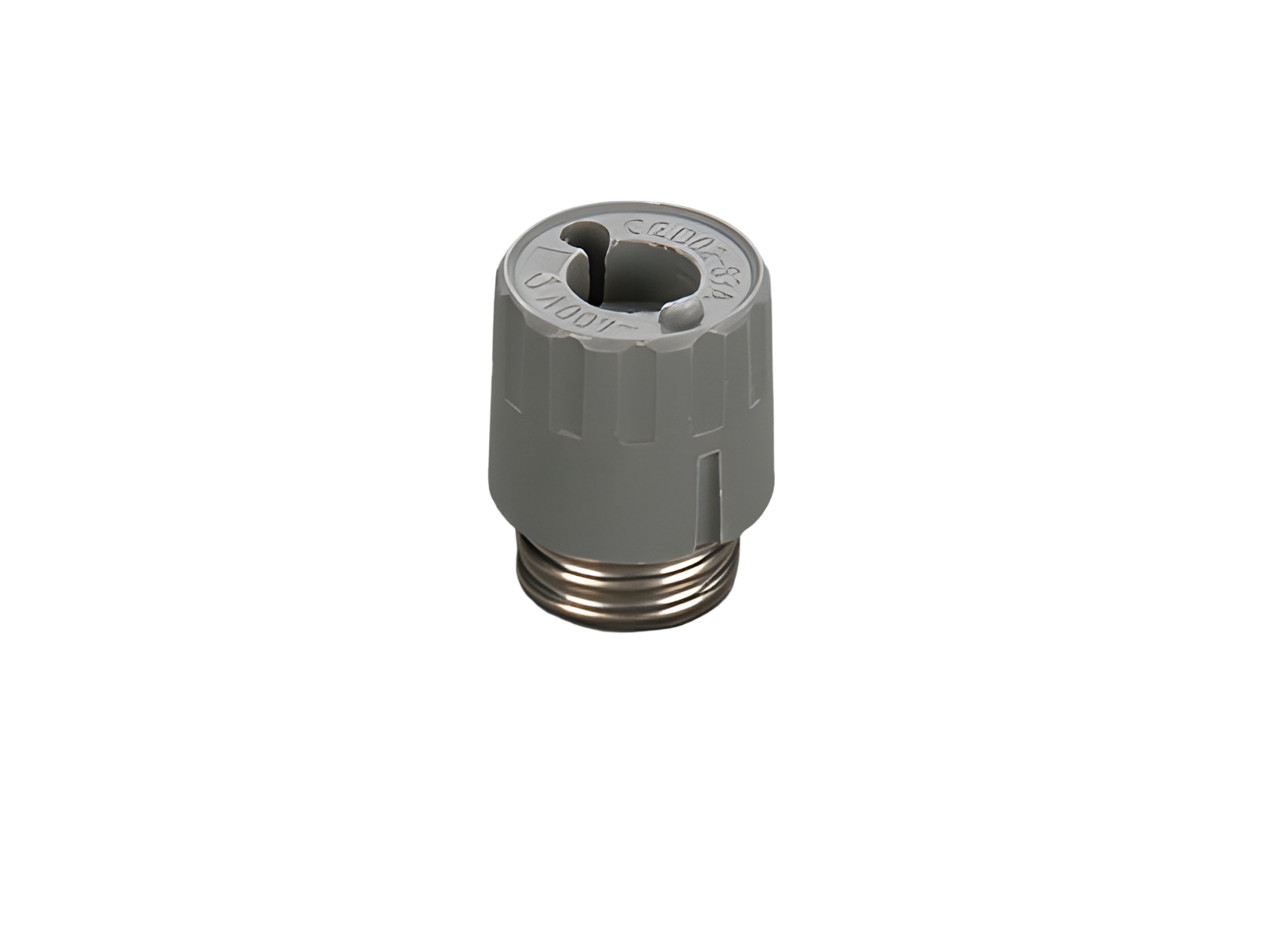

D02 screw cap, plastic (31006)

The picture may show a similar product.

Description

Part No.: 31006000

D02 screw cap, plastic

400 V

E 18

Product group 22
Subgroup 05
pack size 20
EAN 4021267310066
ECLASS 6.1 27142115
ECLASS 7.1 27142115
ETIM 4.0 EC001643
ETIM 5.0 EC001643

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size: D02 / E 18
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated voltage (IEC) AC: 400 V
rated voltage (IEC) DC: 250 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
weight: 1,3 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01424000
D0 strip cover
E 18
1 1/3-fold, 36 mm wide
More

01981000
D0 strip cover
E 18
2-fold, 54 mm wide
More

01980000
D0 strip cover
E 18
1-fold, 27 mm wide
More

01058000
CUSTO®60Classic
D0-fuse base, busbar mounted, 36mm
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
More

01492000
CUSTO®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
More

31293000
TRITON®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 3P
touch protected acc. to DGUV V3
More

01498000
CUSTO®60Classic
D0-fuse base, busbar mounted, 36mm
with distance strip
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31936000
CUSTO®60Classic
D0-fuse base, busbar mounted, 36mm
E 18 / 63 A
touch protected
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31554000
CUSTO®30Compact
D0 fuse base, busbar mounted, 36mm
E 18 / 63 A
touch protected
for busbars: 12 x 5, 10
More

31935000
CUSTO®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 63 A
touch protected
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01647000
CUSTO®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31306000
CUSTO®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 3P
touch protected
More

31303000
CUSTO®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 1P
touch protected
More
