Part No.: 31959 000

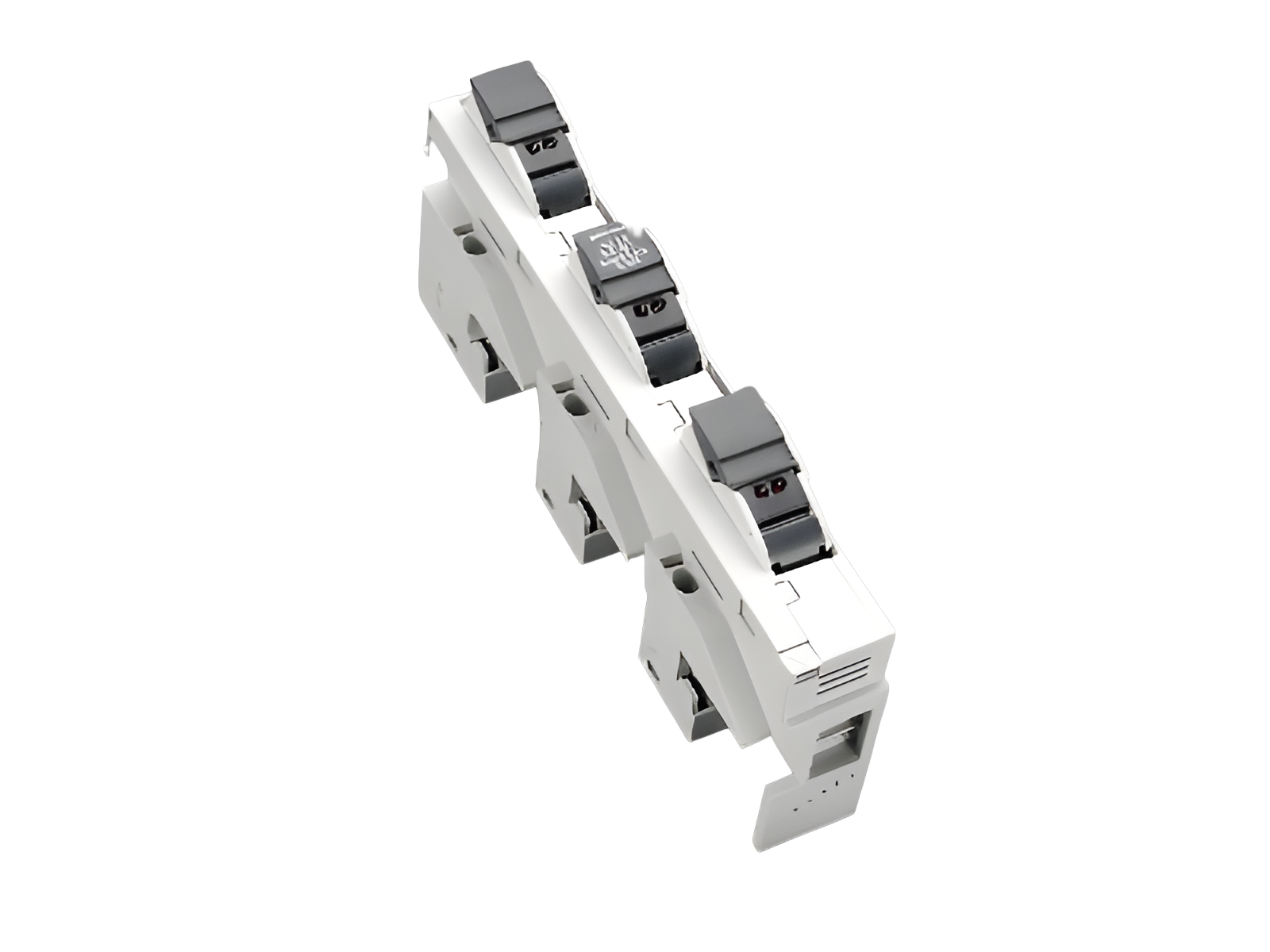

AMBUS®60Classic
busbar mounted fuse holder, with LED
Size Class CC
for fuses Class CC UL 248-4, with LED 110 - 690 V AC / DC
Class CC / 3P
indication (LED) of a tripped fuse link
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 01 |
| Subgroup | 47 |
| pack size | 4 |
| EAN | 4021267319595 |
| ECLASS 6.1 | 27142121 |
| ECLASS 7.1 | 27142121 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J
UL 4248-1
Approvals
CSA , UL
for UL feeder circuits >250V
type number: AELCC
UL file: E230163, UL category (for USA): IZLT https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
| for fuse links size: | Class CC |
| fuse links acc. to standard: | UL 248-4 |
| permitted power dissipation of the fuse-link: | 3 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system J |
| Electrical data | |
| short-circuit strength when protected by fuses: | 200 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1,2 W.
(The power dissipation at full load would be 1,8 W.)
| Details UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 30 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 200 kA |
| Mechanical data | |
| W x H x D: | 27 x 200 x 104 |
| weight: | 18,8 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Type of fastening: patented click mechanism
| Terminal points | |
| spring pulley connection | |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 6 mm² |
| Not suitable for aluminium cables ! | |
|
nach IEC: Cu 1.5 … 6 mm2 (f, re) |
|
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 3 W |
| for UL feeder circuits >250V | |
