for UL feeder circuits >250V
The picture may show a similar product.

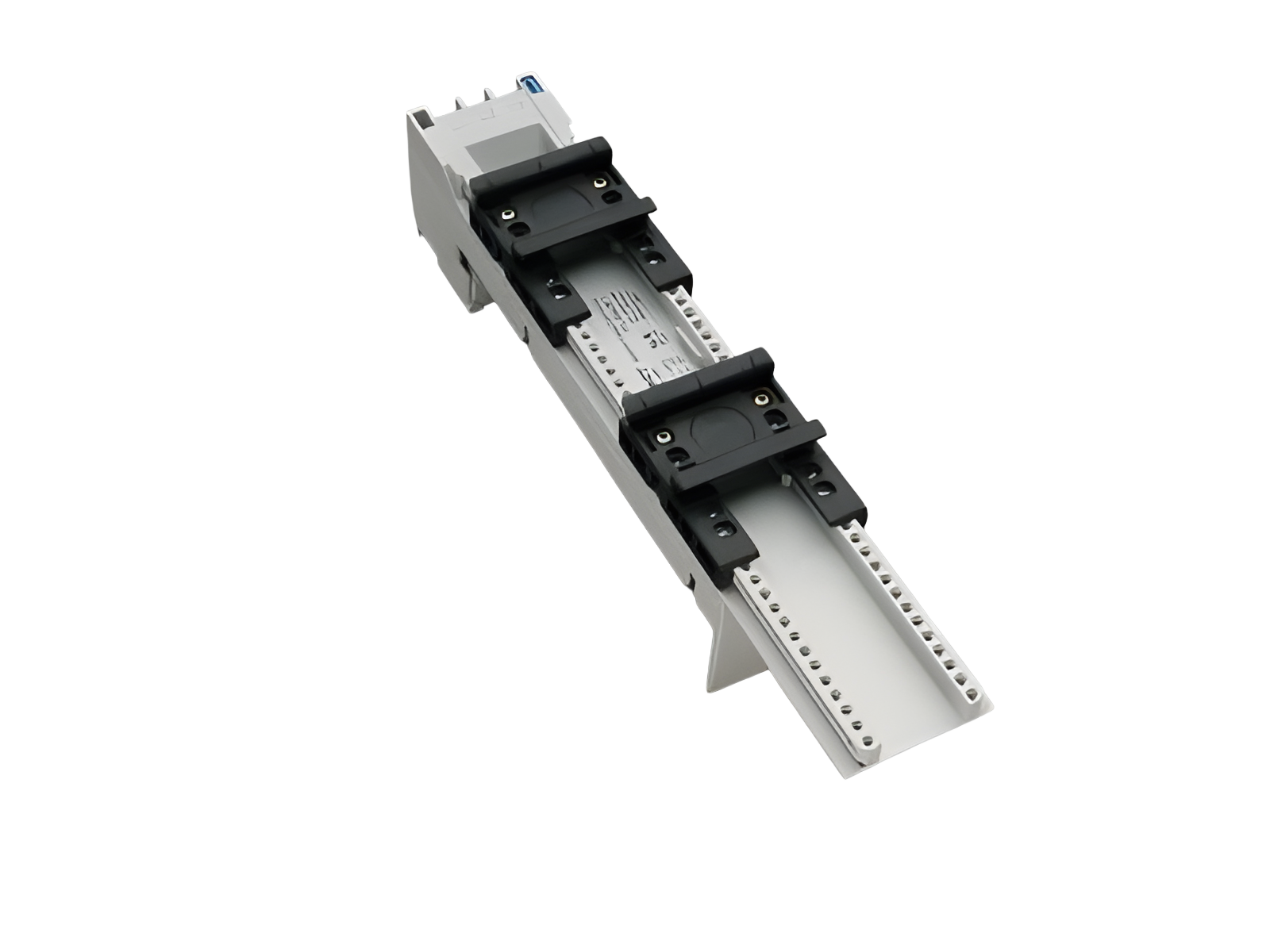

Part No.: 32439 000
EQUES®60Classic
busbar adapter 25 A
3-pole
2 adjustable mounting rails
45 x 260, with screw terminals 6mm² from rear
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 05 |
| Subgroup | 21 |
| pack size | 4 |
| EAN | 4021267324391 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL , DNV GL
for UL feeder circuits >250V
type number: EEC6025-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 25 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1,2 W.
(The power dissipation at full load would be 1,9 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 800 V |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 25 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 5 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 65 kA |
| SCCR: |
30 kA with any NKJH Comb. Motor Controller 12,5 A / 600 V AC
65 kA with any NKJH Comb. Motor Controller 25 A / 480 V AC 50 kA with any NKJH Comb. Motor Controller 32 A / 480 V AC 65 kA with any NKJH Comb. Motor Controller 16 A / 480 V AC |
| Mechanical data | |
| W x H x D: | 45 x 260 x 63 |
| weight: | 35,2 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ1 |
| wire stripping: | 10 mm |
| min. cross-section: | 0,75 mm² |
| max. cross-section: | 6 mm² |
| Md min.: | 1,6 Nm |
| Md max.: | 2,4 Nm |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
for feeder circuits as per UL508a, accessory 32973 is required |
|
|
the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter |
|
| for UL feeder circuits >250V |
32969
000
mounting rail end stop
for adjustable mounting rails
More

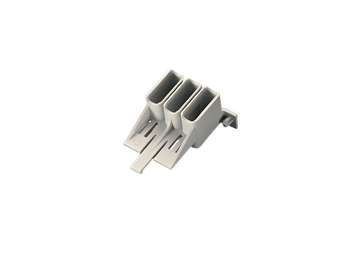

32973
000
terminal cap for UL
for busbar adapters 32436 and 32439
More

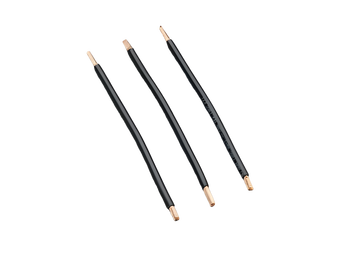

32907
000
lead AWG 10 (6 mm²), 130 mm long
for adapters with cage clamps
More

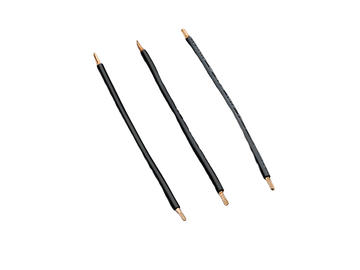

32921
000
lead AWG 14 (2.5 mm²), 105 mm long
for adapters with cage clamps
More
32916
000A
lead AWG 10 (6 mm²), 280 mm long
for adapters with cage clamps
More
32929
000A
lead AWG 12 (4 mm²), 190 mm long
for adapters with cage clamps
More
32935
000A
lead AWG 10 (6 mm²), 190 mm long
for adapters with cage clamps
More
32918
000A
lead AWG 14 (2.5 mm²), 190 mm long
for adapters with cage clamps
More
32963
000
side-mounted module for busbar adapters
attachable to both sides
9 x 200
for: EEC60..
More
32979
000A
positioning piece for Eaton PKZ
for 45mm wide adapters with adjustable mounting rails
More
32952
000A
positioning piece for Siemens S00 and S0
for 45mm wide adapters with adjustable mounting rails
More
