for UL feeder circuits >250V

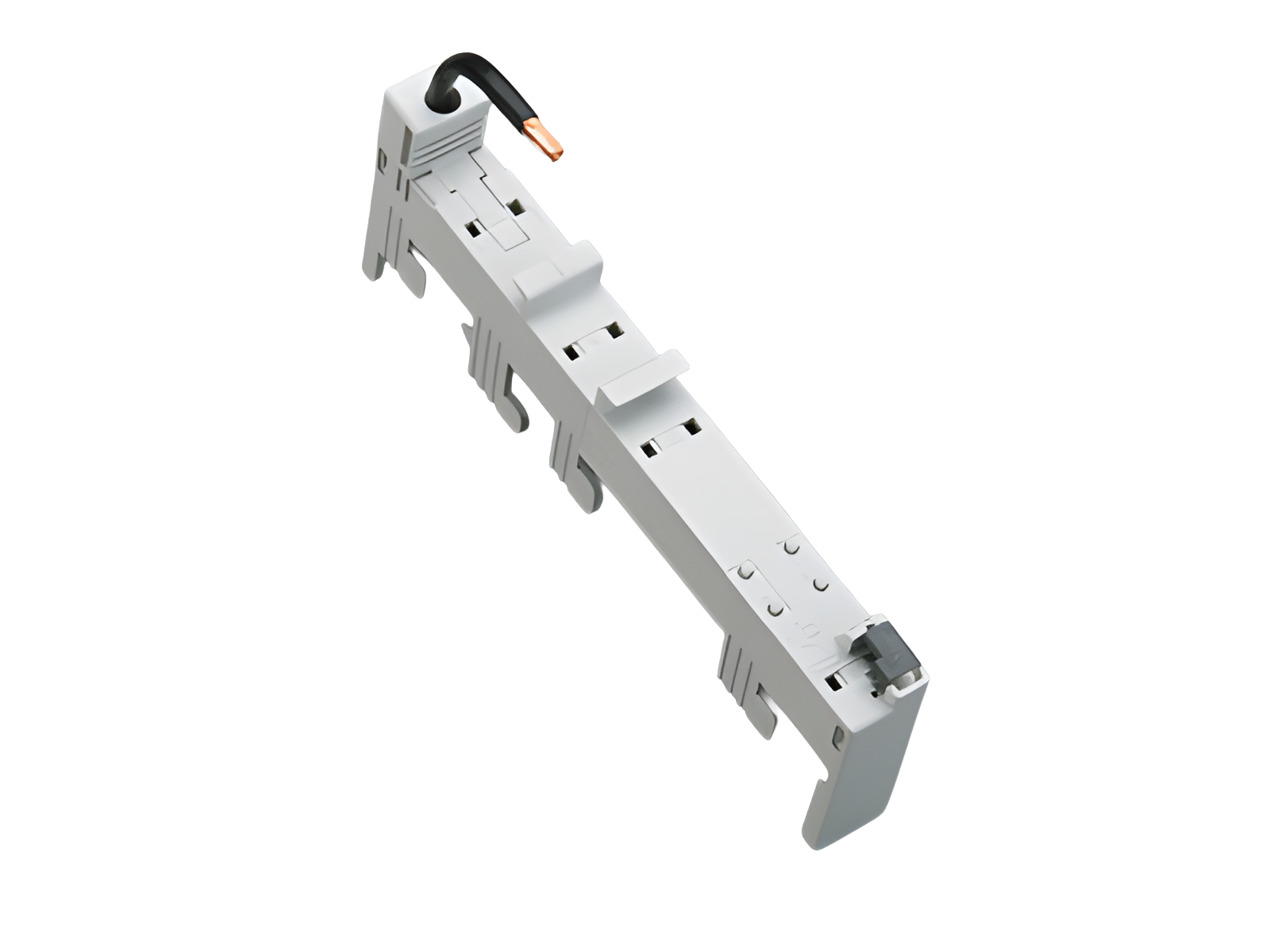

The picture may show a similar product.
Part No.: 32629000
EQUES®30Compact
busbar adapter 1-pole, 32 A
1 fixed mounting rail
18 x 160 / 6 mm²
for busbars 12 x 5
System
30Compact 5P
| Product group | 05 |
| Subgroup | 19 |
| pack size | 12 |
| EAN | 4021267326296 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Rated current (IEC): | 32 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,6 W.
(The power dissipation at full load would be 1,0 W.)
| Mechanical data | |
| W x H x D: | 18 x 160 x 82 |
| weight: | 6,0 kg/100 |
| poles: | 1-pole |
| for busbars: | 12 x 5 |
for circuit breakers
