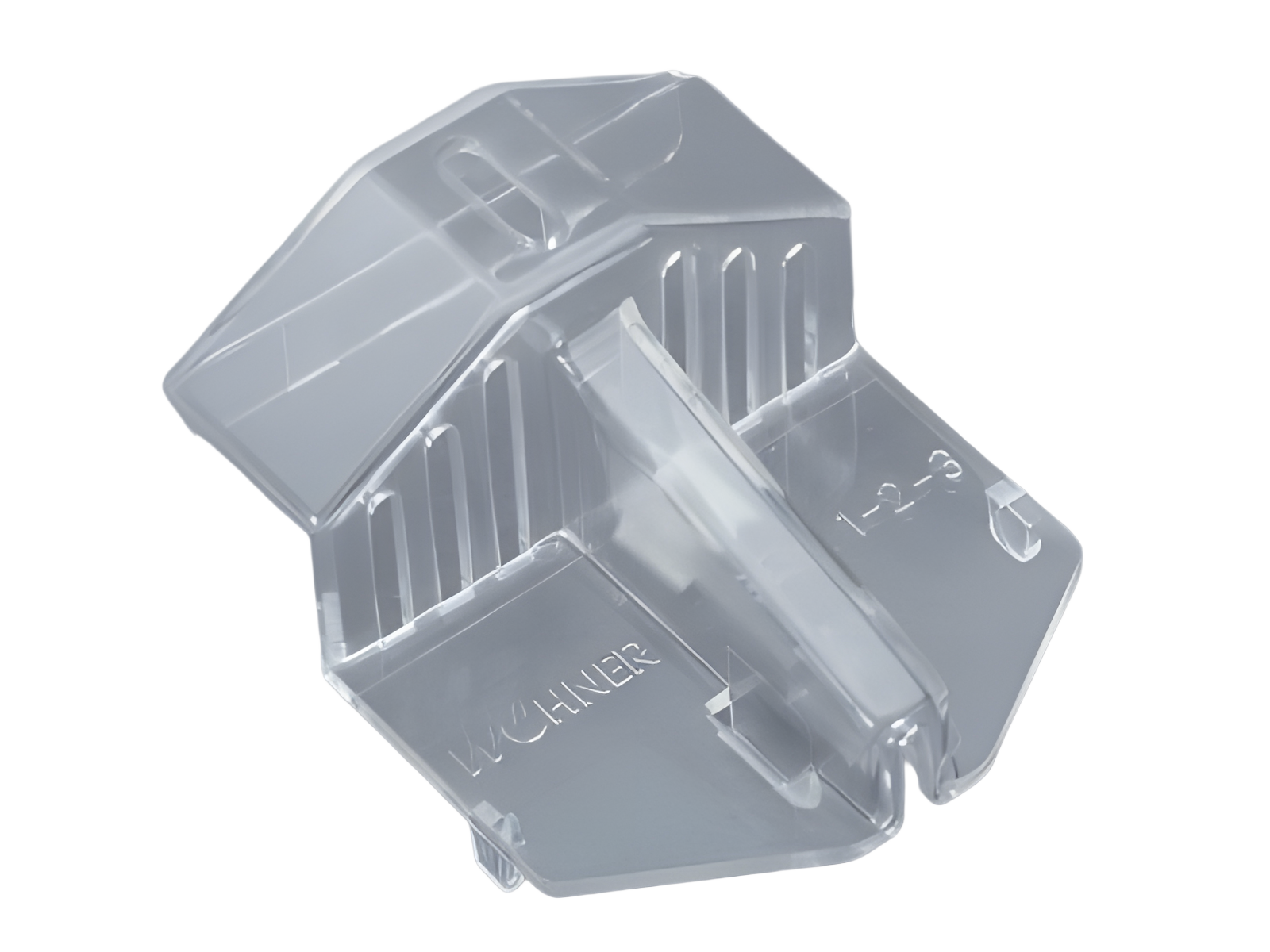

grip lug cover (79449)

The picture may show a similar product.

Description

Part No.: 79449000

grip lug cover

for NH fuse-base

NH 1 - 3

System

60Classic, 100Energy

Product group 10
Subgroup 66
pack size 30
EAN 4021267794491
ECLASS 6.1 27149217
ECLASS 7.1 27149217
ETIM 4.0 EC001660
ETIM 5.0 EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Mechanical data
W x H x D: 55 x 63 x 35
weight: 1,5 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03294000
QUADRON®Panel
NH fuse-base 600 A, panel mounting, for PV
both sides screw M12
size 2XL / 3L, 1P, with touch protection
