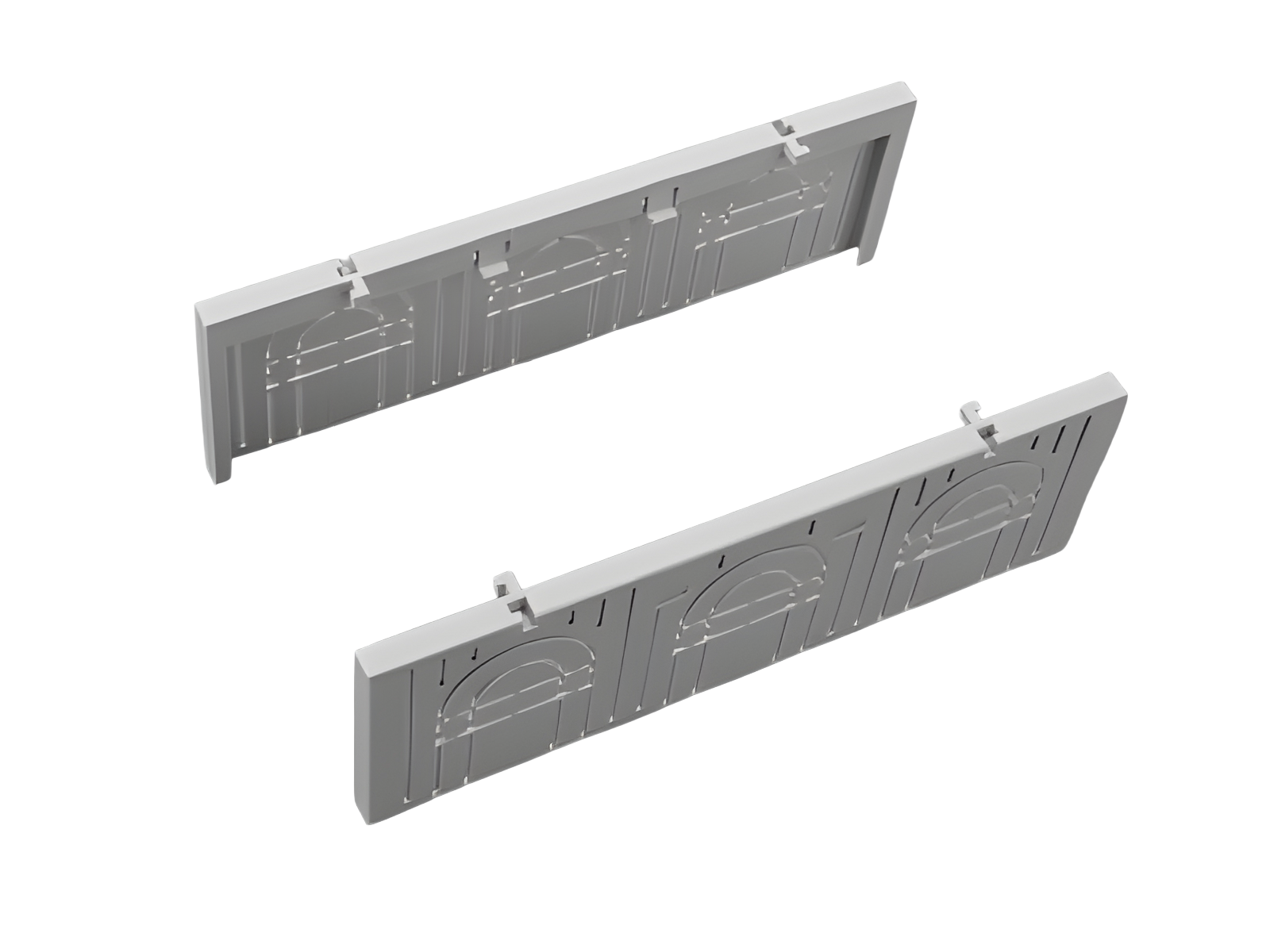

connection shroud (33418)

The picture may show a similar product.

Description

Part No.: 33418000

connection shroud

for NH fuse-switch-disconnector size 2

System

60Classic

Product group 09
Subgroup 51
pack size 2
EAN 4021267334185
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 209 x 71 x 8
weight: 4,0 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33331000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electronic fuse monitoring
More

33150000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33202000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
More

33161000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33326000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33602000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More
