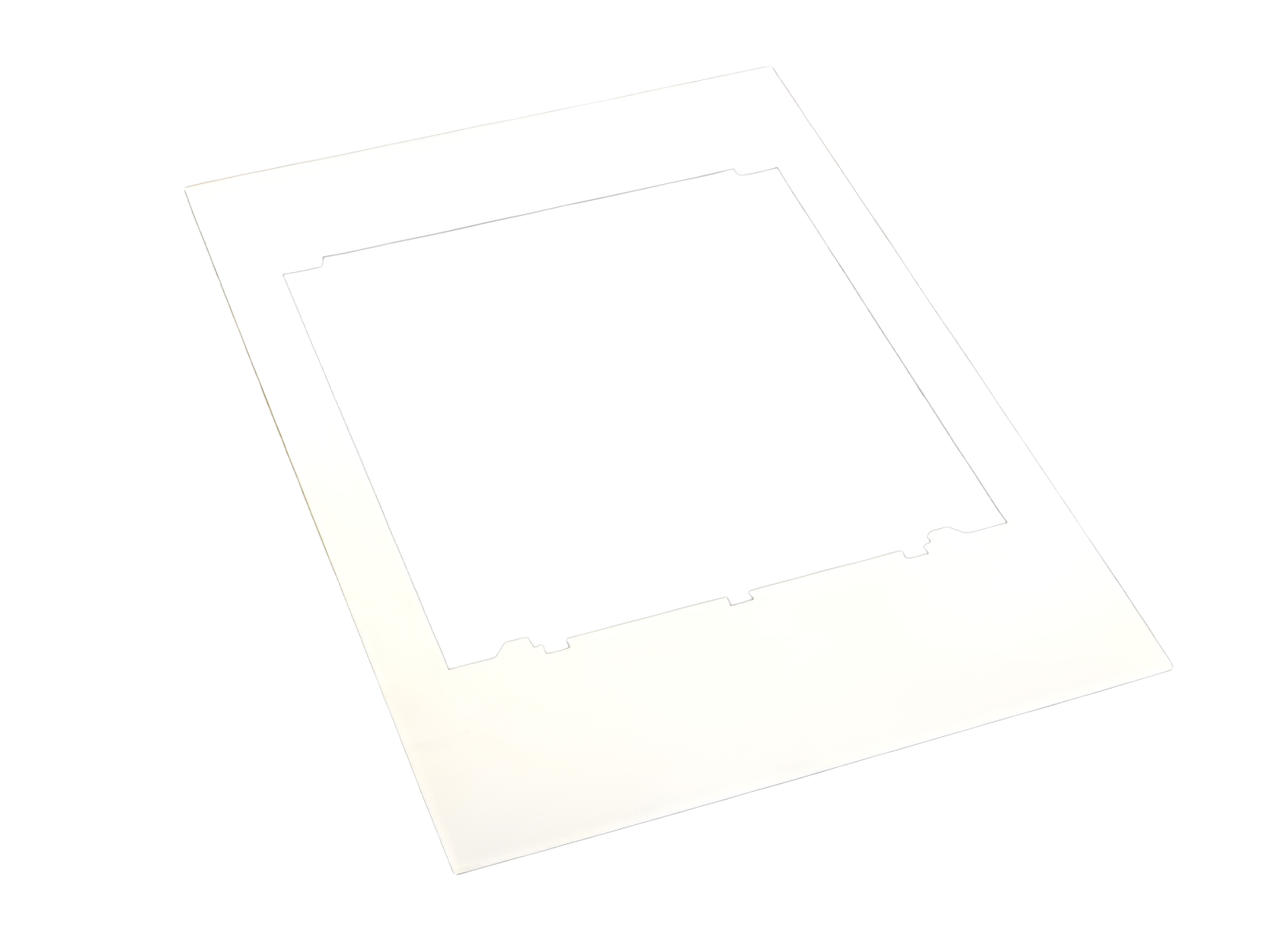

trim frame, single (33153)

The picture may show a similar product.

Description

Part No.: 33153000

trim frame, single

248 x 330

size 2

Product group 09
Subgroup 51
pack size 1
EAN 4021267331535
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 248 x 330 x 2
weight: 9,4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33150000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33151000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electromechanical fuse monitoring
More

33202000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
More

33331000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electronic fuse monitoring
More

33161000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33326000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More
