Obrázek může zobrazovat podobný produkt.
Part No.: 33217 000
pojistový odpínač NH velikost 000, 125 A, montáž na panel
rámová svorka
for mounting plate
System
Panel
Advantages of the product
Self-closing inspection holes are available in the cover.
| Produktová skupina | 09 |
| Podskupina | 01 |
| velikost balení | 1 |
| EAN | 4021267332174 |
| ECLASS 14.0 | 27142108 |
| ETIM 5.0 | EC001040 |
| ETIM 8.0 | EC001040 |
| ETIM 10.0 | EC001040 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Schválení dle norem
IEC (CB) , UL , CCC , DNV GL
for UL feeder circuits >250V
typové číslo: LTS-000
EAC Type: NH
| pro velikost pojistek: | NH 000 |
| pojistková vložka podle na standardu: | IEC / HD 60269-2 |
| povolené rozptylování energie pojistkové vložky: | 9 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 125 A |
| jmenovité napětí (IEC) AC: | 690 V |
| jmenovité napětí (IEC) DC: | 440 V |
| jmenovité izolační napětí Ui AC: | 800 V |
| jmenovité izolační napětí Ui DC: | 500 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-21B (690 V / 80 A) AC-22B (500 V / 100 A) AC-22B (400 V / 125 A) |
| kond. zkratový proud s pojistkami (AC): | 50 kA / 690 V |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3,2 W.
(The power dissipation at full load would be 5,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. povolené napětí (IEC) DC: | 800 V |
| further utilisation category DC (IEC 60947-3): | DC specifications: 2 current paths (L1,L3) in series DC-22B (440V/63A) DC-22B (220V/100A) DC-21B (440V/80A) DC-21B (220V/125A) |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| min. permitted operation temperature | -40°C |
| max. permitted operation temperature | 55°C |
| In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. detailed information upon inquiry When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed. |
| Detaily UL | |
| Standardy | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Elektrické údaje UL | |
| jmenovitý proud (UL): | 125 A |
| jmenovité napětí (UL) AC: | 600 V |
| jmenovitá frekvence (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Mechanické údaje | |
| Š x V x H: | 89 x 143 x 75 |
| hmotnost: | 57,2 kg/100 |
| póly: | 3-pólový |
| Mounting: | for mounting plate |
| čelní stupeň ochrany: | IP30 |
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 50 mm² |
| re: | 1.5 - 10 mm² |
| rm: | 16 - 50 mm² |
| f: | 2.5 - 50 mm² |
| f + AE: | 1.5 - 50 mm² |
| (f + AE may not fit with max. cross-section) | |
| Not suitable for aluminium cables ! | |
| Terminal space: | 10 x 10 |
| Vlastnosti materiálu | |
| halogen-free: | No |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| povolené rozptylování energie pojistkové vložky: | 9 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |

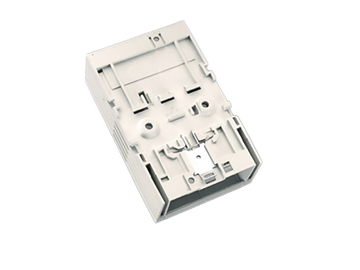

33247
000
sada pro rychlou montáž
pro 1 montážní lištu
velikost 000
Více
33906
000
hřebenová přípojnice 3-pólová, pro 2 NH-LTS
35 mm²
pro: 33217
Více

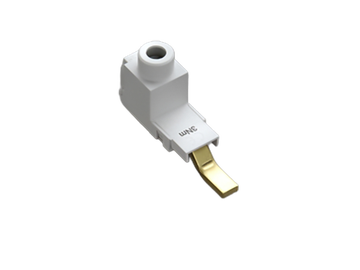

33907
000
připojovací svorka, přední připojení
pro 3-pólovou hřebenovou přípojnici 35 mm², použitelné pro NH 000 s rámovou svorkou
4 - 35 mm²
Více

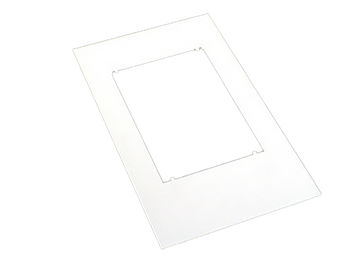

33219
