Part No.: 01250 000

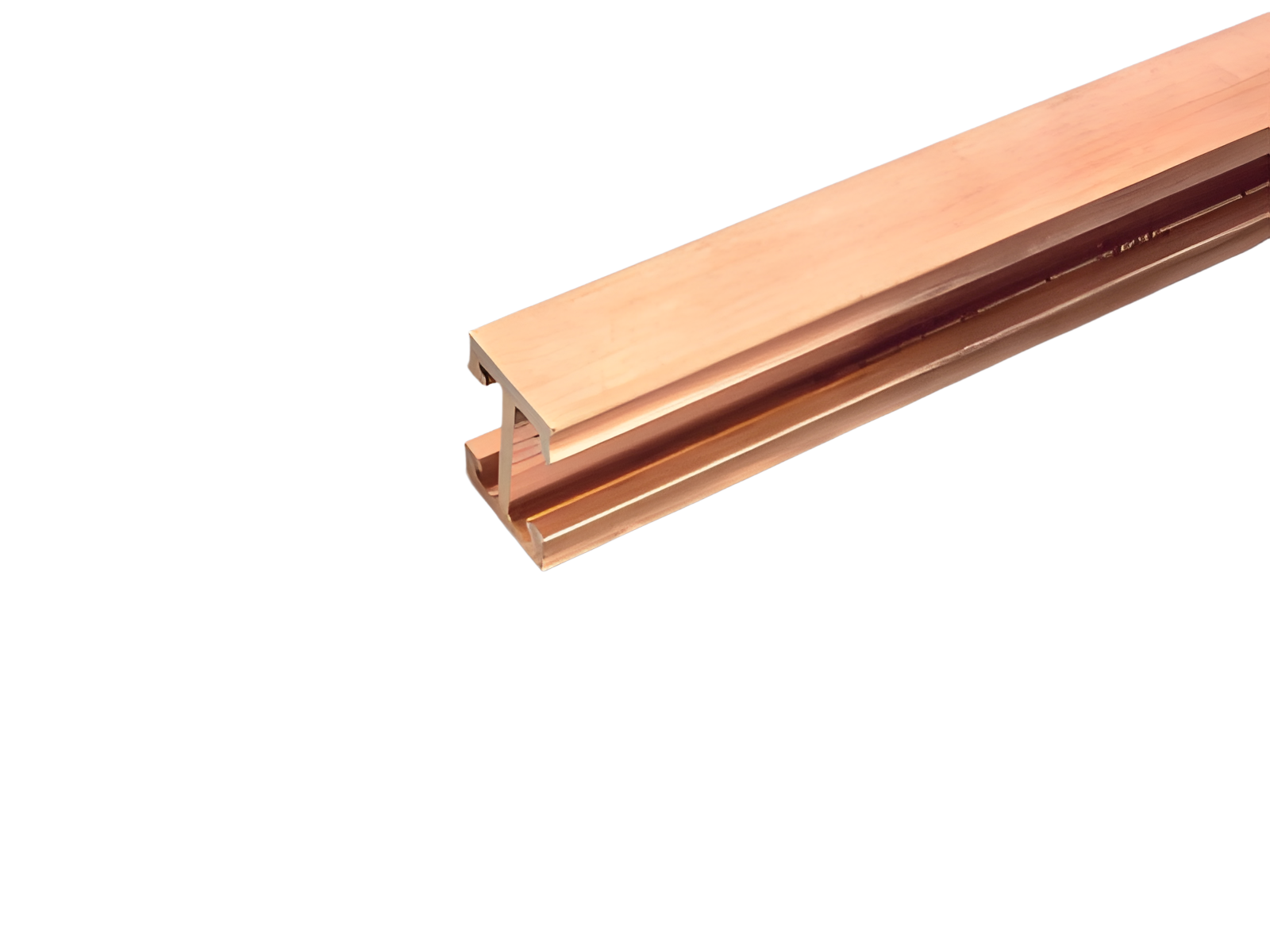

přípojnice dvojitého profilu T 500 mm²
material: copper Cu-ETP (No. CW004A) acc. to EN 13601 (99.9% copper), strength class R300 (300 N/mm²)
délka 2,40 m, prostá
System
60Classic, centre feed unit
| Produktová skupina | 06 |
| Podskupina | 90 |
| velikost balení | 1 |
| EAN | 4021267012502 |
| ECLASS 14.0 | 27370303 |
| ETIM 5.0 | EC001522 |
| ETIM 8.0 | EC001522 |
| ETIM 10.0 | EC001522 |
Standardy
IEC 61439-1:2020
UL 508
Schválení dle norem
CSA , UL , DNV GL
for UL feeder circuits >250V
typové číslo: H500-L
EAC Type: BB-P
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC schválení: certifikace není vyžadována
| Detaily IEC | |
| Standardy | |
| IEC 61439-1:2020 |
Elektrické údaje
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 102,4 W.
(The power dissipation at full load would be 160,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| current at 55 K: | 1250 A |
| min. permitted operation temperature | -40°C |
| diagram current capacity (IEC) |
| Detaily UL | |
| Standardy | |
| UL 508 |
| for UL feeder circuits >250V |
considering the permitted temperature rise at the concrete installation conditions the following capacity could be accepted by UL (file E197039 |
|
| max. zatížitelnost dle UL 508: | 1200 A |
| Notice the rated voltage of the used busbar support in the application. | |
| Mechanické údaje | |
| Š x V x H: | 2400 x 30 x 40 |
| hmotnost: | 1060,0 kg/100 |
| cross-section: | 500 mm² |
Edge radius 0.5
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Please respect the insulation characteristics of the busbar support for your application. | |
|
see product description of the used busbar support |
|
| for UL feeder circuits >250V |
01252
000
kryt přípojnice
pro profil dvojitého a trojitého T, délka 1 m
ochraný kryt proti nebezpečnému dotyku
Více
