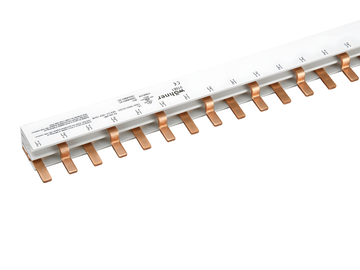

Obrázek může zobrazovat podobný produkt.
Part No.: 31562 000
připojovací modul 1-pólová
dircet feeding of the comb-type busbar
2,5 - 50 mm² / AWG 14 - 1

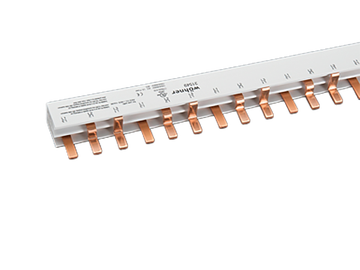

pro 31548, 31549, 31561
| Produktová skupina | 07 |
| Podskupina | 26 |
| velikost balení | 25 |
| EAN | 4021267315627 |
| ECLASS 14.0 | 27371392 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standardy
IEC 61439-1:2020
UL 508
Schválení dle norem
UL
for UL feeder circuits >250V
typové číslo: CTB-TB50
EAC Type: TE-CTB
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
| Detaily IEC | |
| Standardy | |
| IEC 61439-1:2020 |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 160 A |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. povolené napětí (IEC) AC: | 1000 V |
| max. povolené napětí (IEC) DC: | 1000 V |
| Detaily UL | |
| Standardy | |
| UL 508 |
| for UL feeder circuits >250V |
| Elektrické údaje UL | |
| jmenovitý proud (UL): | 115 A |
| jmenovité napětí (UL) AC: | 1000 V |
| jmenovitá frekvence (UL): | 50 / 60 Hz |
| jmenovité napětí (UL) DC: | 1000 V |
| Mechanické údaje | |
| Š x V x H: | 18 x 41 x 30 |
| hmotnost: | 3,0 kg/100 |
| póly: | 1-pólový |
| stupeň ochrany: | IP20 |
| Terminal points | |
| min. cross-section: | 6 mm² |
| max. cross-section: | 50 mm² |
| Md min.: | 3,5 Nm |
| Md max.: | 3,5 Nm |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 14 |
| max. cross-section UL: | AWG 1 |
| točivý moment (UL): | 35 lb-in |
|
2,5 - 50 mm² (14 - 1 AWG Copper wire) Eindrätig und Mehrdrähtig |
|
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
|
Recommended stripping of the insulation on the connection lead approx. 14mm |
|
| for UL feeder circuits >250V |
