Obrázek může zobrazovat podobný produkt.
Part No.: 33367 000

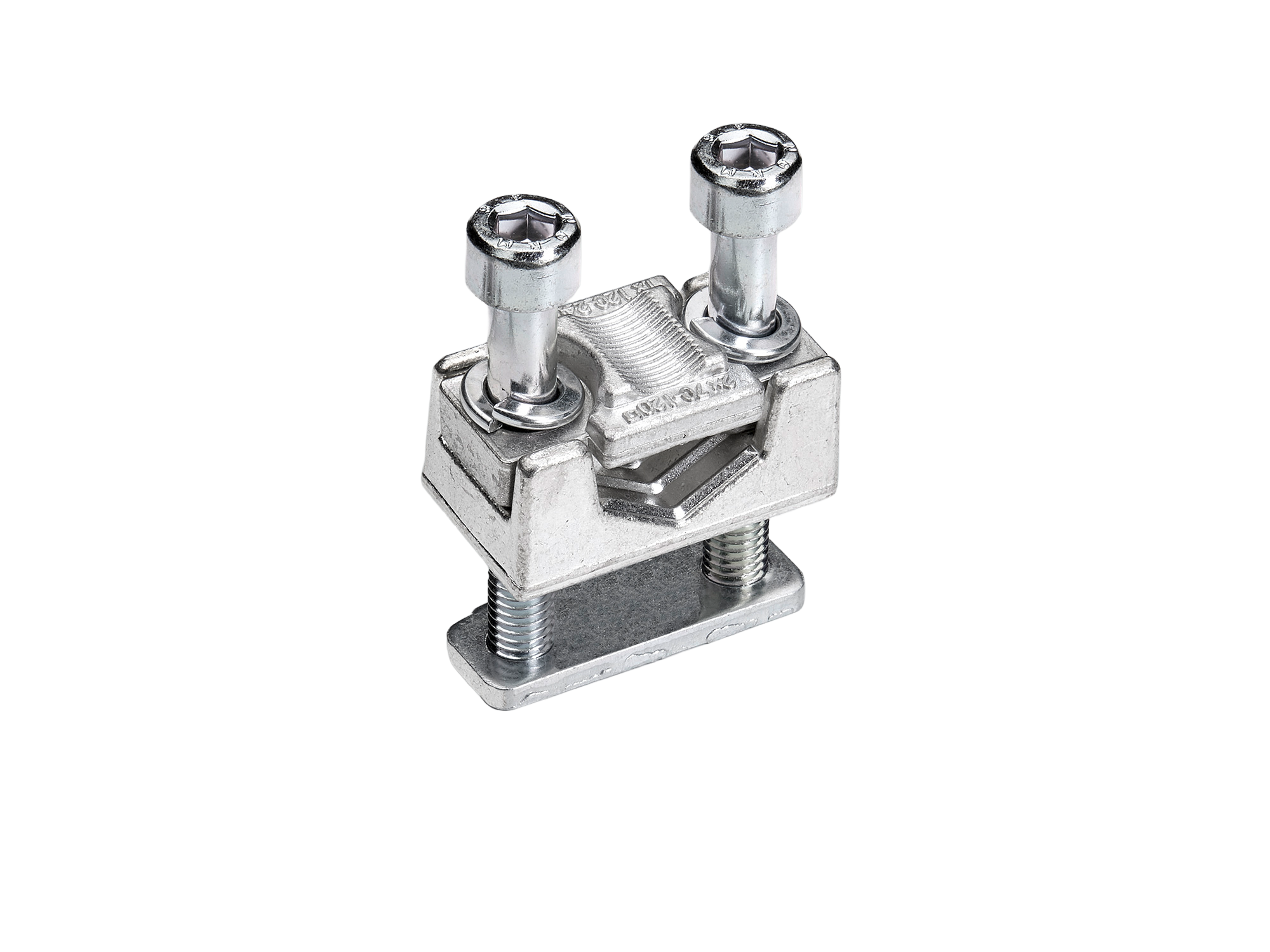

prizmová svorka jednoduchá pro vodiče Cu a Al
120 - 240 mm²
pro LTS-F 400, LTS 630
| Produktová skupina | 14 |
| Podskupina | 51 |
| velikost balení | 3 |
| EAN | 4021267333676 |
| ECLASS 14.0 | 27371492 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
EAC Type: AC-A
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Mechanické údaje | |
| hmotnost: | 20,0 kg/100 |
Prismenklemme einfach für Cu-Leiter (rm, sm, f, f+AE)
| Terminal points | |
| min. cross-section: | 120 mm² |
| max. cross-section: | 240 mm² |
|
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
|
120 - 240 |
|
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
|
determined by main product |
|
