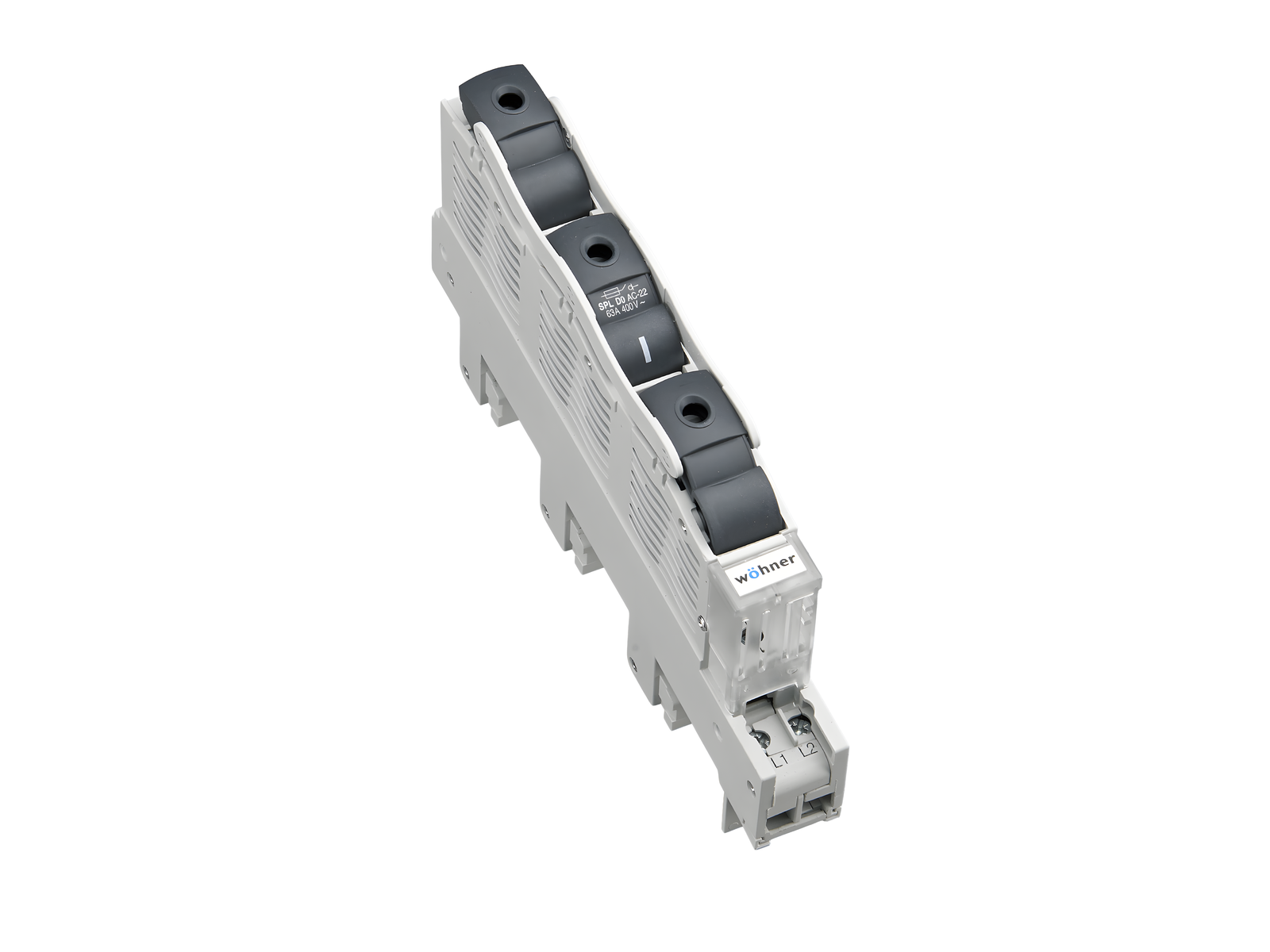

Obrázek může zobrazovat podobný produkt.
Part No.: 31158 000
SECUR 60Classic PowerLiner
D0 pojistkový odpínač, montáž na přípojnice
pro pojistky D01 a D02
63 A / 3P
připojení zdola
pro přípojnici 12, 15, 20, 25, 30 x 5, 10 a profilové přípojnice
3-pólové / 1-pólové spínání
System
60Classic
| Produktová skupina | 01 |
| Podskupina | 42 |
| velikost balení | 1 |
| EAN | 4021267311582 |
| ECLASS 14.0 | 27142110 |
| ETIM 5.0 | EC000277 |
| ETIM 8.0 | EC000277 |
| ETIM 10.0 | EC000277 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Schválení dle norem
VDE , CCC
typové číslo: SPL-D0
EAC Type: D0
CCC certificate: 2018010302128773
| pro velikost pojistek: | D0 |
| pojistková vložka podle na standardu: | IEC / HD 60269-3 |
| povolené rozptylování energie pojistkové vložky: | 5,5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 63 A |
| jmenovité napětí (IEC) AC: | 400 V |
| jmenovité napětí (IEC) DC: | 110 V |
| jmenovité izolační napětí Ui AC: | 500 V |
| jmenovité izolační napětí Ui DC: | 250 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23A (400 V) |
| kond. zkratový proud s pojistkami (AC): | 50 kA / 400 V |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6,7 W.
(The power dissipation at full load would be 10,5 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| further utilisation category DC (IEC 60947-3): | DC-21B (48V) 1 pole DC-21B (110V) 2 poles |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| max. permitted operation temperature | 65°C |
| for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3 utilisation category as per VDE 0638: AC22 |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanické údaje | |
| Š x V x H: | 27 x 220 x 100 |
| hmotnost: | 75,9 kg/100 |
| póly: | 3-pólový |
| pro přípojnici: | 12, 15, 20, 25, 30 x 5, 10 a profilové přípojnice |
| čelní stupeň ochrany: | IP20 |
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 12 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 16 mm² |
| Md min.: | 2,0 Nm |
| Md max.: | 2,5 Nm |
| Not suitable for aluminium cables ! | |
|
frame terminal: |
|
| Vlastnosti materiálu | |
| Material: | Plastic |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
|
SECUR®PowerLiner can be fitted with D0 adapter sleeves. With reducer insert (Part no. 31902) and adapter sleeves, also suitable for D01 fuse links. The use of the side module part no. 31901 is recommended for continuous loads of 35 A or greater. |
|
| povolené rozptylování energie pojistkové vložky: | 5,5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
