for UL feeder circuits >250V
Obrázek může zobrazovat podobný produkt.
Part No.: 33014 000A

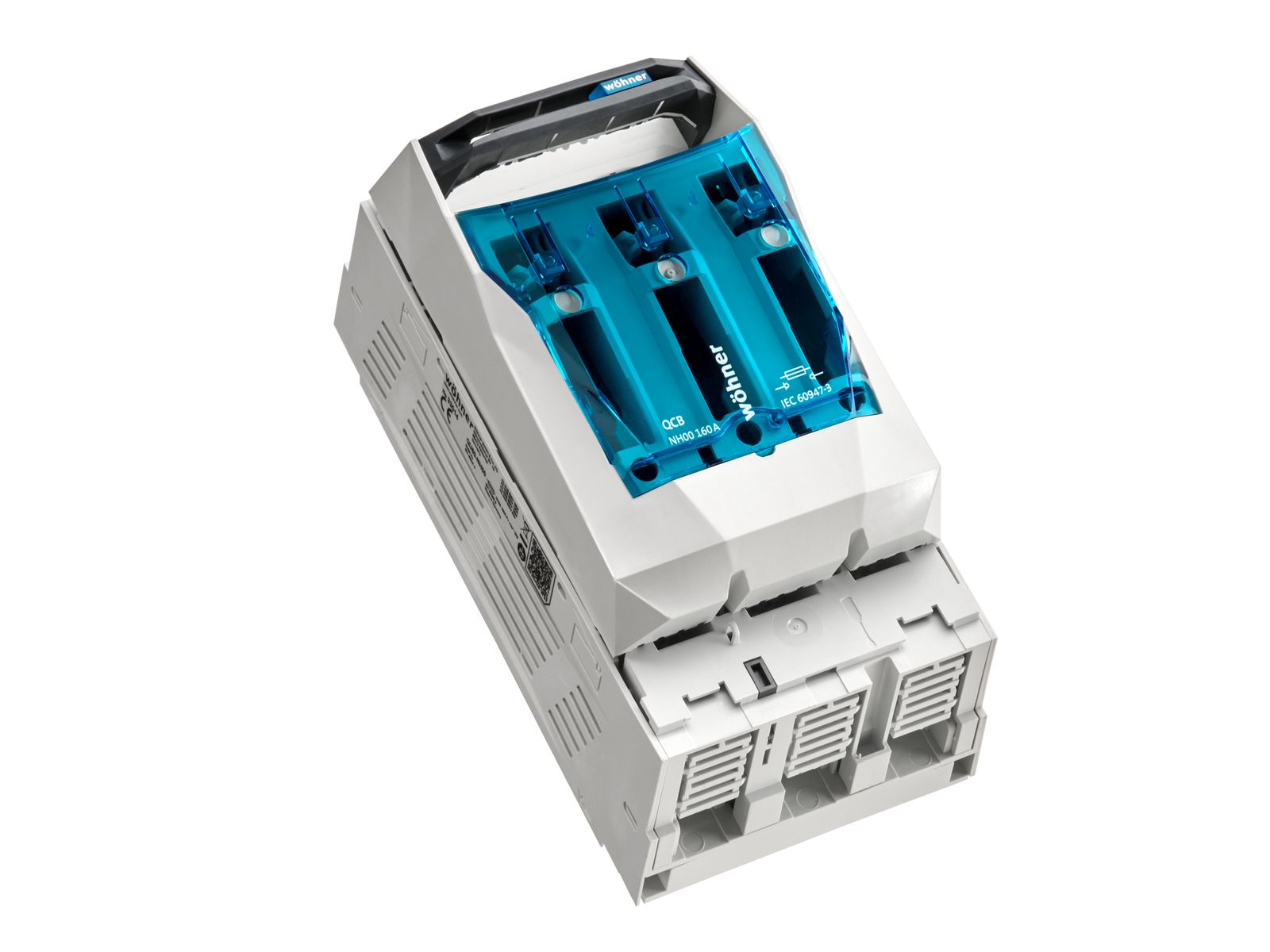

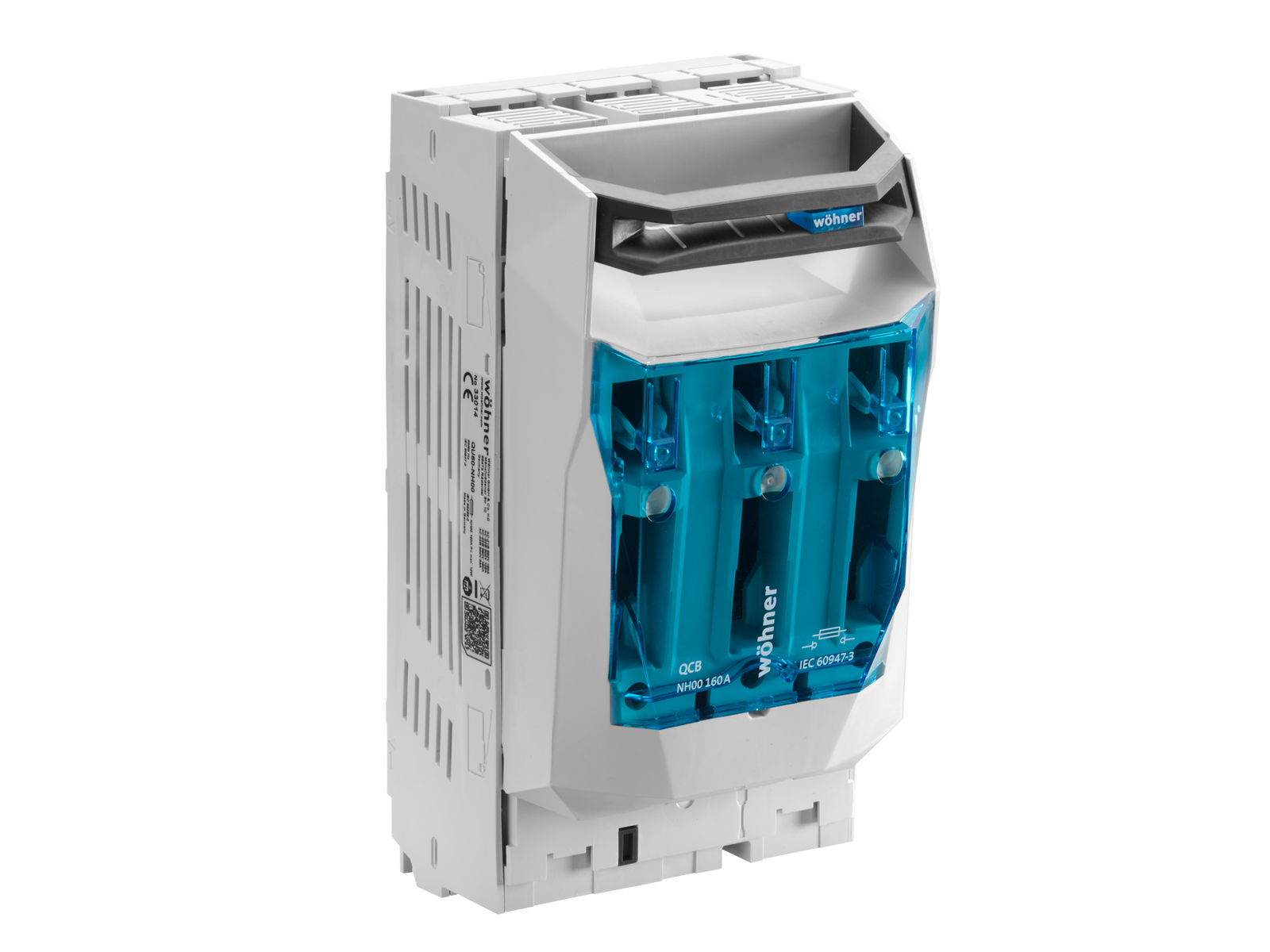

QUADRON CrossBoard
NH fuse switch-disconnector size 00, 160 A
rámová svorka
připojení shora nebo zdola
System
CrossBoard® 800 A
Advantages of the product
Quick and safe conversion of the cable outlet side for top and bottom connection
Simple and safe snapping installation and contacting without tools
It is not necessary to remove the protection cover to connect the cables
| Produktová skupina | 09 |
| Podskupina | 70 |
| velikost balení | 1 |
| EAN | 4021267330149 |
| ECLASS 14.0 | 27142108 |
| ETIM 5.0 | EC001040 |
| ETIM 8.0 | EC001040 |
| ETIM 10.0 | EC001040 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
typové číslo: QU60-NH00
| pro velikost pojistek: | NH 000, NH 00 |
| pojistková vložka podle na standardu: | IEC / HD 60269-2 |
| povolené rozptylování energie pojistkové vložky: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 160 A |
| jmenovité napětí (IEC) AC: | 800 V |
| jmenovité izolační napětí Ui AC: | 800 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-21B (690V/ 160A) AC-22B (500V/ 160A) AC-22B (690V/ 125A) AC-22B (800V/ 63A) |
| kond. zkratový proud s pojistkami (AC): | 120 kA / 500 V AC |
| 100 kA / 690 V AC | |
| 80 kA/ 800 V AC | |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11,3 W.
(The power dissipation at full load would be 17,7 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| min. permitted operation temperature | -40°C |
| max. permitted operation temperature | 55°C |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed. | |
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation |
| Mechanické údaje | |
| Š x V x H: | 106 x 200 x 110 |
| hmotnost: | 100,0 kg/100 |
| póly: | 3-pólový |
| čelní stupeň ochrany: | IP30 |

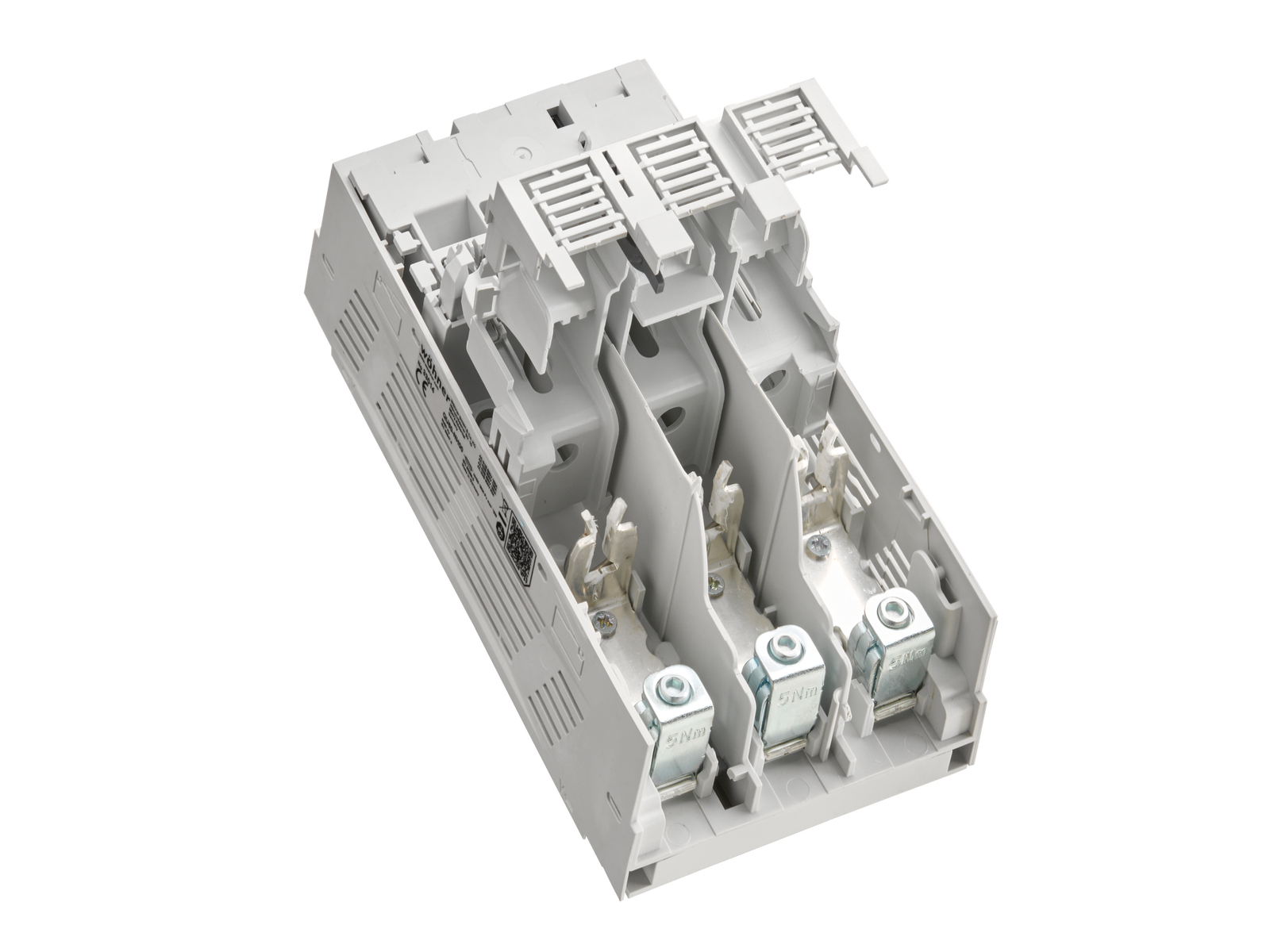

Busbar connector: externally tensioned contacting, convenient click mechanism
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 70 mm² |
| re: | 1.5 - 70 mm² |
| rm: | 1.5 - 70 mm² |
| rm + AE: | 1,5 - 70 mm² |
| f: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 5,0 Nm |
| Md max.: | 6,0 Nm |
| Not suitable for aluminium cables ! | |
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
|
based on the AC and DC switching capacities and considering the overload conditions as given in the above mentioned standards the following distances to earthed metal parts have to be respected: |
|
| požadovaná mezera zhora: | 100 mm |
| požadované mezery po stranách: | 50 mm |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| povolené rozptylování energie pojistkové vložky: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
