for UL feeder circuits >250V
Obrázek může zobrazovat podobný produkt.

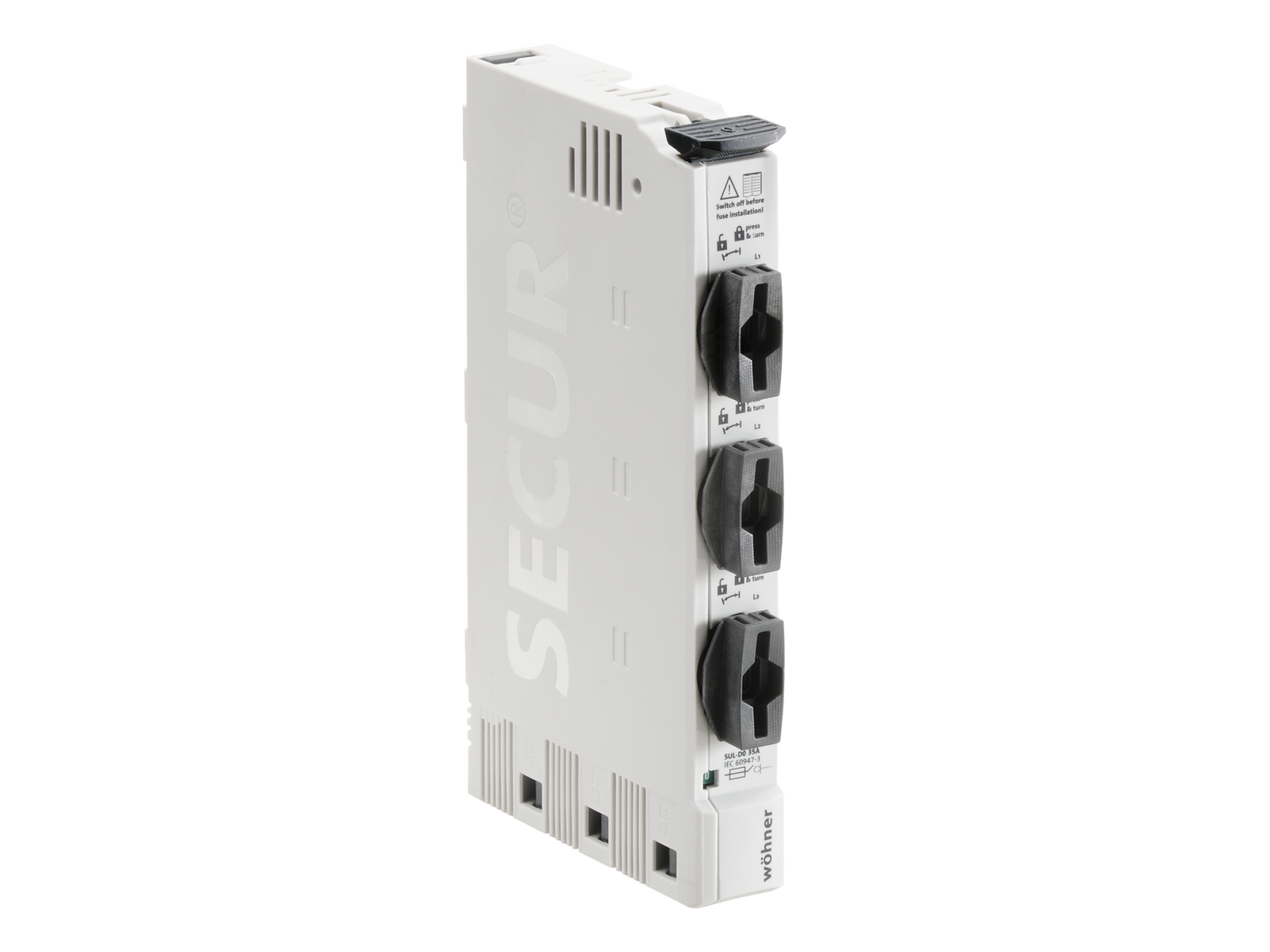

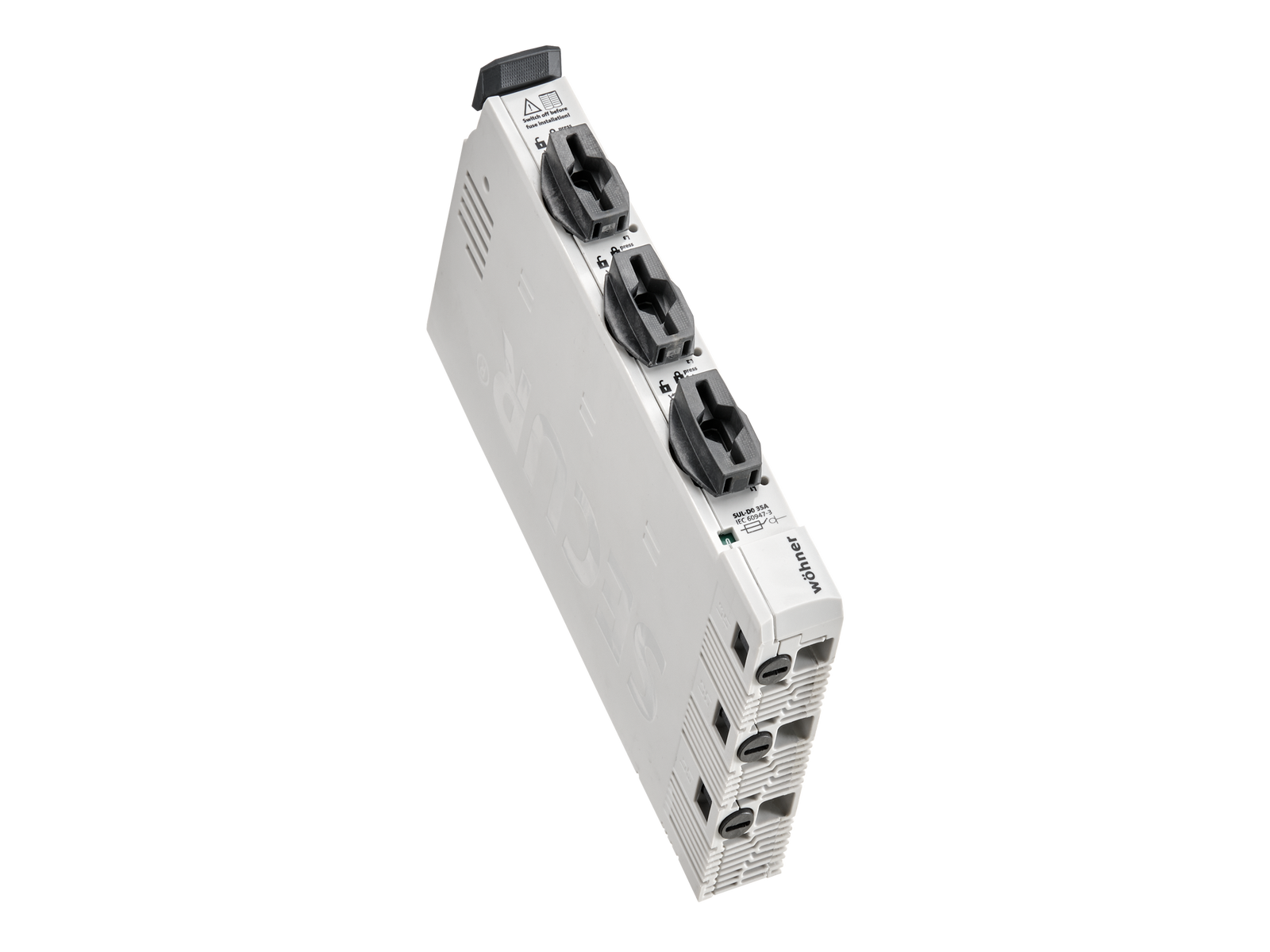

Part No.: 31660 000A
SECUR CrossBoard
pojistkový odpínač
pro pojistky D01 a D02
35 A / 3P
operator independent switching (snap-action mechanism)
připojení zdola
NEW
System
CrossBoard® 125A / 250A, CrossBoard® 800 A
Advantages of the product
spring terminal enables connection without tools (at first installation)
| Produktová skupina | 01 |
| Podskupina | 51 |
| velikost balení | 1 |
| EAN | 4021267316600 |
| ECLASS 14.0 | 27142110 |
| ETIM 5.0 | EC000277 |
| ETIM 8.0 | EC000277 |
| ETIM 10.0 | EC000277 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Schválení dle norem
IEC (CB) , VDE
| pro velikost pojistek: | D0 |
| pojistková vložka podle na standardu: | IEC / HD 60269-3 |
| povolené rozptylování energie pojistkové vložky: | 4 W |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 35 A |
| jmenovité napětí (IEC) AC: | 400 V |
| jmenovité izolační napětí Ui AC: | 500 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400 V) |
| kond. zkratový proud s pojistkami (AC): | 50 kA / 400 V |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 2,4 W.
(The power dissipation at full load would be 3,8 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| max. permitted operation temperature | 45°C |
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanické údaje | |
| Š x V x H: | 22.5 x 184 x 100 |
| hmotnost: | 33,0 kg/100 |
| póly: | 3-pólový |
| čelní stupeň ochrany: | IP30 |
| Terminal points | |
| spring pulley connection | |
| screw drive: | 0.8x4 |
| wire stripping: | 23 mm |
| min. cross-section: | 2,5 mm² |
| max. cross-section: | 16 mm² |
| f: | 2.5 - 16 mm² |
| Not suitable for aluminium cables ! | |
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| povolené rozptylování energie pojistkové vložky: | 4 W |
31976
000A
spínač
NO/NC 250 V AC / 5 A, 30 V DC / 4 A
Více

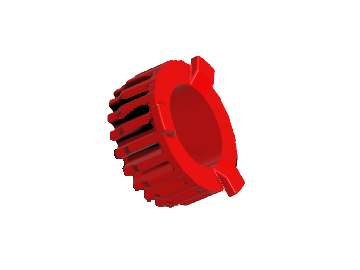

31318
000A
special gauge element 10 A
červená
for fuse links D01
NEW
Více

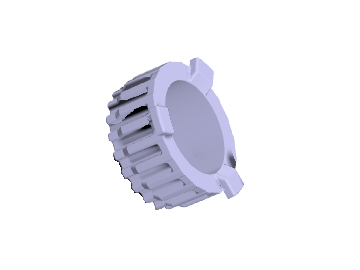

31319
000A
special gauge element 16 A
šedá
for fuse links D01
NEW
Více

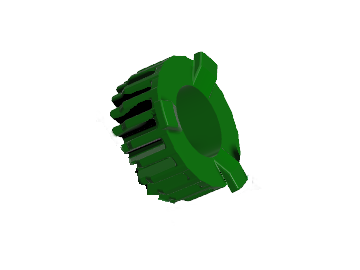

31317
000A
special gauge element 2 - 6 A
zelená
for fuse links D01
NEW
Více

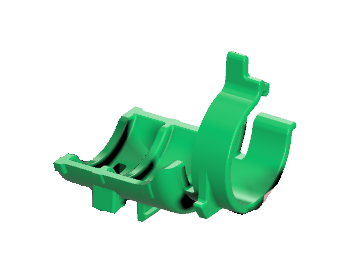

31346
000A
mounting bracket for special gauge element 2 - 16 A
pro: SUL
NEW
Více

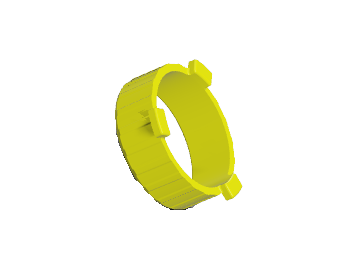

31321
000A
special gauge element 25 A
žlutá
for fuse links D02
NEW
Více

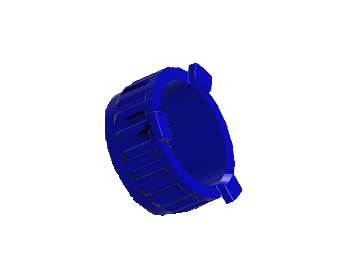

31320
000A
special gauge element 20 A
modrá
for fuse links D02
NEW
Více
01730
000
vymezovací kroužek
D01 - D03
Více
