for UL feeder circuits >250V

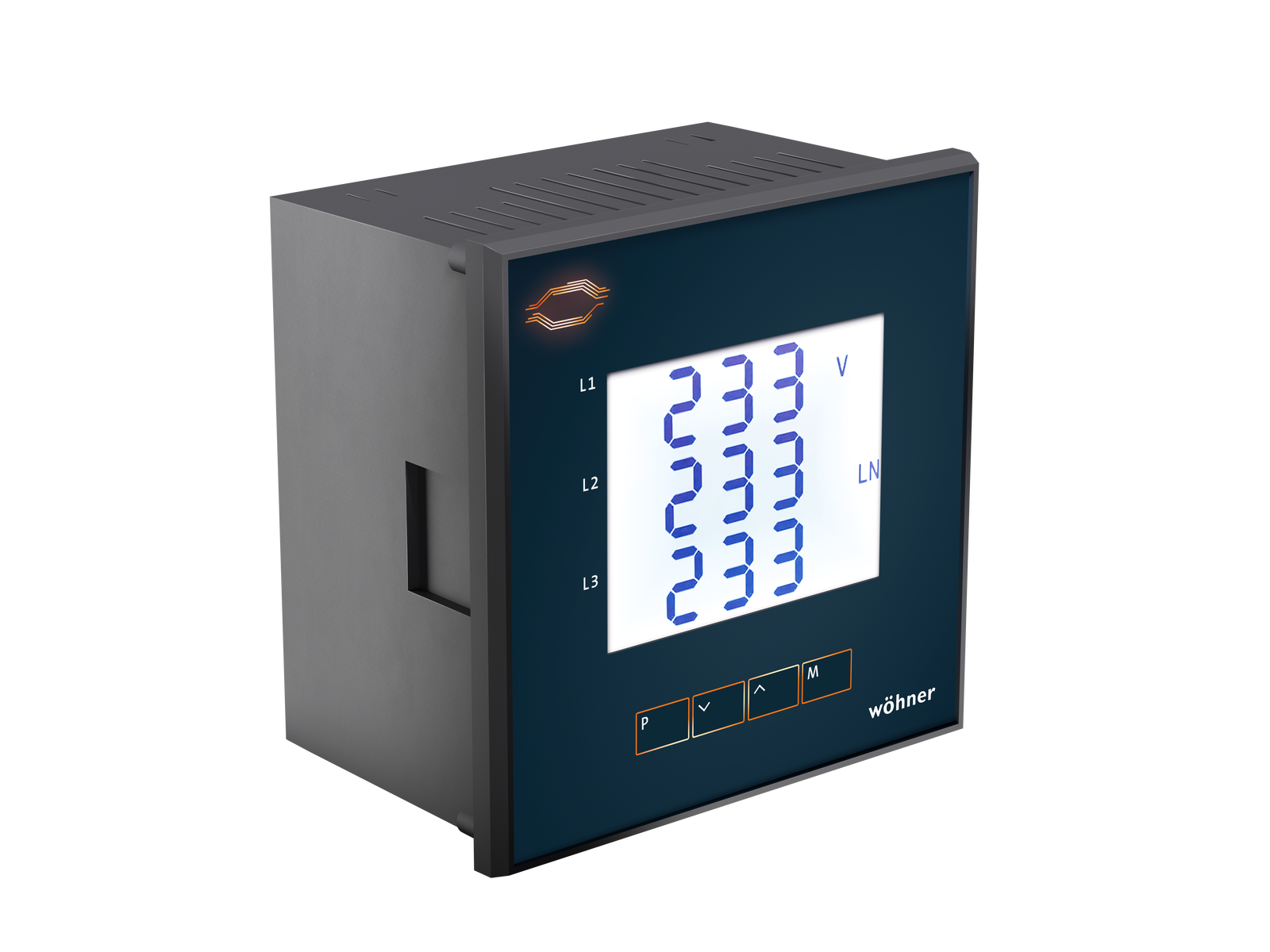

Obrázek může zobrazovat podobný produkt.
Part No.: 37002 000A
MIEZ
Multifunctional measuring device for front panel installation
24 V DC
Measurement of current, voltage, power, energy and derived values
with communication
System
Measurement Technique
| Produktová skupina | 23 |
| Podskupina | 22 |
| velikost balení | 1 |
| EAN | 4021267370022 |
| ECLASS 14.0 | 27200301 |
| ETIM 5.0 | EC000069 |
| ETIM 8.0 | EC000069 |
| ETIM 10.0 | EC000069 |
Standardy
| Detaily IEC | |
| Standardy | |
| Elektrické údaje IEC | |
| jmenovité napětí (IEC) AC: | 24 V |
| min. provozní napětí AC: | 20 V |
| jmenovité napětí (IEC) DC: | 24 V |
| min. provozní napětí DC: | 20 V |
| digital inputs: | 1 |
| digital outputs: | 2 |
| analog inputs: | 0 |
| temperature inputs: | 0 |
| measuring voltage line / line min.: | 8 V |
| measuring voltage line / line max.: | 660 V |
| accuracy class (current): | 0.5 |
| accuracy class (voltage): | 0,5 |
| accuracy class (active power): | 0,5S |
| interface: |
Ethernet
Webserver Modbus TCP |
|
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 2,6 W.
(The power dissipation at full load would be 4,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. povolené napětí (IEC) AC: | 50 V |
| max. povolené napětí (IEC) DC: | 75 V |
| min. permitted operation temperature | -20°C |
| max. permitted operation temperature | 60°C |
| min. permitted temperature for transport and storage | -40°C |
| max. permitted temperature for transport and storage | 80°C |
| Mechanické údaje | |
| Š x V x H: | 96 x 96 x 80 |
| hmotnost: | 20,5 kg/100 |
| stupeň ochrany: | IP20 |
| čelní stupeň ochrany: | IP40 |
| Vlastnosti materiálu | |
| halogen-free: | Yes |
