for UL feeder circuits >250V
Obrázek může zobrazovat podobný produkt.
Part No.: 01075 000

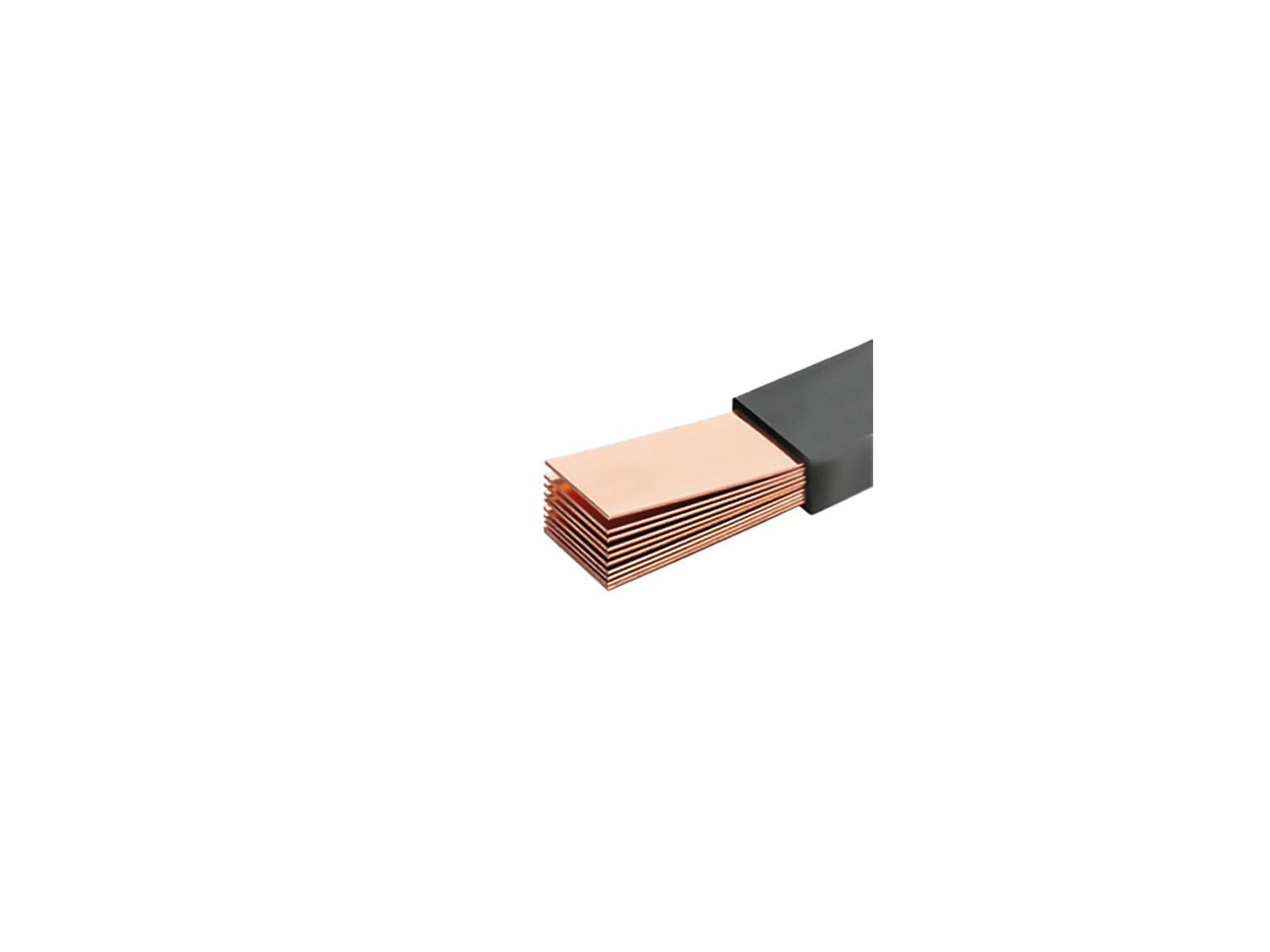

flexibilní měděná přípojnice, ochrana proti korozi, izolovaná
5x 24 x 1
494 A, délka 2 m
Advantages of the product
Tin-plated Cu bars considerably reduce the effort of preparing the contact points.
The Cu busbars are effectively protected against aggressive media.
| Produktová skupina | 06 |
| Podskupina | 81 |
| velikost balení | 1 |
| EAN | 4021267010751 |
| ECLASS 14.0 | 27370303 |
| ETIM 5.0 | EC001522 |
| ETIM 8.0 | EC001522 |
| ETIM 10.0 | EC001522 |
Standardy
IEC 61439-1:2020
UL 758
UL 67
Schválení dle norem
UL
for UL feeder circuits >250V
typové číslo: 5x24x1
EAC Type: LCU
UL file: E197039, UL category (for USA): QEUY2 https://www.ul.com
UL file 2: E481423, UL category+ (for USA): AVLV2 https://www.ul.com
UL file: E197039, UL category (for Canada): QEUY8 https://www.ul.com
CCC schválení: certifikace není vyžadována
| Detaily IEC | |
| Standardy | |
| IEC 61439-1:2020 |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 494 A |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 54,8 W.
(The power dissipation at full load would be 85,7 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| proud při 30 K: | 363 A |
| proud při 40 K: | 433 A |
| proud při 50 K: | 494 A |
| proud při 60 K: | 550 A |
| proud při 70 K: | 600 A |
| Detaily UL | |
| Standardy | |
|
UL 758
UL 67 |
| for UL feeder circuits >250V |
considering the permitted temperature rise at the concrete installation conditions the following capacity could be accepted by UL (file E197039 |
|
| kapacita při 65 K: | 615 A |
| Mechanické údaje | |
| Š x V x H: | 28 x 9 x 2000 |
| hmotnost: | 225,0 kg/100 |
| cross-section: | 120 mm² |
| Vlastnosti materiálu | |
| Ausführung Werkstoff: | verzinnt |
| halogen-free: | Yes |
|
see product description of the used busbar support |
|
capacity depending on the permitted temperature rise of flexible copper busbar without impact of additional heat sources:
|
|
| notice the temperature stability of the insulation of 105 °C take conductors with required cross-section for connection to the products and devices (acc. to relevant standards or manufacturer instructions) |
|
| for UL feeder circuits >250V |
