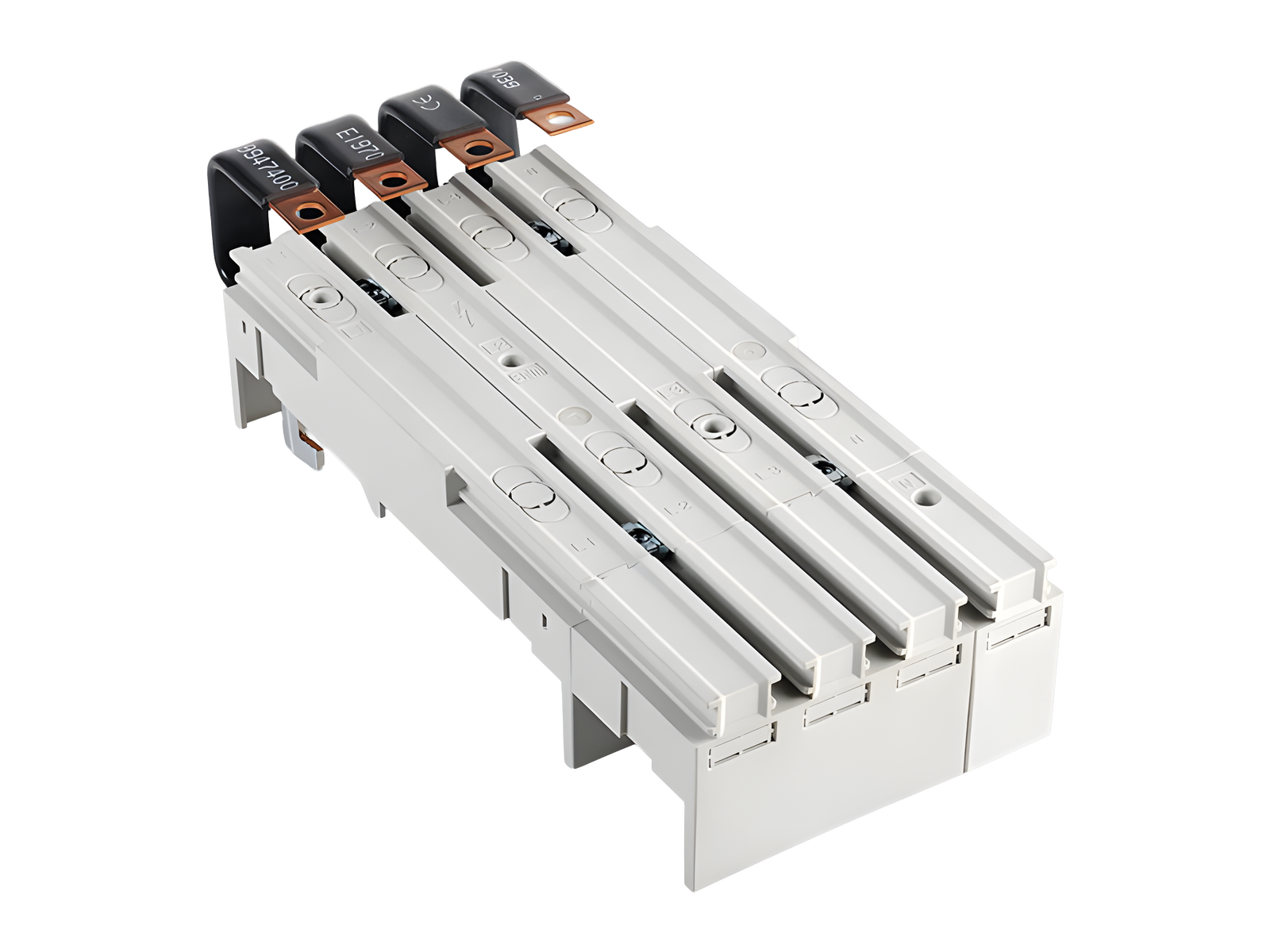

The picture may show a similar product.
订货号 32175 000AC
EQUES®60Classic
母线转接器 160 A，4 极
with laminated copper (bottom), with UL approval
100 x 260
相间距 25 mm
N 在左侧
下端连接至系统
适用于 ABB T1, XT1 / Schneider Electric NSXm160 / Siemens 3VA10, 3VA11
适用母线 12, 15, 20, 25, 30 x 5, 10 和异型母线
系统
60Classic
| 产品组 | 05 |
分组 |
30 |
| 包装件数 | 1 |
| EAN | 4021267321758 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
标准
IEC 61439-1:2020
认证许可
for UL feeder circuits >250V
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 端部供电（IEC）: | 160 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
功率输出:
The power dissipation at a typical load of 80 % results to 11.7 W.
(The power dissipation at full load would be 18.3 W.)
| for UL feeder circuits >250V |
| 机械数值 | |
| 宽 x 高 x 厚: | 100 x 260 x 35 |
| 重量: | 100.8 kg/100 |
| 极数: | 3 极+N |
| 适用母线: | 12, 15, 20, 25, 30 x 5, 10 和异型母线 |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
断路器承载转接器的短路保护 |
|
| for UL feeder circuits >250V |
