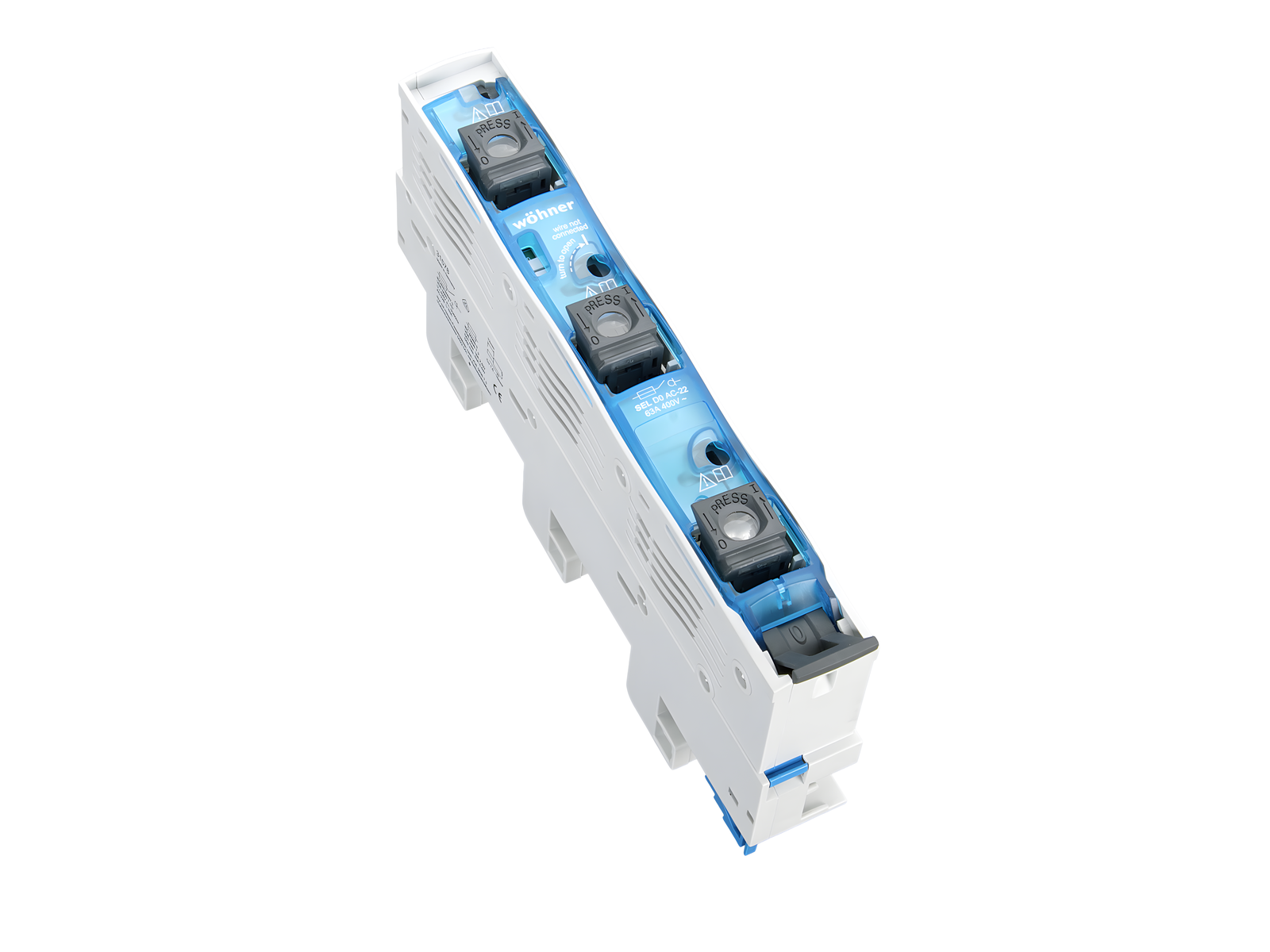

The picture may show a similar product.
订货号 31578000B
SECUR®60Classic EasyLiner
D0 隔离开关熔断器组(母线式安装),适用 5 线母线系统
适用 D01 和 D02 熔断体
E18 / 63 A / 3 极
operator independent switching (snap-action mechanism)
下端接电缆
适用母线 12, 15, 20, 25, 30 x 5, 10 和异型母线
系统
60Classic
产品优势
spring terminal enables connection without tools (at first installation)
产品组 | 01 |
分组 |
42 |
包装件数 | 1 |
EAN | 4021267315788 |
产品手册页码 | 2020 : 3.19 |
ECLASS 6.1 | 27142110 |
ECLASS 7.1 | 27142110 |
ETIM 4.0 | EC000277 |
ETIM 5.0 | EC000277 |
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
认证许可
IEC (CB) , VDE , CCC
型号: SEL
CCC认证: 2014010302710123
for fuse links size: | D0 |
fuse links acc. to standard: | IEC / HD 60269-3 |
所使用熔断器的允许损耗功率: | 5.5 W |
requirements for contact parts: | use fuse links with silver-plated contacts |
Details IEC | |
标准 | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data IEC | |
额定电流(IEC): | 63 A |
额定电压(IEC)AC: | 400 V |
rated frequency (IEC): | 50 / 60 Hz |
rated isolation voltage Ui AC: | 500 V |
额定冲击耐受电压 Uimp: | 6 kV |
使用等级 AC (IEC 60947-3): | AC-22B (400 V) |
带熔断器时的条件额定短路电流: | 50 kA / 400 V |
带熔断器测定的工作等级: | gG |
功率输出:
The power dissipation at a typical load of 80 % results to 4.5 W.
(The power dissipation at full load would be 7.0 W.)
Supplementary data IEC | |
下述参数已经在特定条件下通过测试得到验证。开始设计之前,请联系维纳尔咨询这些条件。 |
符合 IEC 60947-3 的熔断器组合电器,只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时,才允许超过额定工作电压运行。 |
受环境影响的降容系数: 35°C 1.0 45°C 0, 9 55°C 0.8 |
|
适用于熔断器和定位部件, 符合 DIN VDE 0636-3 IEC / HD 60269-3 / HD 60269-3 推荐使用带镀银末端盖的D02熔断器 |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
机械数值 | |
宽 x 高 x 厚: | 27 x 200 x 80 |
重量: | 33.0 kg/100 |
极数: | 3线 |
适用母线: | 12, 15, 20, 25, 30 x 5, 10 和异型母线 |
正面防护等级: | IP20 |
连接端 | |
spring pulley connection | |
screw drive: | PZ2 |
wire stripping: | 12 mm |
min. cross-section: | 1.5 mm² |
最大横截面积: | 16 mm² |
Md min.: | 2.5 Nm |
Md max.: | 3.0 Nm |
Not suitable for aluminium cables ! | |
1.5 - 16 mm²圆多股导线和细密导线不带导线套 |
说明
The devices have to be equipped with D0 gauge rings. Together with reducer part no. 31902 also suitable for fuse links D01.
The use of the side module part no. 31914 is recommended for continuous loads of 35 A or greater.
use of D02 fuse links with silver plated caps is required
can be locked (padlock) in OFF position (O) and sealed in ON position (1)
can not be used in 5-pole busbar systems 250A and 400A of company Hensel.
